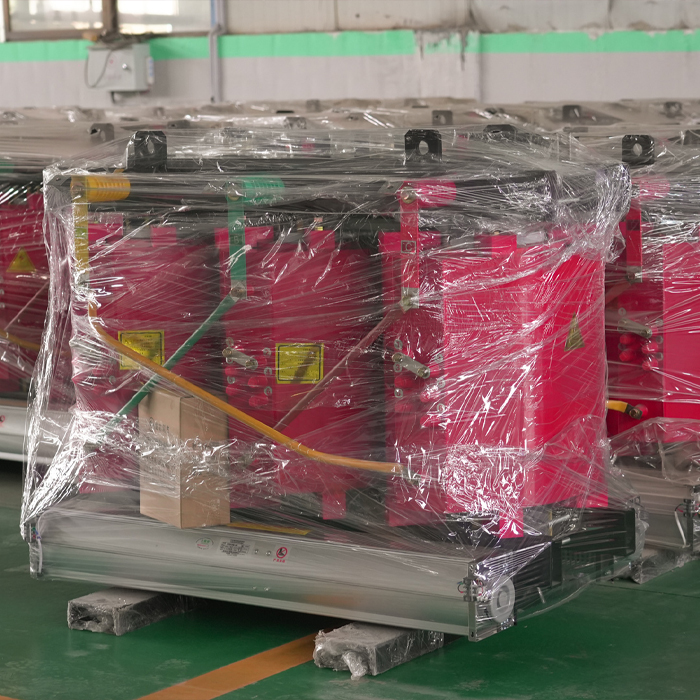

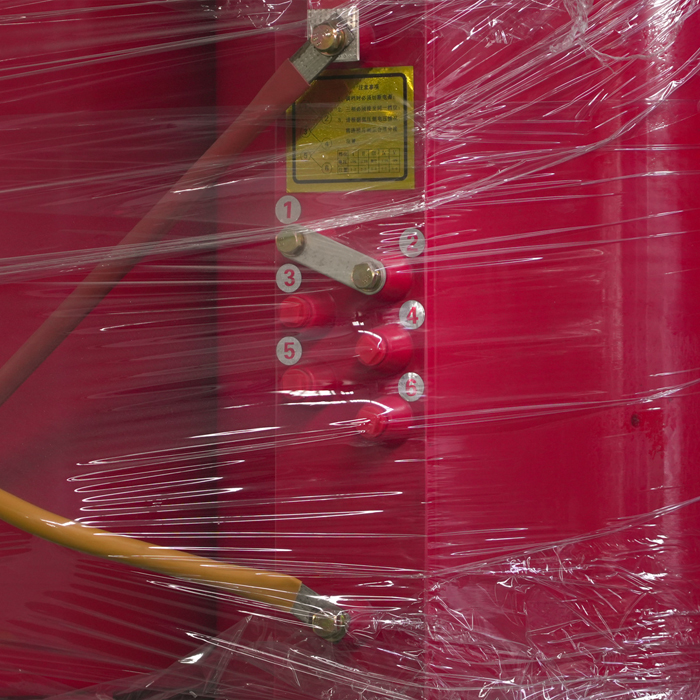

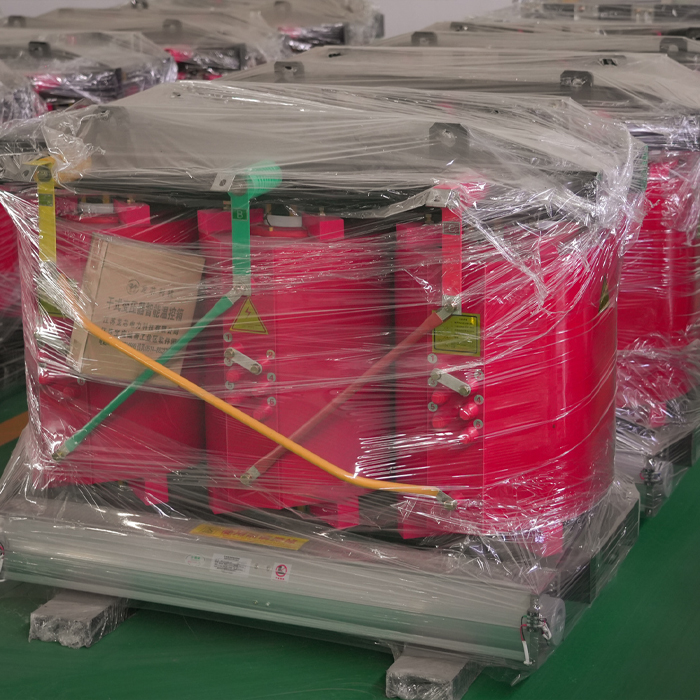

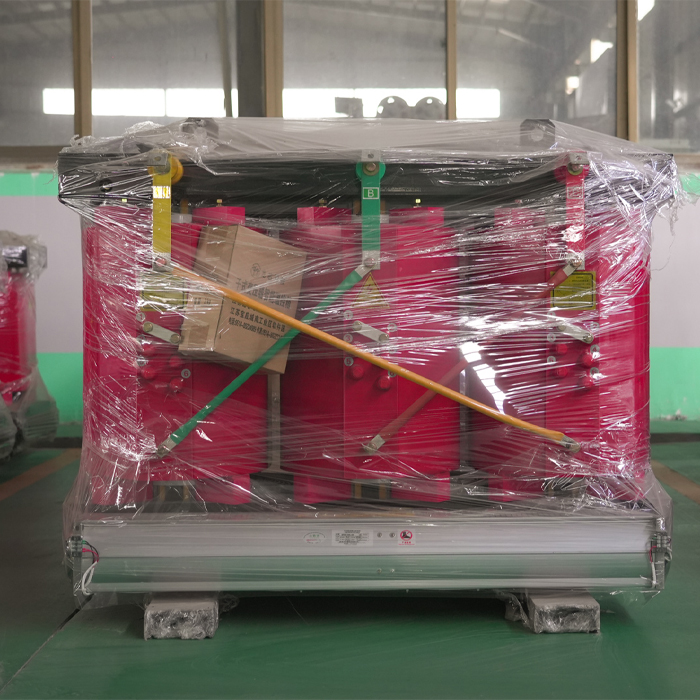

SC(B)11 10.5kv Dry Type Transformer Product Overview and Features
Product Overview
The operating mechanism of a dry-type transformer relies on electromagnetic induction. When alternating current (AC) passes through the primary winding, it generates a varying magnetic field within the transformer core, which then induces voltage in the secondary winding, completing energy transfer between the two circuits. The core, manufactured from high-quality silicon steel laminations, ensures efficient magnetic flux transmission. The windings, made of copper or aluminum, function as the current-carrying components. The epoxy resin or cast resin insulation system provides solid electrical isolation and safety protection, while the enclosure offers structural support and shields all internal parts from environmental influences.

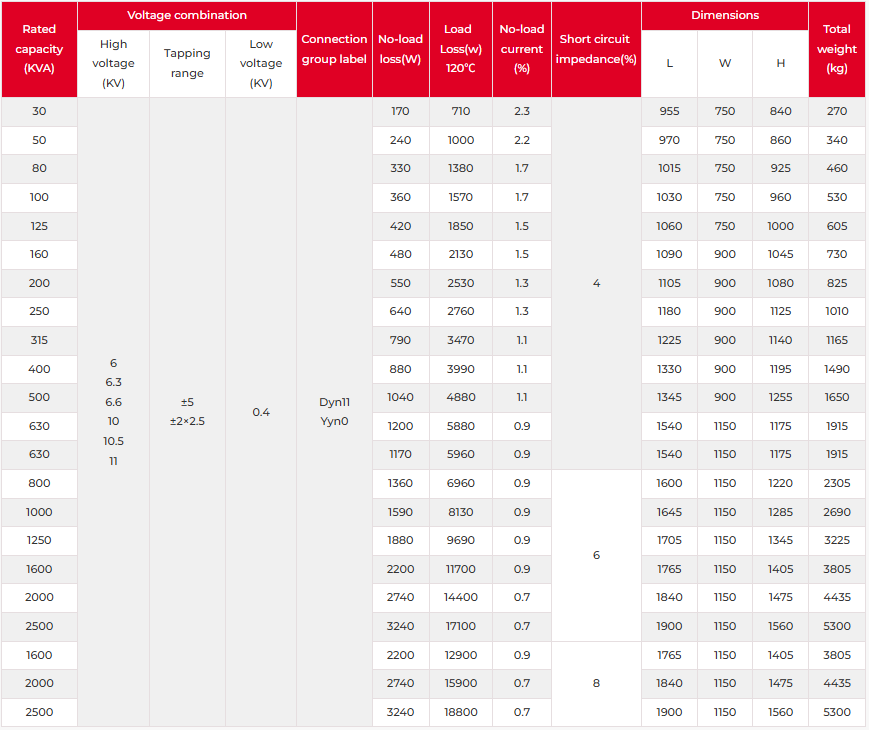

Technical Data

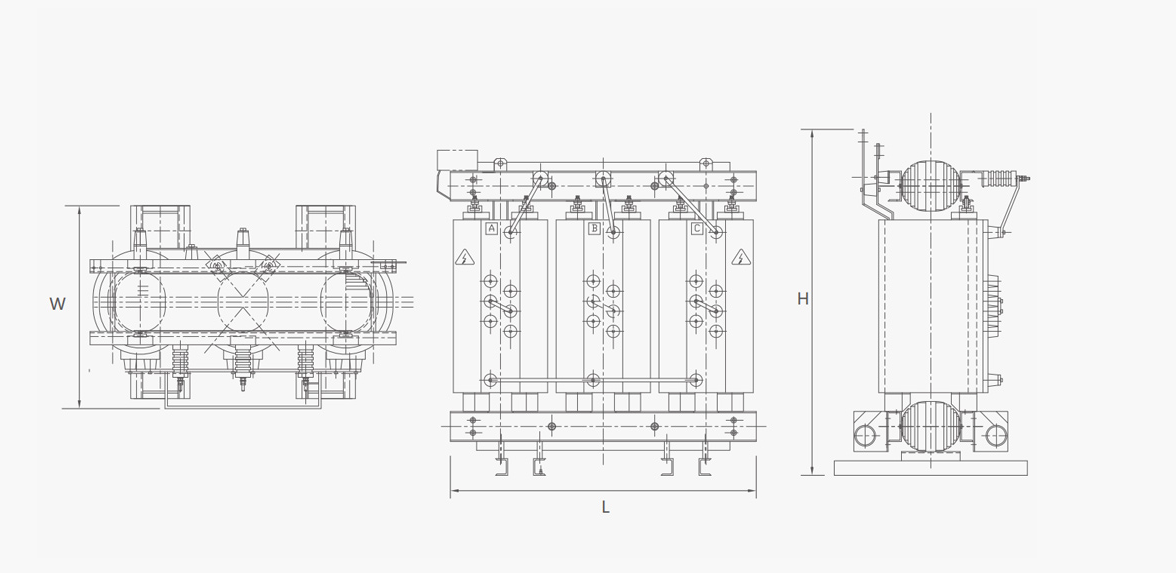

Overall and mounting dimensions(mm)
.png)
Product Advantage
High Insulation Strength: Ensures excellent dielectric performance and operational safety.
Strong Short-Circuit Resistance: Engineered to withstand high electrical and mechanical stress.
Exceptional Disaster Prevention: Offers enhanced protection against fire, moisture, and external hazards.
Excellent Environmental Adaptability: Performs reliably under varying environmental conditions.
Low Loss, High Efficiency: Designed to minimize energy loss and improve overall performance.
Compact and Lightweight: Optimized structure for easy installation and space efficiency.
Low Noise: Quiet operation suitable for residential and commercial environments.
Product Features
Epoxy resin cast dry-type transformers use epoxy resin as a non-flammable, flame-retardant, and self-extinguishing solid insulation medium. Because they operate without oil, they offer clean performance, strong short-circuit capability, low losses, compact size, and quiet operation. These transformers are widely applied in scenarios requiring strict fire and explosion protection. Key advantages include:
Safe and eco-friendly — oil-free, fire-resistant, pollution-free design suitable for direct installation at the load center.
High durability — excellent mechanical strength, strong resistance to short-circuit stress, minimal partial discharge, reliable thermal stability, long service life.
Energy-efficient — low loss and low noise, notable energy-saving performance, maintenance-free operation.
Efficient cooling — good heat dissipation and strong overload capacity; forced air cooling can boost operating capacity.
Moisture tolerance — excellent moisture resistance, capable of working in high humidity and harsh environments.
Smart temperature control — equipped with an intelligent signal temperature monitoring system to track three-phase winding temperatures, control fan operation automatically, and provide alarm and trip functions.
Compact structure — small footprint, lightweight design, reduced installation space and cost.
