Scb10 Series 6.6kv 6.3kv Dry Type Transformer Product Overview and Features
Product Overview

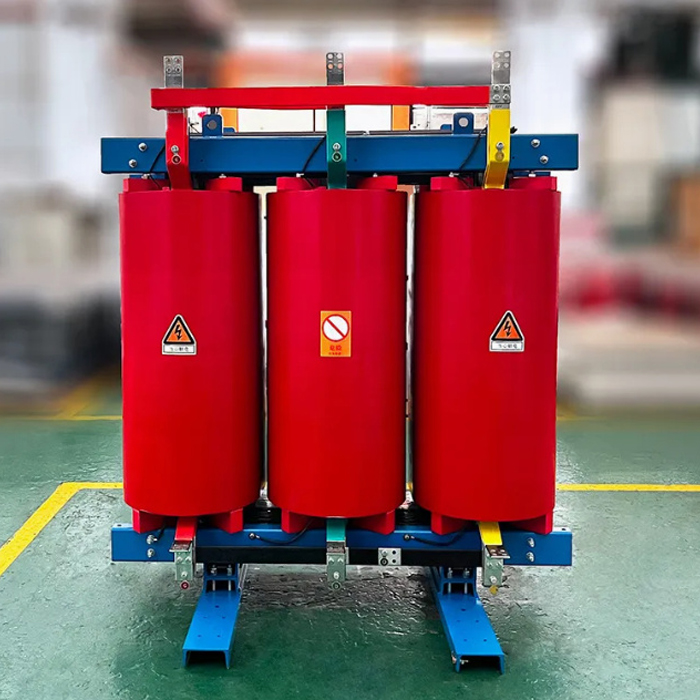

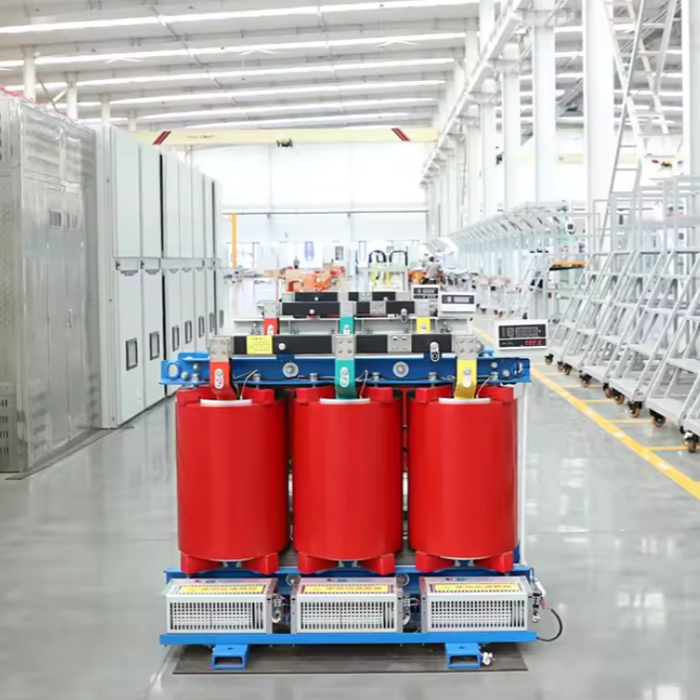

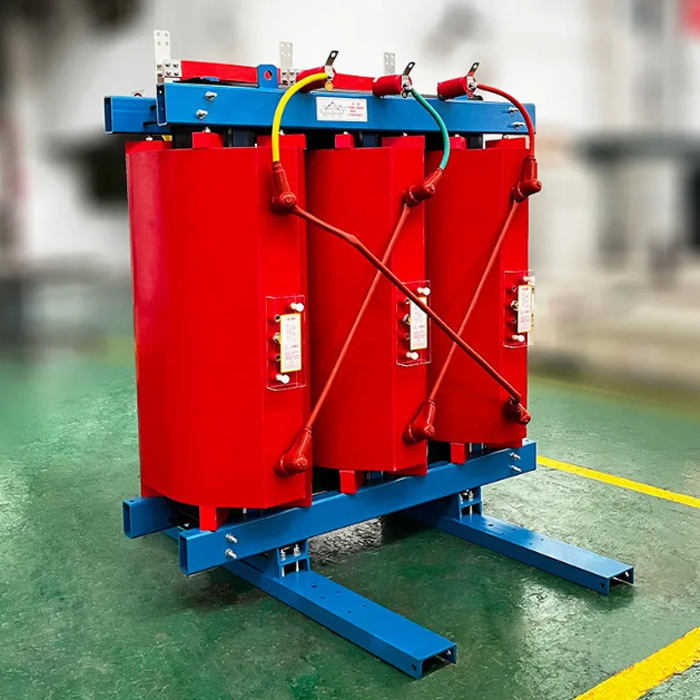

Gnee Electric Scb10 6.6kv 6.3kv dry type transformer meets national advanced standards, verified by users for reliable performance. Manufactured with advanced foreign technology, complete design documents, and stable processes, it ensures consistent quality. Featuring low loss, high energy efficiency, and maintenance-free operation, it offers excellent resistance to short circuit, lightning impact, moisture, dust, and noise. Suitable for high-rise buildings, airports, stations, ports, power plants, and substations, it can be installed close to the load center. Standard units are IP00, with options for IP20 or IP23 enclosures in materials such as steel, stainless steel, or aluminum alloy, and equipped with temperature control displays and load recording meters for safe monitoring.

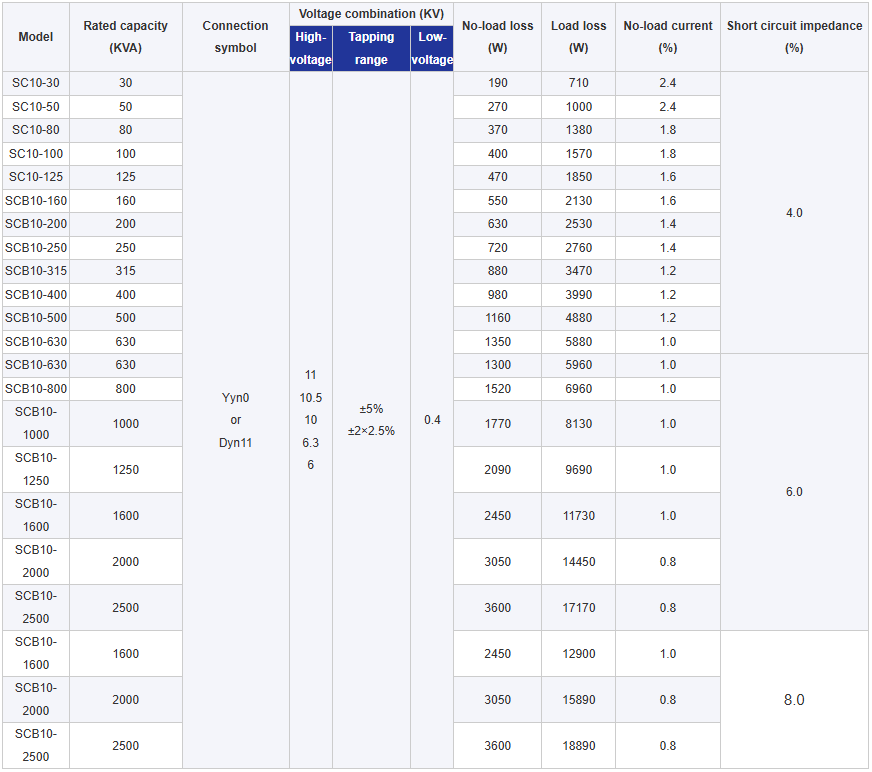

Technical Data
Product Features
• Advanced Insulation & Safety
Cast Resin Dry Type Transformer uses flame-retardant epoxy resin to encapsulate coils, ensuring fireproof, explosion-proof, and pollution-free operation. The self-extinguishing material meets international fire safety requirements.
• High Efficiency & Low Loss
With 45° fully oblique joint cold-rolled silicon steel sheets and optimized core design, no-load loss and noise are minimized. Multi-stage core stacking further lowers no-load current by up to 20%.

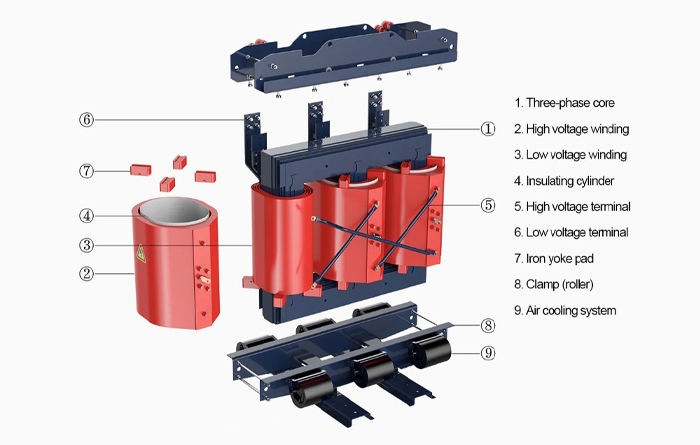

• Robust Construction
The iron core surface is coated with insulating resin paint to resist rust and moisture, while the reinforced mechanical design improves short-circuit endurance and extends service life.
• Smart Temperature Control
Equipped with an intelligent monitoring system featuring over-temperature alarm, trip protection, and RS485 interface, it ensures safe operation even at 150% rated load under forced air cooling.
• Maintenance-Free Operation
Resin insulation eliminates the need for oil, reducing maintenance. It can operate reliably in 100% humidity without pre-drying.

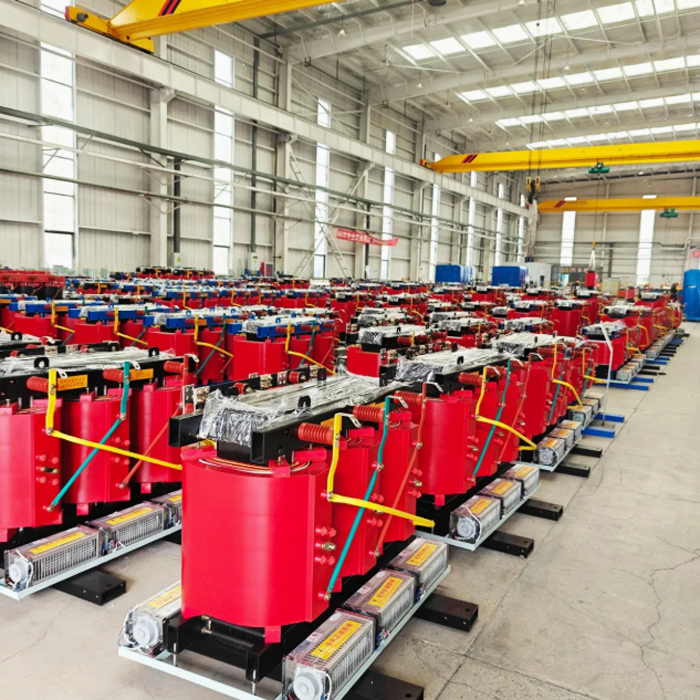

Our Factory
F＆Q
1.Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
2.Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Iran, Vietnam, Indonisia, Singapore, Greece, Netherland, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines, Singapore...
3.Can the products be manufactuered by customer's requirement?
A: Yes, we can design and manufacture as requirement.
4.Visting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Baoding city, Hebei province, China.
5.Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
6.How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it.
