technical parameter
SC(B)11 11kv Dry Type Transformer Product Overview and Features
Product Overview
Dry-type transformers typically come in open type, closed type, and cast type configurations, allowing them to adapt to various installation environments. Among them, the cast winding uses epoxy resin or similar resins to provide the primary insulation. In contrast, the closed winding is housed within an enclosed shell, isolated from the external atmosphere. This structure is mainly applied in mining equipment, where heat dissipation and sealing are less favorable, but the design offers essential explosion-proof performance.
Dry-type transformers are manufactured using high-grade materials such as cold-rolled silicon steel sheets and epoxy resin, which enhance both their insulation capability and mechanical durability. They are also equipped with an intelligent temperature detection and protection system that continuously monitors the operating temperature of the three-phase winding, automatically manages fan start/stop functions, and provides essential safety responses including alarm and trip actions.
Technical Data
Overall and mounting dimensions(mm)
.png)
Product Advantage
High Insulation Strength: Ensures excellent dielectric performance and operational safety.
Strong Short-Circuit Resistance: Engineered to withstand high electrical and mechanical stress.
Exceptional Disaster Prevention: Offers enhanced protection against fire, moisture, and external hazards.
Excellent Environmental Adaptability: Performs reliably under varying environmental conditions.
Low Loss, High Efficiency: Designed to minimize energy loss and improve overall performance.
Compact and Lightweight: Optimized structure for easy installation and space efficiency.
Low Noise: Quiet operation suitable for residential and commercial environments.
Product Features

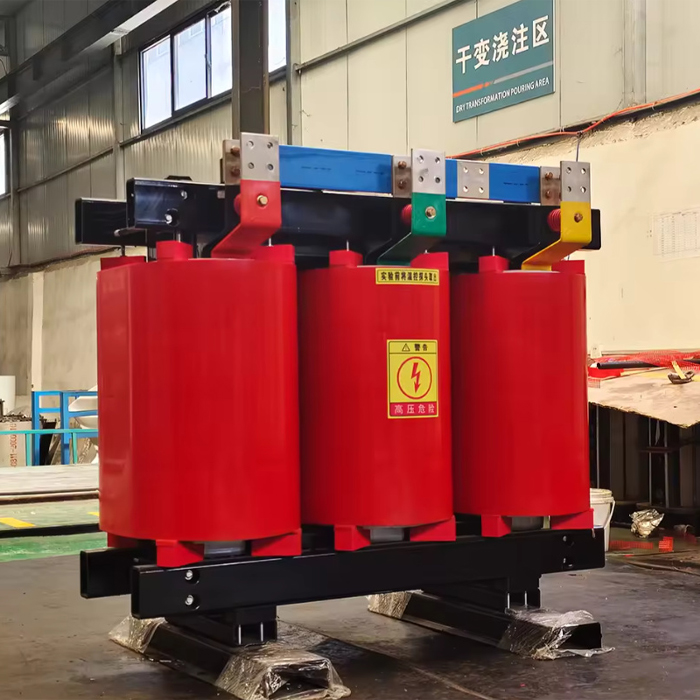

Epoxy resin cast dry-type transformers use epoxy resin as a non-flammable, flame-retardant, and self-extinguishing solid insulation medium. Because they operate without oil, they offer clean performance, strong short-circuit capability, low losses, compact size, and quiet operation. These transformers are widely applied in scenarios requiring strict fire and explosion protection. Key advantages include:
Safe and eco-friendly — oil-free, fire-resistant, pollution-free design suitable for direct installation at the load center.
High durability — excellent mechanical strength, strong resistance to short-circuit stress, minimal partial discharge, reliable thermal stability, long service life.
Energy-efficient — low loss and low noise, notable energy-saving performance, maintenance-free operation.
Efficient cooling — good heat dissipation and strong overload capacity; forced air cooling can boost operating capacity.
Moisture tolerance — excellent moisture resistance, capable of working in high humidity and harsh environments.
Smart temperature control — equipped with an intelligent signal temperature monitoring system to track three-phase winding temperatures, control fan operation automatically, and provide alarm and trip functions.
Compact structure — small footprint, lightweight design, reduced installation space and cost.
Carry

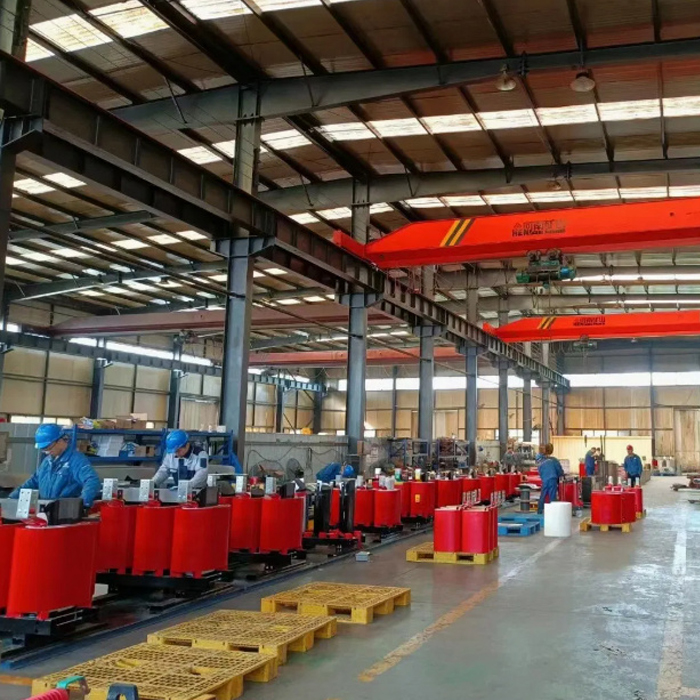

Our Factory
F＆Q
1.Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
2.Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Iran, Vietnam, Indonisia, Singapore, Greece, Netherland, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines, Singapore...
3.Can the products be manufactuered by customer's requirement?
A: Yes, we can design and manufacture as requirement.
4.Visting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Baoding city, Hebei province, China.
5.Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
6.How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it.
About Us
GNEE Electrical Equipment Co., Ltd. was established in 2008 and is located in Anyang City, Henan Province. It is a digital management enterprise integrating power equipment research and development, production, sales and installation. It has more than 200 employees and more than 160 cooperative countries. The company's products cover 6kv, 11kv, 22kv, 35kv, rated capacity 50kva to 5000kva and other power transformers, dry-type transformers, oil-immersed transformers, distribution transformers, box-type substations, and wind power and photovoltaic power generation equipment.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the international power industry.Welcome to your inquiry!
