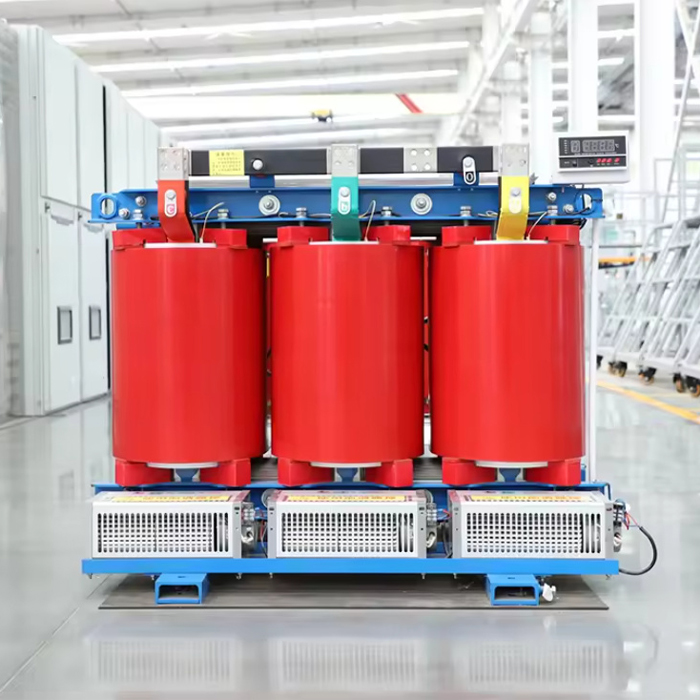

Scb10 Series 10.5kv Dry Type Transformer Product Overview and Features
Product Overview
Our SC(B)10–SC(B)13 epoxy resin insulation dry-type transformers adopt advanced casting technology, premium insulation materials, and strict quality control. They feature outstanding reliability, long service life, and can be customized with different protection levels to fit diverse conditions. With wide application in transmission systems, these transformers are ideal for critical sites such as high-rise complexes, airports, tunnels, commercial centers, chemical facilities, ships, and nuclear power plants.
Technical Data
Product Features
- The coil is fully encapsulated with epoxy resin, making it non-flammable, explosion-proof, pollution-free, compact in size, and suitable for direct installation in the load center.
- Optimized design and advanced casting process ensure low partial discharge, reduced noise, excellent mechanical strength, strong short-circuit resistance, and efficient heat dissipation, allowing up to 50% overload capacity under forced air cooling.
- Integrated intelligent temperature controller provides fault and over-temperature alarms, automatic trip protection, and black box recording. With the RS485 interface, it supports computer connection for centralized monitoring and control.
Advantages of Cast Resin Dry Type Transformer
Cast resin dry type transformers are widely used in industrial and commercial energy distribution, offering multiple benefits compared with oil-filled designs:
- High Efficiency – They deliver excellent energy performance, helping reduce power losses, lower operating expenses, and improve overall profitability.
- Low Maintenance – With no need for oil testing or oil replacement, they require minimal service, saving both labor and cost.
- Enhanced Safety – Free from oil leakage or spill risks, they are ideal for installations with strict safety standards such as hospitals, schools, and public facilities.
- Strong Durability – Designed to endure demanding environments, including moisture and extreme temperatures, they ensure reliable operation and long service life.
- Eco-Friendly – Containing no harmful substances like PCBs and being fully recyclable, they support sustainable development and reduce environmental footprint.
In summary, cast resin dry type transformers combine efficiency, safety, durability, and environmental responsibility, making them a superior alternative to oil-filled units.

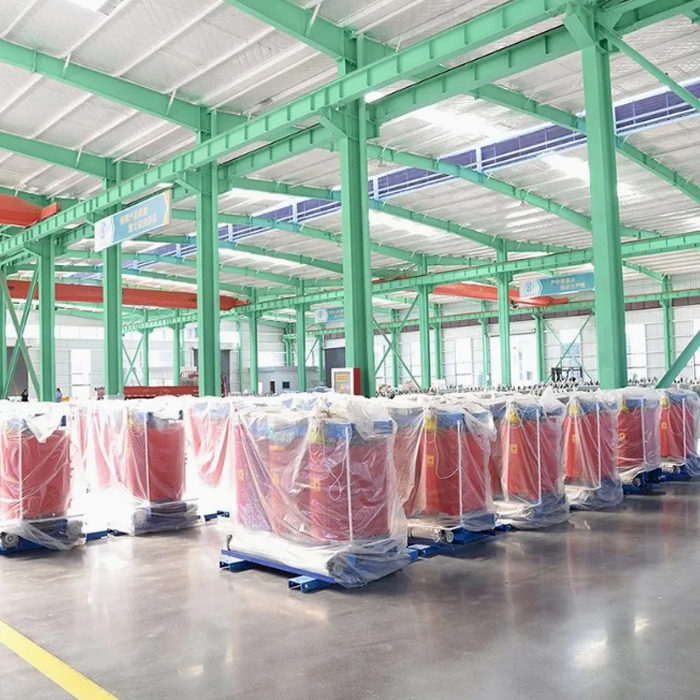

Packaging and transportation
F＆Q
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose Gnee?
Experienced transformer supplier with a professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
