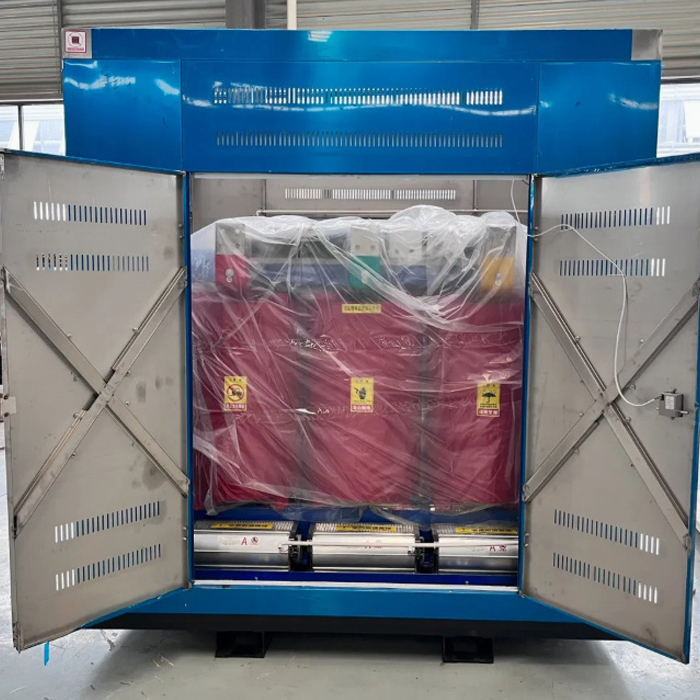

SCB10 11KV Cast Resin Dry type transformer 30-2500kva high performance power transformer from China

application Details

Scb10 Series 11kv Dry Type Power Transformer

SCB10 11kV dry-type transformers are commonly applied in medium-voltage distribution networks, especially in urban power supply systems. With advantages such as oil-free fire resistance, reduced energy loss, and eco-friendly performance, they are ideally suited for installations in high-rise buildings, underground substations, data centers, and other sites with stringent fire safety demands.

Safe, fire-resistant, pollution-free, and installable at load centers.
Maintenance-free, cost-efficient, and easy to install.
Operates reliably under 100% humidity with low loss, low noise, and strong cooling; supports 150% load in forced air cooling.
Advanced temperature protection system ensures safe performance.
LV winding uses copper foil with Class F insulation, resin-sealed ends, and automatic argon arc welding for durability.
Integrated with BWDK thermometer for precise monitoring, alarms, and trip protection.

technical parameter

Scb10 Series 11kv Dry Type Transformer Product Overview and Features

Product Overview

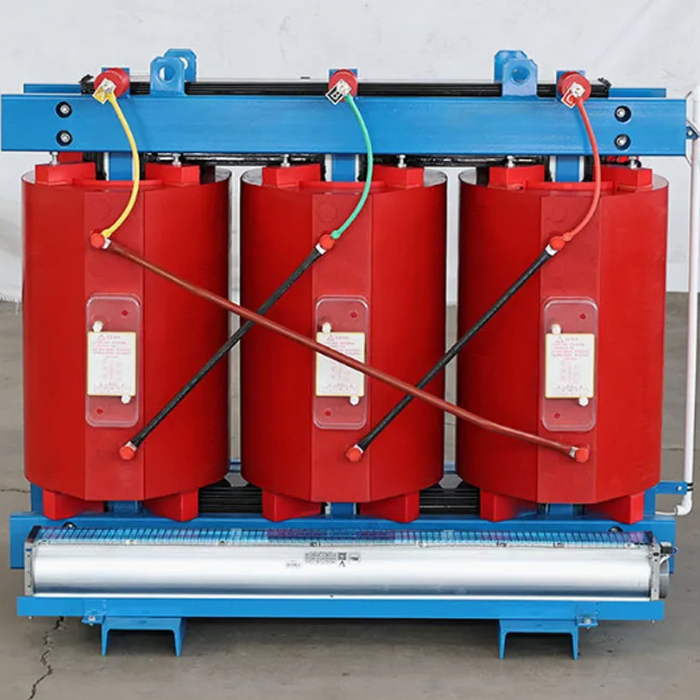

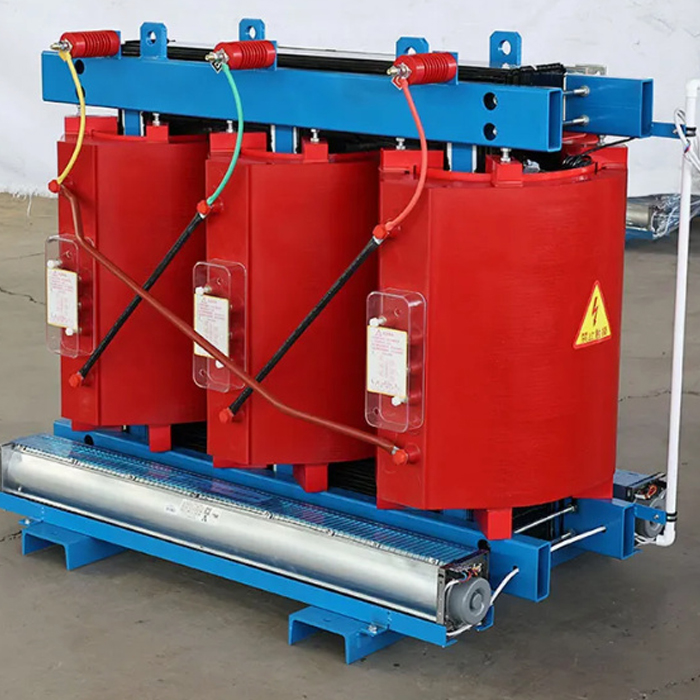

The SCB10 series three-phase dry-type transformer adopts cast resin insulation with resin-encapsulated HV and LV windings. It offers advantages such as low energy loss, environmental protection, strong heat and crack resistance, excellent moisture-proof performance, and high mechanical strength, while requiring minimal maintenance. Widely applied in power systems for high-rise buildings, commercial centers, subways, and airports, it can also be customized to meet specific customer requirements.

Technical Data

Product Features

►Safe, fire-retardant, and pollution-free, suitable for direct installation in load centers.

►Maintenance-free design, simple installation, and low overall operating cost.

►Excellent moisture resistance, ensuring normal operation even under 100% humidity.

►Features low loss, low partial discharge, and low noise, with strong cooling capacity; under forced air cooling, it can operate at 150% rated load.

►Equipped with an advanced temperature protection and control system, ensuring safe transformer operation.

►High reliability, with performance indices reaching internationally advanced levels according to long-term operational data.

►LV winding is manufactured with complete copper foil and Class F turn insulation on specialized winding equipment. This design addresses issues such as short-circuit stress, ampere-turn imbalance, heat dissipation, and unstable manual welding. Coil ends are sealed with resin, cured for moisture-proof and anti-fouling protection, and lead copper bars are joined with automatic argon arc welding.

►Uses BWDK series signal thermometer with embedded elements in the LV coil top, providing automatic temperature detection, display, and functions for over-temperature alarm and trip.

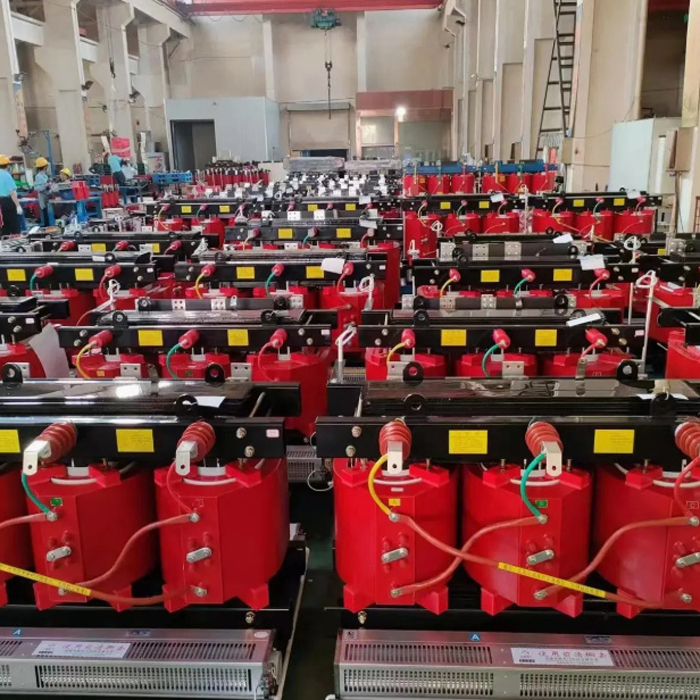

Our Factory

About Us

GNEE Electrical Equipment Co., Ltd. was established in 2008 and is located in Anyang City, Henan Province. It is a digital management enterprise integrating power equipment research and development, production, sales and installation. It has more than 200 employees and more than 160 cooperative countries. The company's products cover 6kv, 11kv, 22kv, 35kv, rated capacity 50kva to 5000kva and other power transformers, dry-type transformers, oil-immersed transformers, distribution transformers, box-type substations, and wind power and photovoltaic power generation equipment.

With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the international power industry.Welcome to your inquiry!
