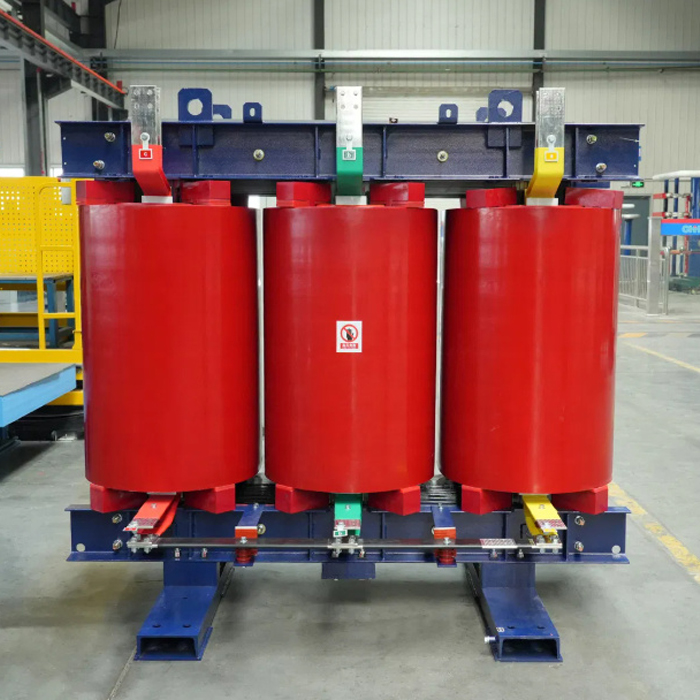

SCB10 6KV Cast Resin Dry type transformer 30-2500kva high performance power transformer from China

application Details

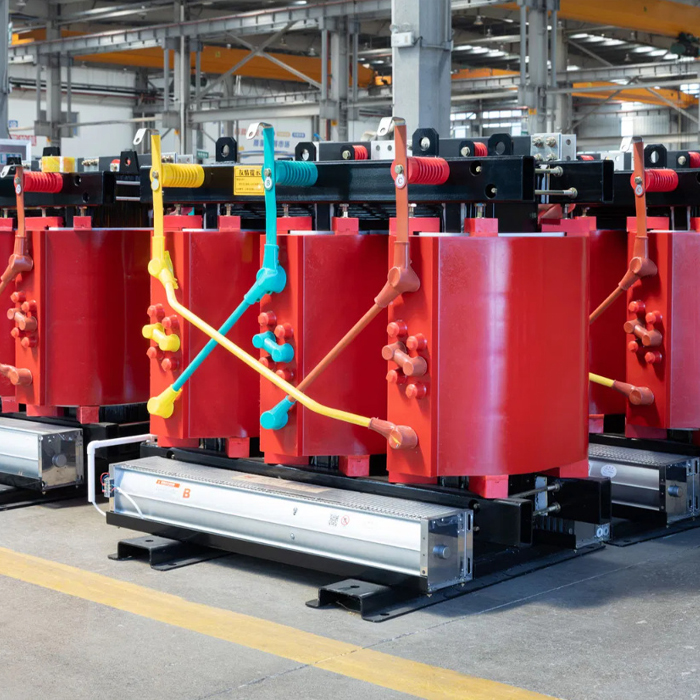

Scb10 Series 6kv Dry Type Power Transformer

Dry type transformers from Gnee Electric achieve advanced performance levels, meeting required standards and showing excellent reliability in practice. With advanced foreign technology, precise designs, and stable production processes, product quality is assured. The SC(B)10 epoxy resin cast dry type transformer delivers low loss, energy efficiency, and maintenance-free use, while offering resistance to short-circuits, lightning, moisture, dust, and noise. Suitable for load centers, it is widely applied in airports, substations, high-rise buildings, and other facilities with strict fire safety needs, especially where inflammable or explosive risks exist.

SC(B) series epoxy resin cast dry transformer uses vacuum casting with reinforced glass fiber for durability.
Delivers crack-free structure, low discharge, and long service life.
Flame-retardant, explosion-proof, and eco-friendly with no toxic emissions.
Strong resistance to short-circuit and lightning.
Compact, lightweight, safe, and maintenance-free, with optional casing and blower fan.

technical parameter

Scb10 Series 6kv Dry Type Transformer Product Overview and Features

Product Overview

Gnee Electric dry type transformers meet national and international standards, with proven reliability and advanced performance. Manufactured with imported technology, accurate design documents, modern equipment, and strict processes, they ensure high-quality results. The SC(B)10 epoxy resin cast dry type transformer, produced under the "dry type power transformer" standard, offers low loss, energy savings, and maintenance-free operation. With strong short-circuit resistance, high lightning impulse strength, moisture, dust, and noise resistance, it is ideal for load centers. These transformers are widely applied in airports, high-rise buildings, stations, substations, power plants, and are especially suited for locations requiring strict fire protection, including inflammable and explosive environments.

Technical Data

Product Features

►The SC(B) series epoxy resin cast dry transformer adopts vacuum casting technology with automatic thin insulating bands.

►Its coil, reinforced by glass fiber and cast with filler epoxy resin under vacuum, ensures structural strength.

►It features excellent mechanical performance, crack resistance, low partial discharge, high reliability, and long lifespan.

►Flame-retardant, explosion-proof, and environmentally friendly with no contamination.

►Even under high temperatures, the resin of the dry transformer does not release harmful or toxic gases.

►It provides strong resistance against short-circuits and lightning impulses.

►Compact size, lightweight design, safe operation, and maintenance-free use.

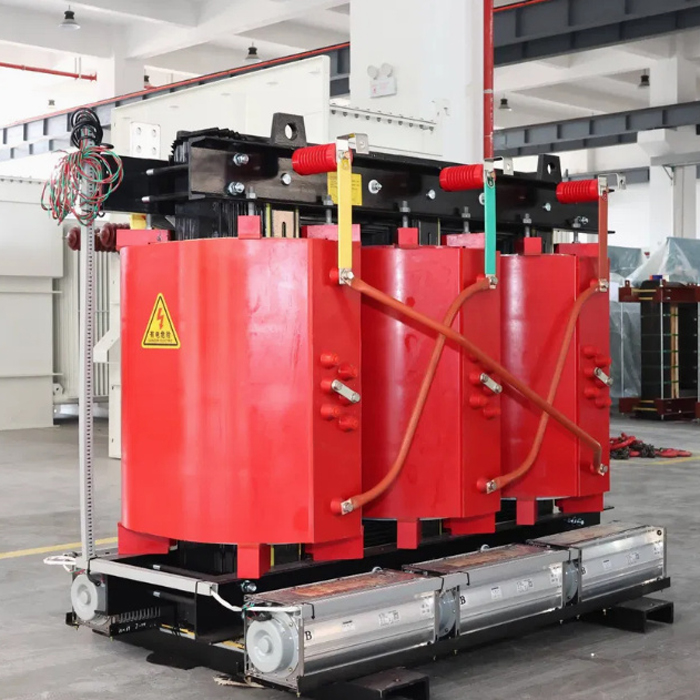

►According to user needs, the transformer can be equipped with a protective casing and blower fan.
