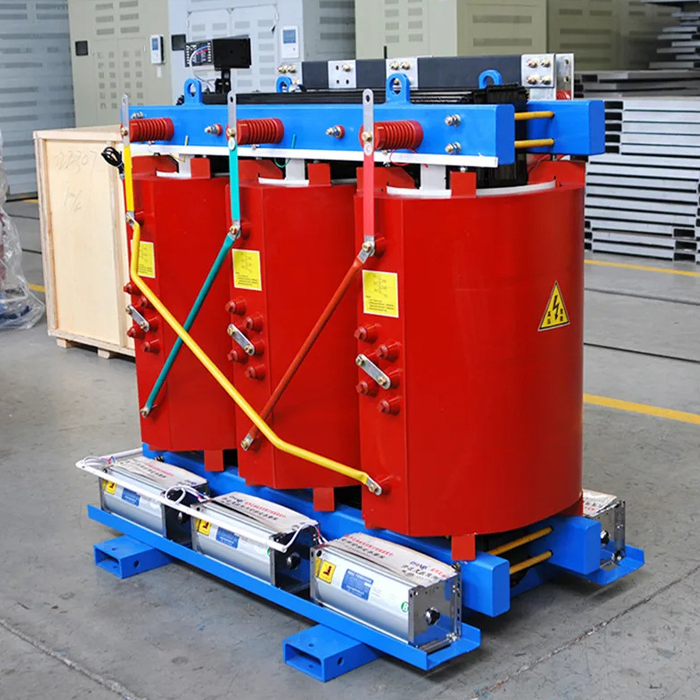

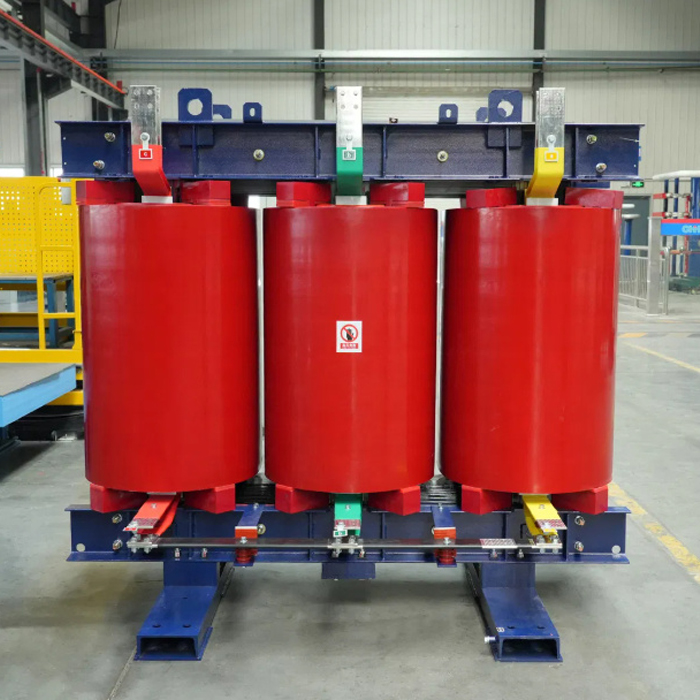

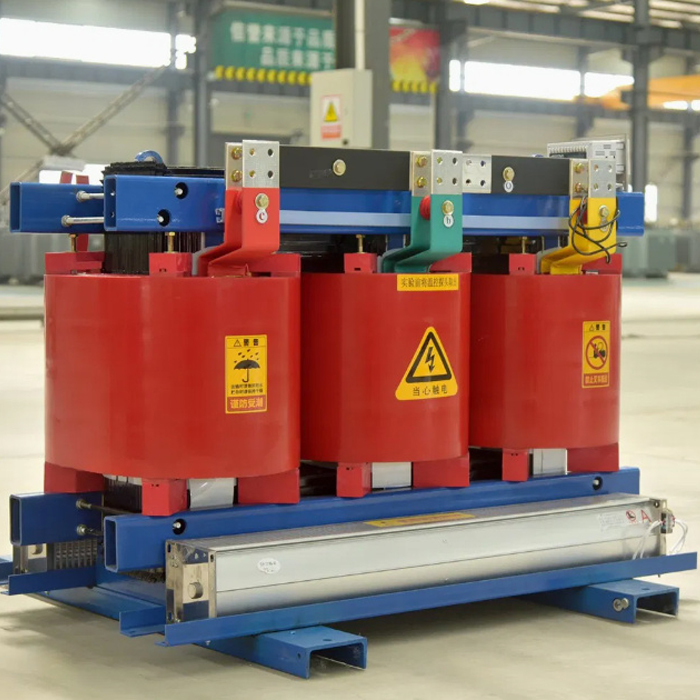

Scb11 Series 6kv Dry Type Transformer Product Overview and Features
Product Overview
The SCB11 power distribution transformer dry type represents a new generation of dry type transformers that emphasizes energy efficiency, dependability, and reduced maintenance. By integrating advanced magnetic core materials and optimized winding technology, it effectively minimizes energy loss, lowering operating expenses and supporting environmental sustainability through decreased carbon output. Additionally, the SCB11 model demonstrates superior overload endurance, maintaining stable performance even under fluctuating loads. Safety is another major strength — the oil-free design removes any risk of leakage or fire hazards, while its built-in overcurrent and overvoltage protection systems enhance operational security. Compact in structure and simple to install, the SCB11 power distribution transformer dry type is an ideal choice for urban installations where space is limited.
Technical Data
Product Features
Low Loss
Compared with the SCB10 model, the SCB11 transformer achieves more than a 20% reduction in no-load loss and over 30% reduction in load loss. This remarkable improvement ensures excellent energy-saving capability, stable economic performance, and completely maintenance-free operation.
Low Noise
The operating noise of the product is 10–15 dB lower than the current industry requirement stated in JB/T10088-2016 — Sound Level of 6–220KV Transformers, providing a quieter and more comfortable operating environment.
Low Partial Discharge
The resin system utilizes two internationally advanced technologies—precision stirring and vacuum thin-film degassing—to ensure complete homogenization and removal of bubbles. This results in an exceptionally low partial discharge level, controlled within 5PC. Both high-voltage and low-voltage coils are vacuum-cast under pressure, producing resin insulation that fully penetrates between turns and layers. The solidified resin body forms a dense, flame-retardant, explosion-resistant, and environmentally safe structure. The glass fiber insulation used in coil windings is self-extinguishing, preventing short-circuit arcs, and the resin remains non-toxic and emission-free under high temperatures.
High Mechanical Strength
The filled resin reduces internal stress and curing shrinkage by balancing thermal expansion differences across materials. Reinforcing elements embedded within the epoxy resin on both inner and outer coil layers form a dense “reinforced-concrete-like” structure. This gives the transformer superior mechanical strength, enabling it to endure electrodynamic stress during sudden short circuits without deformation or failure.
Our Advantages
► Stable & diverse raw material sources
► Long-term cooperation with 600+ global companies
► Serving 8,000+ partners worldwide across shipyards, engineering, and machinery industries
► Proven export experience to 160+ countries
► With an annual export volume exceeding 80,000 tons, Gnee Electric has become a trusted name in the global market.

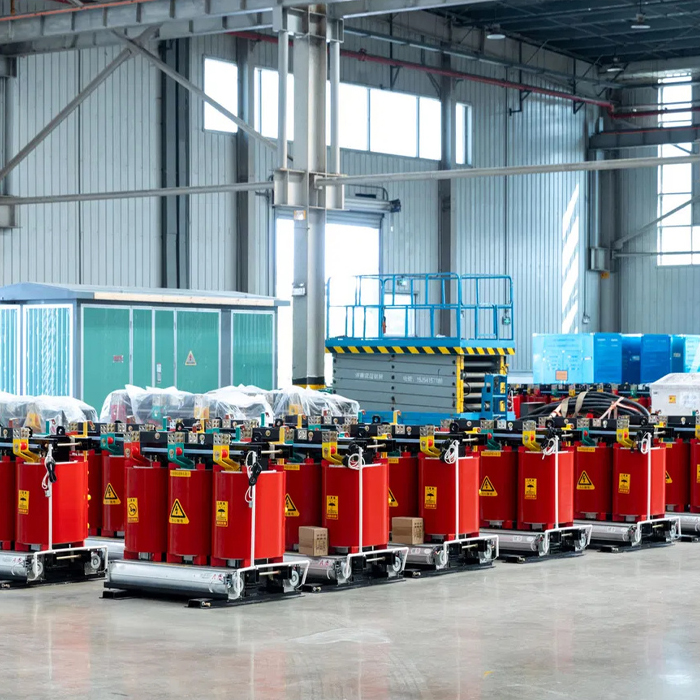

Our Factory
F＆Q
1.Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
2.Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Iran, Vietnam, Indonisia, Singapore, Greece, Netherland, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines, Singapore...
3.Can the products be manufactuered by customer's requirement?
A: Yes, we can design and manufacture as requirement.
4.Visting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Baoding city, Hebei province, China.
5.Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
6.How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it.
