High Magnetic Inductance Silicon Steel

17 Nov 2023
Reading Volume :

High magnetic inductance silicon steel, often referred to as high permeability silicon steel or high induction silicon steel, is a type of electrical steel that is designed to exhibit superior magnetic properties, particularly high magnetic permeability. This type of silicon steel is used in various applications where efficient magnetism and low core losses are crucial. Here are some key points about high magnetic inductance silicon steel:

1. Magnetic Permeability: Magnetic permeability is a measure of how easily a material can be magnetized. High permeability silicon steel has a much higher permeability compared to regular silicon steels. This property allows it to concentrate magnetic flux more effectively, making it ideal for applications where strong magnetic fields are required.

2. Core Losses: Core losses in electrical components are caused by the interaction of the magnetic field with the material. High magnetic inductance silicon steel is designed to minimize core losses, especially hysteresis and eddy current losses. This results in improved energy efficiency in devices like transformers, inductors, and motors.

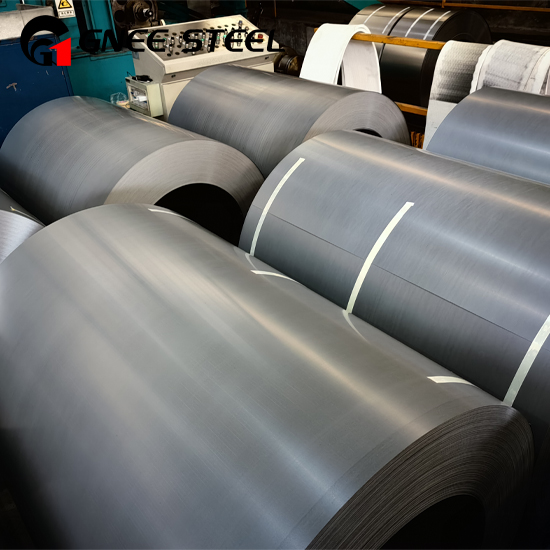

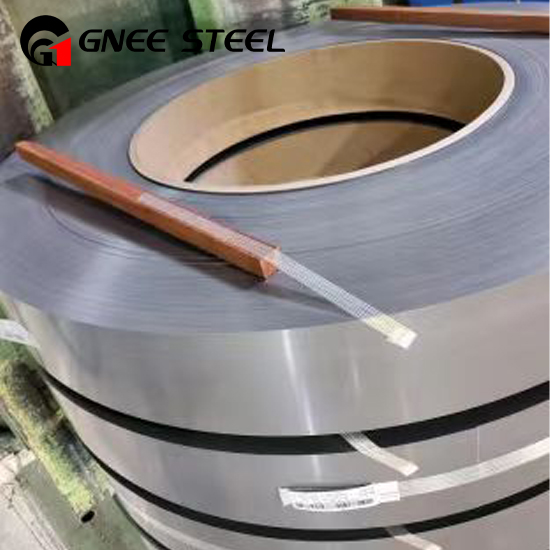

silicon steel coil product display

silicon steelelectrical steel

3. Applications:

  • Transformers: High permeability silicon steel is commonly used in the cores of transformers, particularly those requiring high efficiency and low losses. This can include power transformers, distribution transformers, and instrument transformers.
  • Inductors and Chokes: Inductors and chokes made from high permeability silicon steel can have enhanced inductance and reduced losses, making them suitable for applications requiring precise control of magnetic fields.
  • Sensors: High permeability silicon steel can be used in the construction of magnetic sensors, such as those used in industrial applications for detecting changes in magnetic fields.
  • Magnetic Shielding: Materials with high permeability are also used for magnetic shielding applications, where they help redirect and concentrate magnetic fields away from sensitive equipment.

4. Lamination: Just like other types of electrical steel, high magnetic inductance silicon steel is often produced in laminated sheets to reduce eddy current losses. These laminations insulate individual layers of steel from each other, preventing the formation of large eddy currents.

5. Grain Orientation: The magnetic properties of high permeability silicon steel can be further optimized by controlling the grain orientation of the material during manufacturing. This process, known as grain-oriented electrical steel (GOES), aligns the crystal grains in a specific direction, enhancing the material's magnetic properties.
