Non-oriented silicon steel

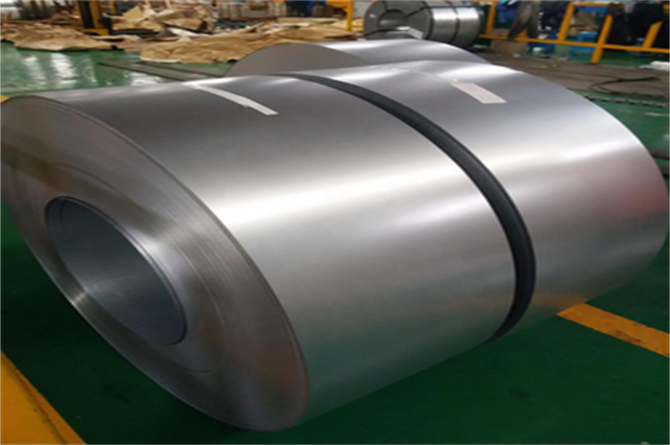

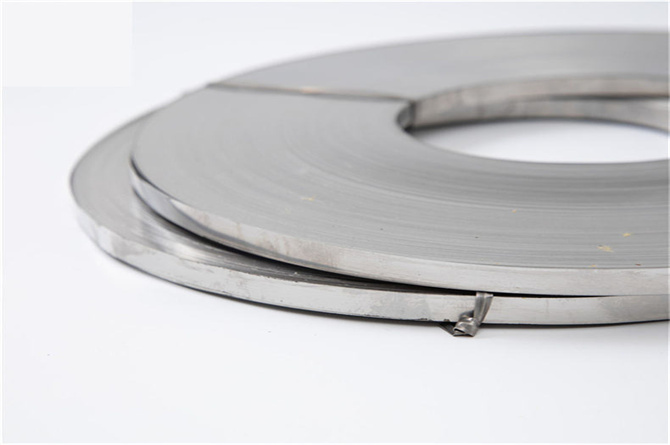

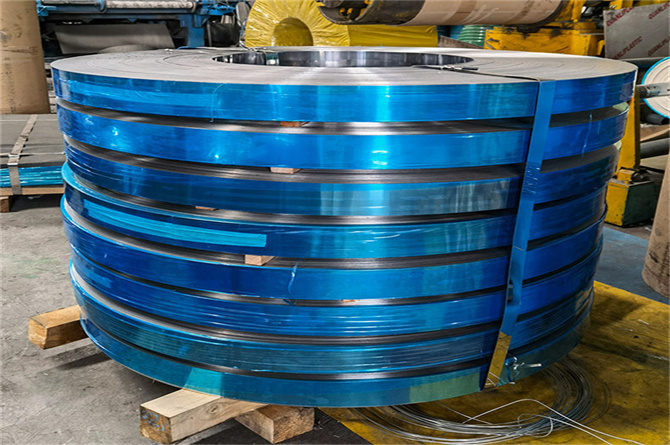

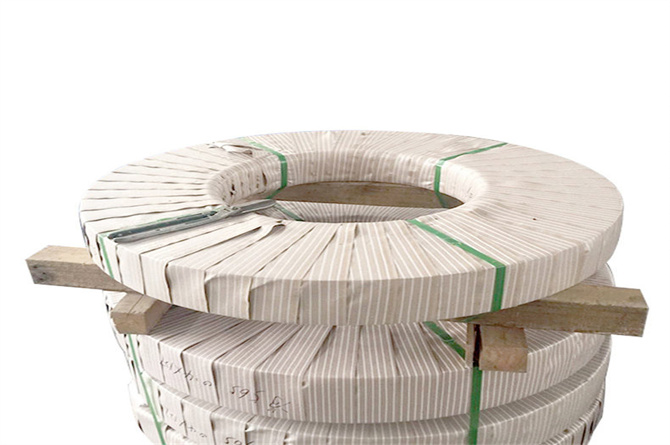

50w470 Non-grain Oriented Silicon Steel Coil
50w470 Non-grain Oriented Silicon Steel Coil
50w470 Non-grain Oriented Silicon Steel Coil
50w470 Non-grain Oriented Silicon Steel Coil
50w470 Non-grain Oriented Silicon Steel Coil
50w470 Non-grain Oriented Silicon Steel Coil
50w470 Non-grain Oriented Silicon Steel Coil
50w470 Non-grain Oriented Silicon Steel Coil
60-second manual response
24 hours free plan
Production quality checks at every level

50w470 Non-grain Oriented Silicon Steel Coil

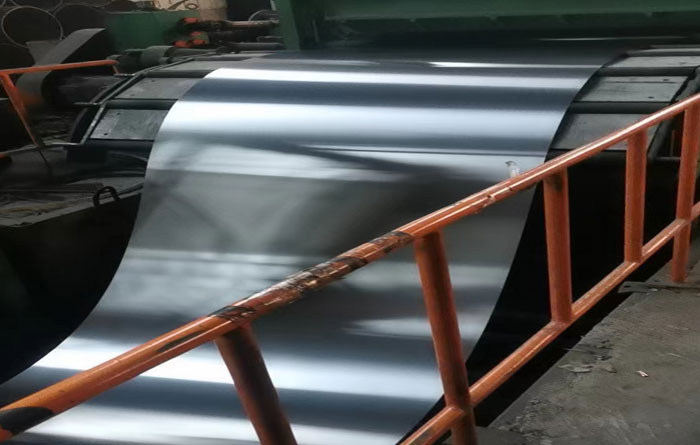

Non-oriented silicon steel sheets are hot-rolled from billets or continuous casting billets to a thickness of about 2.3mm. For the manufacture of low silicon products, the hot rolled strip coil is pickled and cold rolled to a thickness of 0.5mm in one pass.
Thickness
0.23 - 0.3 mm, 0.23-0.3mm
Width
500-2000mm
Product Details
Parameter
Advantage
Service
Message
application Details
Introduction
When manufacturing high silicon products, hot-rolled strip is pickled (or pickled again after normalization at 800-850℃), cold-rolled to 0.55 or 0.37mm thick, annealed at 850℃ in a continuous furnace with mixed hydrogen and nitrogen atmosphere, and then cold-rolled to 0.50 or 0.35mm thick by a small depression rate of 6-10%.
Cold-rolled
Hot Rolled


technical parameter
Technical
Product Name
50w470 Non-grain Oriented Silicon Steel Coil
Standard
AiSi, ASTM, bs, DIN, GB, JIS
Grade
Grain oriented steel
27QG100/27QG110/27Q120/27Q130/27Q140/30QG110/30QG120/30QG130/30Q130/30Q140/30Q150/30QG125/35QG135/35Q135/35Q145/35Q155/35Q165
Non-oriented steel
35W230/35W250/35W270/35W300/35W330/35W360/35W400/35W440/50W230/50W250/50W270/50W290/50W310/50W330/50W350/50W400/50W470/50W540/
50W600/50W700/50W800/50W1000/50W1300/65W600/65W700/65W800/65W1000/65W1300/65W1600
M350-50A/M400-50A/M470-50A/M530-50A/M600-50A/M700-50A/M800-50A/M940-50A/M310-65A/M350-65A/M400-65A/M470-65A/M530-65A/M700-65A/
M800-65A/M1000-65A/M600-100A/M700-100A/M800-100A/M1000-100A/M1300-100A
Type
Oriented Silicon Steel/Non-oriented silicon steel
Technique
Cold Rolled
Thickness
0.27mm - 0.65mm or as required
Width
20-1500mm
Surface Treatment
Coated
Steel shape
Steel Coil Crgos
Coil ID
508/610 mm
Coil weight
3-5tons
Color
Gray


FAQ
1. Q: Are you a factory or a trading company?
A: We are a professional manufacturer, and our company is also a very professional trading company for silicon steel products. We can provide a wide range of silicon steel products.

2. Q: What does your factory do in terms of quality control?
A: We have obtained ISO, CE and other certifications. From materials to products, we check every process to maintain good quality.

3. Q: Can I get samples before I order?
A: Yes, of course you can. Usually our samples are free of charge. We can produce according to your samples or technical drawings.

4. Q: How do you make our business long term and good relationship?
A: We keep good quality and competitive price to ensure our customer's interest; we respect every customer as our friend, we do business sincerely and make friends with them no matter where they come from.

5. Q: What is your delivery time?
A: Our delivery time is about one week, the time depends on the quantity of customers.








our Service
Gnee Silicon Steel Provide
One-stop Service
Message
Get In tTouch With Us Quickly
Related Products
Grain Oriented Silicon Steel Coil
Related Products
Density(kg/dm3) :7.65
Thickness :0.25-0.65mm
WhatsApp :+86-15824687445
Email:sales@gneesteels.com
Payment :T/T LC at sight
Product Origin :China
Type : Non-oriented Silicon Steel
Technique : Cold Rolled
