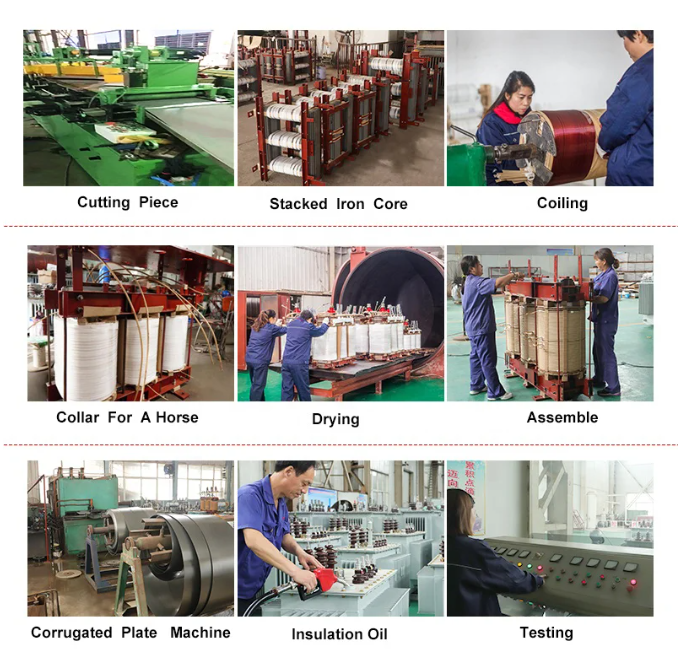

−−Core and coils designed for an optimum Total Ownership Cost (TOC)

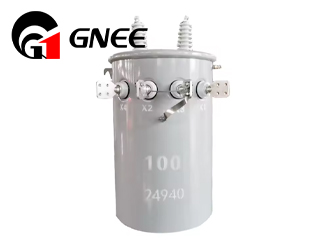

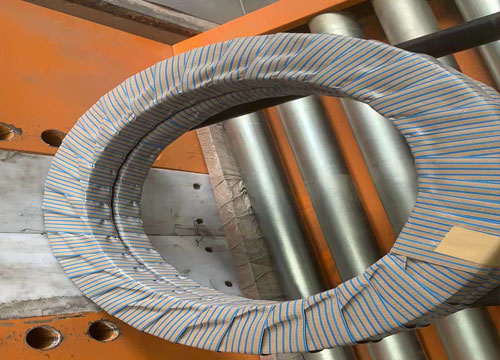

−−Wound core with step-lap joints for increased efficiency and lower noise levels
−−"Low-high-low" windings for increased short circuit strength, efficiency and thermal strength
−−"Low-high-low" windings for increased short circuit strength, efficiency and thermal strength
−−Computer aided design for mechanical & electrical calculations (C.A.D.)
−−Paint system meeting or exceeding the performance of the IEEE C57.12.28 Standard
−−Lifting lugs meeting all of the requirements of the CSA C2.1-06 and CSA C2.2-06 Standard
−−Multiple cover clamps to ensure proper sealing and to mini-mize water retention on the cover edge
−−Cover or sidewall mounted high voltage bushing(s) as required
−−Low voltage spade or clamp type (basket) terminals as required
−−Provision for surge arrester bracket, bracket available as an option
−−Automatic self-resealing pressure relief valve

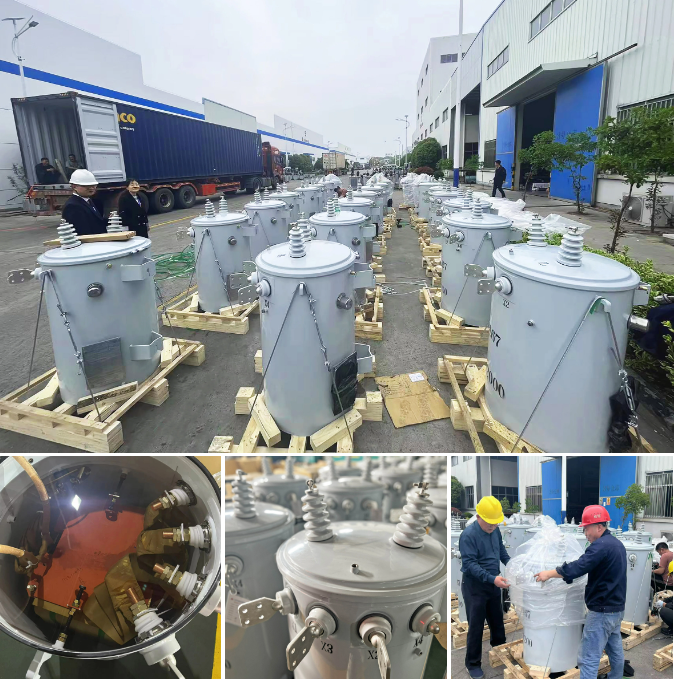

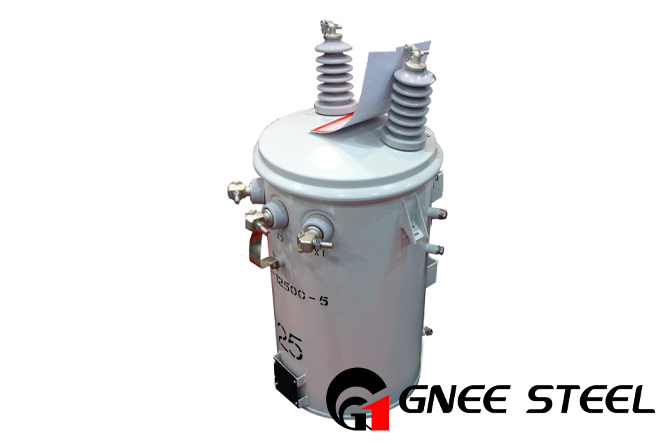

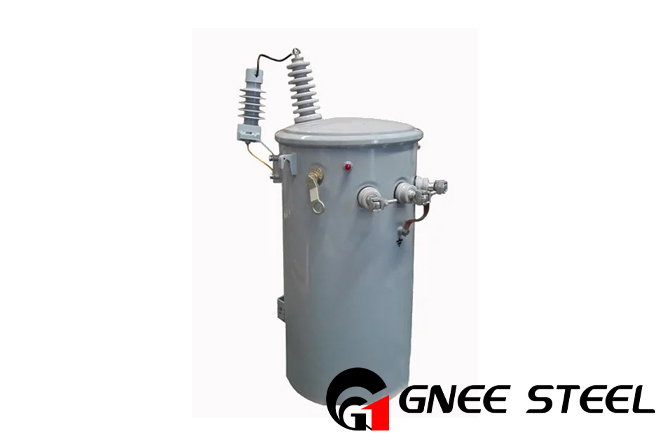

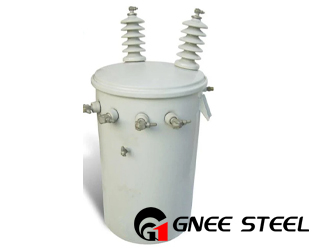

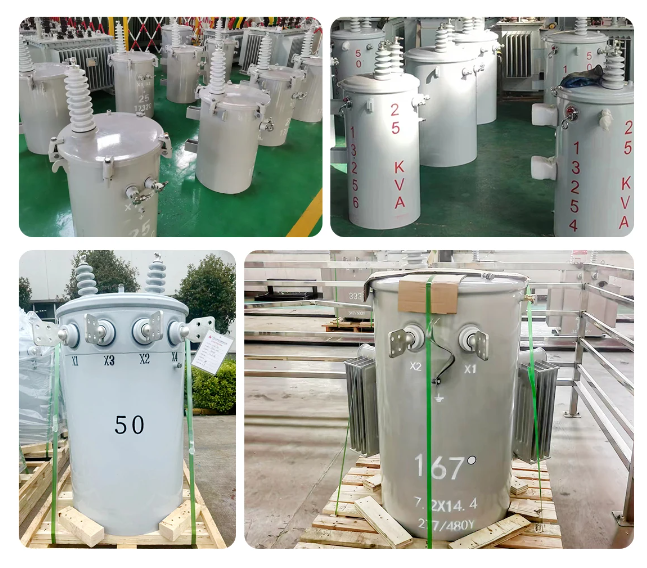

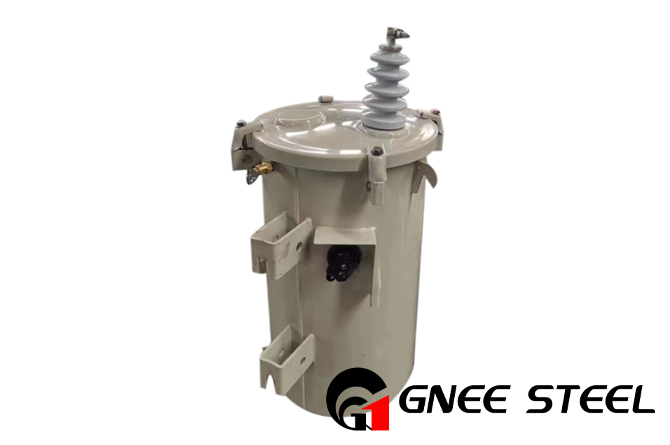

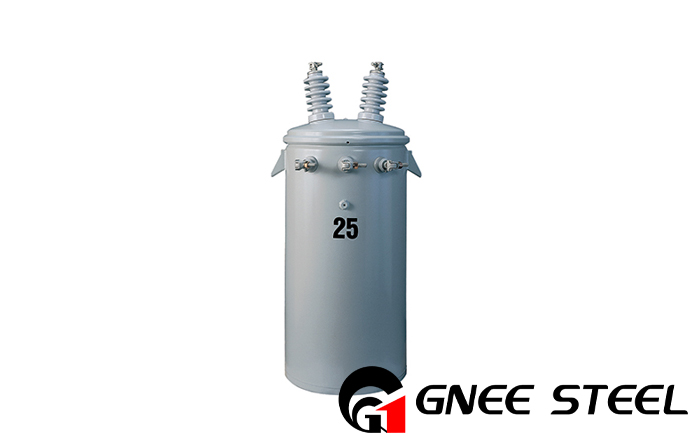

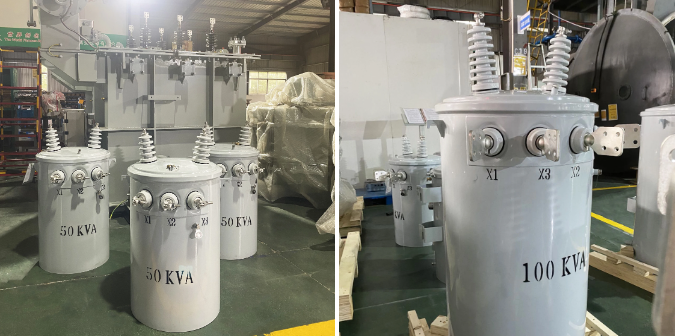

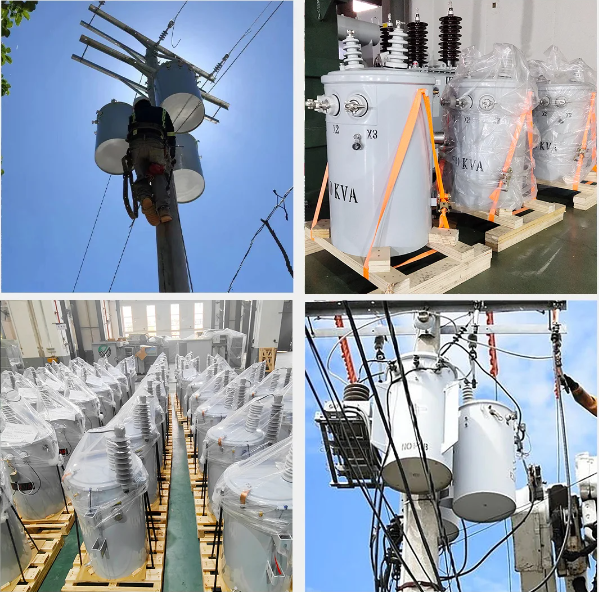

50 kVA pole mounted transformer specifications
| Energy efficiency | ANSI C57.12 |
| Standard | IEEE C57.12.20 |
| Power rating | 50 kVA |
| HV Voltage | 13.8kV |
| LV Voltage | 120/240V |
| HV BIL | 95kV |
| LV BIL | 30kV |
| Length | 610mm |
| Width | 710mm |
| Height |
1000mm |
| No load loss | 160W |
| On load loss | 520W |
| Total loss | 680W |
| Frequency | 60Hz |
| Vectorgroup | Ii6 |
| Color | Grey |
| Tank & Accessories | 185kg |
| Oil weight | 75kg |
| Total weight | 320kg |
| Impedance | 2.40% |
| HV LV winding | ALUMINUM |
