As a professional power transformer manufacturer based in China, GNEE (Henan Gnee Electric Equipment Co., Ltd.) takes pride in engineering mission-critical energy solutions for markets worldwide. Our facility, equipped with advanced coil winding centers, vacuum oil-filling stations, and full-scale testing laboratories, enables us to consistently deliver transformers that meet the most demanding international standards.
Recently, we successfully shipped 5 units of 2500kVA oil-immersed transformers to a major infrastructure client in India, reinforcing our strong export partnership and the growing global trust in our manufacturing capabilities. This shipment highlights our ability to handle high-capacity, fully customizable orders while keeping lead times competitive and quality uncompromised.
.png)

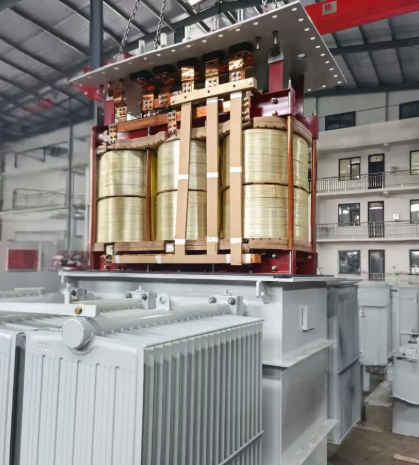

Assembly of a 2500kVA oil-immersed transformer in GNEE’s high-voltage production hall
India’s rapid industrial expansion and power grid modernization have created a sustained demand for medium-to-large distribution transformers. The 2500kVA oil-immersed transformer has emerged as a cornerstone of this growth, serving as an efficient step-down unit in 11 kV, 22 kV, and 33 kV distribution networks. It feeds power to manufacturing plants, commercial complexes, metro rail auxiliary systems, and renewable energy substations. Oil-immersed designs remain the preferred choice in India due to their superior cooling performance in high ambient temperatures, long service life, and cost-effective maintenance cycles.
What makes the 2500kVA oil-immersed transformer particularly attractive for Indian projects is its ability to handle frequent load fluctuations without compromising insulation life. When mineral oil is combined with hermetically sealed tank construction or conservator-type breathing systems, the transformer achieves excellent moisture and oxidation resistance — an essential requirement for the tropical climates of states like Maharashtra, Gujarat, Tamil Nadu, and Rajasthan. Our client, a private EPC contractor, selected GNEE’s 2500kVA oil-immersed units specifically because we demonstrated documented reliability in similar hot and humid environments across Southeast Asia and Africa.
Indian electricity boards and private utilities generally require compliance with IS 2026 and IEC 60076 standards. GNEE’s design team coordinates closely with project consultants to finalize voltage ratios, vector groups (typically Dyn11 for distribution), and impedance values that align with the local grid code. For this shipment, the 2500kVA oil transformer units were configured with an HV tap changer range of ±5% (in steps of 2.5%) to accommodate voltage fluctuations, a standard expectation in Indian industrial zones.
The following table presents the main technical parameters of the 5 units of 2500kVA oil-immersed transformers prepared for our Indian customer. All design data reflect a balanced optimization between energy efficiency and mechanical robustness.
| Parameter | Specification |
|---|---|
| Rated Capacity | 2500 kVA |
| High Voltage (HV) | 11 kV / 22 kV / 33 kV (custom per order) |
| Low Voltage (LV) | 0.415 kV |
| Frequency | 50 Hz |
| Cooling Method | ONAN (Oil Natural Air Natural) |
| Vector Group | Dyn11 |
| Impedance Voltage | 6.0% @ 75°C |
| Tapping Range | ±5% in 2.5% steps (off-circuit or OLTC) |
| Insulation Level | LI 75 kV – HV / LI 20 kV – LV |
| Maximum Temperature Rise | Oil: 60K, Winding: 65K |
| Insulating Oil | Mineral oil, IEC 60296, class I |
| No-load Loss | ≤ 2.5 kW (low-loss core) |
| Load Loss | ≤ 15.5 kW @ 75°C |
| Winding Material | Electrolytic copper |
| Core Material | High-permeability grain-oriented silicon steel |
| Enclosure Protection | IP44 (Indoor) / IP55 (Outdoor) |
| Transformer Weight (with oil) | Approx. 6,200 kg |
Each 2500kVA oil-immersed transformer was fully filled with purified insulating oil and subjected to 24-hour leakage and pressure tests before being drained for transport. Test reports including no-load current, vector group verification, winding resistance, and induced overvoltage withstand were compiled into individual quality dossiers, handed over with the shipment.
Producing a reliable 2500kVA oil transformer begins with core lamination and winding precision. At our 30,000 m² production base in Anyang, Henan Province, we operate CNC core cutting lines that process high-grade silicon steel sheets with minimal burr and deviation. Our skilled technicians prefer step-lap core stacking, which reduces no-load losses and audible noise — an important factor for transformers installed near residential or commercial areas.
The coils for each 2500kVA oil-immersed transformer are wound on automatic foil and wire winding machines with digital tension control. For LV windings, we use copper foil conductors that deliver better current distribution and short-circuit withstand strength. HV windings utilize high-grade enameled copper wire, layer-by-layer insulated with thermally upgraded kraft paper. To ensure cooling oil flows efficiently, vertical and horizontal cooling ducts are integrated between layers. Every winding undergoes inter-turn impulse testing before being assembled on the core limb.
The transformer tank is constructed from structural-grade steel plates, reinforced with radial and longitudinal ribs for mechanical strength during lifting and transport to India. After welding, the tank undergoes a leak-proof pressure test at double the normal operating pressure. Surface preparation includes shot blasting to SA 2.5, followed by a zinc-rich epoxy primer and weather-resistant polyurethane topcoat. This coating system guarantees long-term corrosion resistance, even in the coastal and high-humidity regions of India where salt-laden air is a challenge.
Quality control is not a final checkpoint; it is embedded throughout the manufacturing journey of each 2500kVA oil-immersed transformer. Our in-house laboratory, accredited under ISO 9001:2015, performs all Type, Routine, and Special tests in accordance with IEC 60076. For this Indian order, the customer’s third-party inspector witnessed the following critical tests:
Ratio measurement at every tap position
Winding resistance measurement
No-load loss and current test
Load loss and impedance voltage measurement
Induced overvoltage withstand test (partial discharge monitoring)
Separate source voltage withstand test
Oil dielectric strength and dissolved gas analysis (DGA)
Additionally, a 2500kVA oil transformer from this batch was randomly selected for a full temperature rise test to demonstrate compliance with the 60K oil and 65K winding limits. Thermal imaging was used to confirm uniform heat distribution across the radiators and bushing turrets. By exceeding the minimum testing requirements, we give Indian power project developers the confidence to deploy our units in critical feeders without hesitation.
Logistics for heavy-capacity transformers demands meticulous planning. The 5 units of 2500kVA oil-immersed transformers were each sealed in a reinforced wooden crate with desiccant bags to prevent moisture ingress during sea transit. Sensitive accessories — such as Buchholz relay, winding temperature indicator, silica gel breather, and bushings — were packed separately in shock-proof cartons and consolidated within the main case. All drain valves and pipe openings were capped and secured.
.png)

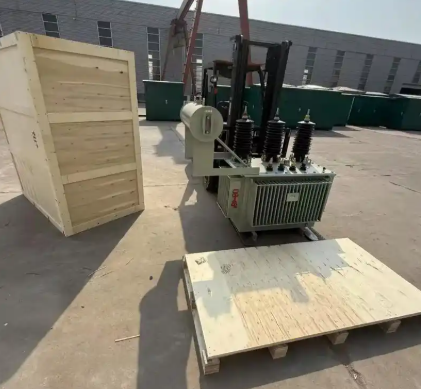

Oil transformer securely packed in wood crate being loaded into a container
We coordinated with an experienced freight forwarder specializing in breakbulk and containerized shipments of electrical machinery. The consignment traveled from our factory to the Shanghai port, and then via maritime container to Nhava Sheva, India. Shipping documentation, including the packing list, commercial invoice, FORM AI/COO, and test certificates, was carefully prepared to ensure smooth customs clearance. The entire door-to-port delivery cycle was completed within the contractual timeline, and we maintain real-time client communication updates.
A 2500kVA oil-immersed transformer finds its place across multiple segments of India’s growing energy landscape. Understanding these applications helps prospective clients evaluate whether this capacity meets their project’s design criteria.
Large manufacturing units — cement plants, textile mills, steel processing lines, and chemical facilities — typically demand multiple 2500kVA oil transformer units to step down utility voltage to 415V for motor control centers and lighting loads. The robust overload capacity of oil-immersed designs allows short-time surge handling when heavy machinery starts.
Hospitals, university campuses, IT parks, and shopping malls across Bengaluru, Hyderabad, Pune, and Delhi NCR deploy 2500kVA oil-immersed transformers in outdoor main receiving substations. The reliable ONAN cooling and low fire risk due to mineral oil with high flash point make them suitable for such high-footfall environments when installed with appropriate fire barriers.
India’s aggressive renewable energy targets are driving installations of 2500kVA oil-immersed transformers as intermediary step-up or step-down units in solar parks and wind clusters. They connect multiple inverter or turbine feeders to a medium-voltage collection grid. GNEE has already supplied oil-immersed units for several photovoltaic projects where high efficiency at part-load conditions is a crucial economic factor.
With international logistics and quality demands becoming more complex, selecting the right manufacturing partner for 2500kVA oil-immersed transformers can determine the success of a power project. GNEE offers clear differentiators rooted in experience, transparency, and engineering depth.
Manufacturer-direct engagement: Every inquiry is handled by our engineering sales team, not a middleman. We provide direct access to test reports, production photos, and factory acceptance test invitations.
Custom engineering: Whether your project requires a specific impedance value, OLTC integration, or transformer monitoring (temperature controller, DGA), we configure each 2500kVA oil transformer to your exact specifications.
Global compliance portfolio: We have shipped transformers that comply with IEC, ANSI, and various national standards to over 50 countries. For India, familiarity with IS 2026 and state utility approval processes speeds up project acceptance.
After-sales service: GNEE maintains a network of service engineers and spare parts warehouses, enabling quick response to commissioning support and warranty inquiries in the South Asia region.
Our repeat orders from Indian EPC companies and industrial end-users are a testament to the reliability and cost-effectiveness of our 2500kVA oil-immersed transformer range.
The successful shipment of 5 units of 2500kVA oil-immersed transformers to India is more than a logistics milestone — it is proof that GNEE’s factory consistently meets the high expectations of one of the world’s fastest-growing power markets. From engineering to packaging, every step is executed with precision so that your project stays on schedule and within budget.
If you are planning a substation expansion, an industrial power upgrade, or a renewable energy interconnection, take advantage of our current production slots. Let our team provide you with a detailed, no-obligation quotation for your next 2500kVA oil-immersed transformer order.
