“How much does a 1600kVA oil-immersed transformer cost per unit?” is the most frequently asked question by global engineering contractors, grid purchasers and industrial & mining clients.
To be honest, there is no one-size-fits-all answer to this question. Even for units with the same rated capacity of 1600kVA, slight differences in winding material, core grade, protection configuration and certification standards can lead to price differences of more than 100%. The most common pitfall for inexperienced purchasers is focusing only on the total price without checking the configuration — either opting for low-cost units that use counterfeit materials, resulting in frequent failures within 2-3 years of operation, or blindly choosing high-end models and wasting budget on redundant features that are never used.
Based on the 2026 international power equipment market conditions and years of industry sales experience, we provide a straightforward reference range below. All prices are market quotations for
10kV class three-phase oil-immersed distribution transformers with mainstream general parameters, FOB Shanghai, for your price comparison reference:
- Basic General Model: Full copper windings, conventional cold-rolled silicon steel, IEC basic standard compliance, standard protection enclosure. Unit price: USD 7,800 – 11,500. Suitable for light-load stable scenarios such as urban civil power distribution and conventional industrial & commercial parks.
- Industrial Reinforced Model: High-grade grain-oriented silicon steel, thickened full copper windings, enhanced heat dissipation structure, anti-corrosion enclosure. Unit price: USD 12,000 – 16,800. Suitable for heavy-duty working conditions with frequent impact loads, such as mining power supply and factory production lines.
- Export Engineering Model: Full IEC type test certification, customizable voltage parameters, reinforced sea freight packaging, full set of customs clearance documents. Unit price: USD 15,000 – 22,000. Suitable for projects with high compliance requirements such as EPC general contracting and national grid renovation.
Over the past year, affected by price fluctuations of core raw materials such as copper and grain-oriented silicon steel, the overall price fluctuation range of 1600kVA oil-immersed transformers has remained at ±8%. In the long run, with the growing demand for low-loss and high-environmental-adaptability products, the market share of mid-to-high configuration models continues to rise, while the share of entry-level low-cost models gradually shrinks.
For intuitive comparison, we have compiled a configuration and price comparison table for mainstream grades:
.png)
1600kVA Oil-Immersed Transformer Configuration & Price Comparison (10kV Class, FOB Shanghai)
| Product Grade |
Core Configuration |
Unit FOB Price (USD) |
Typical Application Scenarios |
| Basic General Model |
Full copper windings, conventional cold-rolled silicon steel, standard panel radiators, regular painted enclosure, IEC basic factory inspection |
7,800 – 11,500 |
Urban civil power distribution, ordinary industrial & commercial parks, temporary power supply projects |
| Industrial Reinforced Model |
Thickened full copper windings, high-grade grain-oriented silicon steel, enhanced heat dissipation structure, heavy anti-corrosion enclosure, short-circuit resistant reinforcement design |
12,000 – 16,800 |
Mining power supply, factory heavy-duty production lines, industrial scenarios with frequent impact loads |
| Export Engineering Model |
Thickened full copper windings, high-grade grain-oriented silicon steel, enhanced heat dissipation + anti-corrosion, full IEC type test certification, reinforced sea freight packaging, full set of customs clearance documents |
15,000 – 22,000 |
EPC general contracting projects, national grid renovation, formal bidding projects, overseas industrial & mining infrastructure |
For 35kV voltage class units with the same configuration, the price is usually 40%-60% higher. Details are as follows:
Price Comparison of Same Configuration Across Different Voltage Classes (Export Engineering Model, FOB Shanghai)
| Voltage Class |
Unit FOB Price (USD) |
Price Increase (vs. 10kV class baseline) |
| 10kV / 0.4kV |
15,000 – 22,000 |
Baseline |
| 35kV / 10kV |
21,000 – 35,200 |
+40% ~ +60% |
Custom requirements such as on-load tap changing, high-flash-point insulating oil and high-altitude adaptation will also correspond to different levels of price premiums. After all, price differences are never arbitrary — every price difference corresponds to tangible differences in configuration, craftsmanship and service.
8 Core Factors Determining the Price of 1600kVA Oil-Immersed Transformers
Transformers are customized industrial equipment with a clear and transparent cost structure. Understanding these 8 core cost components allows you to immediately identify inflated quotations and avoid confusion during price comparison.
To intuitively quantify the impact of each configuration on the final price, we have compiled a price fluctuation comparison table based on the basic general model:
Impact of Core Configurations on 1600kVA Oil-Immersed Transformer Prices
| Impact Dimension |
Configuration Upgrade Item |
Unit Price Fluctuation Ratio |
Remarks |
| Winding Material |
Upgraded from aluminum windings to full copper windings |
+30% ~ +40% |
Core factor determining conductivity and service life |
| Core Material |
Upgraded from conventional cold-rolled silicon steel to high-grade grain-oriented silicon steel |
+15% ~ +20% |
Significantly reduces no-load loss, more energy-efficient in long-term operation |
| Cooling System |
Upgraded from standard cooling to high-temperature enhanced cooling |
+10% ~ +15% |
Essential for tropical and high-temperature environments, reduces operating temperature rise |
| Enclosure Protection |
Upgraded from standard paint to heavy anti-corrosion coating |
+15% ~ +25% |
Adapted to coastal, mining and high-humidity corrosive environments |
| Voltage Regulation |
Upgraded from off-circuit tap changing to on-load tap changing (OLTC) |
+30% ~ +40% |
Essential for grid scenarios with large voltage fluctuations |
| Certification & Qualification |
Upgraded from basic factory inspection to full IEC type testing |
+10% ~ +20% |
Mandatory threshold for formal overseas projects and bidding projects |
| Delivery Packaging |
Upgraded from standard factory packaging to reinforced sea freight packaging |
+5% ~ +8% |
Essential for cross-border transportation, including moisture-proof, shock-proof and fumigation treatment |
How to Select the Right 1600kVA Oil-Immersed Transformer?
Choosing a transformer is not about picking the most expensive or the cheapest option — matching the product to the application scenario delivers the best cost performance. Based on typical working conditions of different projects, here are several general selection principles:
- Civil power distribution, temporary power supply, conventional industrial & commercial parks For scenarios with stable loads and mild environmental conditions, the basic general model is sufficient. Units meeting IEC standards with full copper windings are adequate; prioritize controlling initial procurement costs without upgrading redundant configurations.
- Factories, mines, heavy-duty equipment supporting scenarios For scenarios with frequent impact loads and long operating hours, the industrial reinforced model is recommended. The 10%-20% premium for thickened full copper windings, high-grade cores and reinforced structures is far lower than the schedule and production losses caused by equipment failure and shutdown.
- Tropical high-temperature, high-humidity, coastal/mining corrosive environments For these working conditions, it is essential to upgrade the heat dissipation and anti-corrosion configurations. Ordinary transformers operating in high-temperature, high-humidity and corrosive environments experience doubled insulation aging speed, and their actual service life may be only half of the design life, resulting in extremely high replacement costs later on.
- Overseas EPC general contracting, national grid renovation, formal bidding projects For projects with high compliance requirements, choose the export engineering model directly. Complete certification documents and a sound delivery system may seem expensive per unit, but they avoid huge risks such as customs clearance delays and acceptance failures, lowering overall project risk.
Why Do More and More Overseas Customers Choose GNEE Electric?
With years of deep engagement in the transformer foreign trade industry, we have seen countless customers turn to GNEE Electric after encountering pitfalls. The reason we have gained long-term recognition from numerous engineering contractors and grid clients worldwide is that we do not play low-price tricks — we only deliver transparent, reliable products and services.
- First, fully transparent quotations with no hidden costs. Every quotation clearly lists winding material, silicon steel grade, certification list, packaging solution and service content. Every cost item is clear at a glance, making price comparison easy for customers without worrying about hidden price increases later.

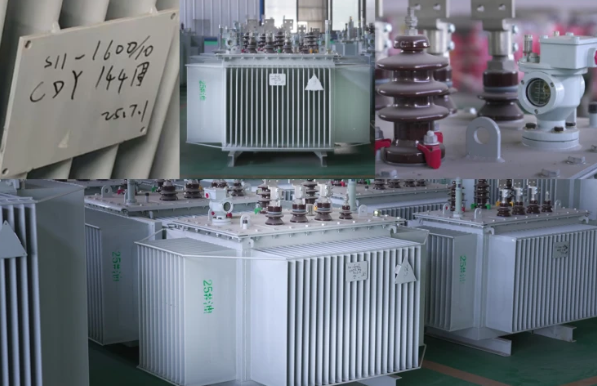

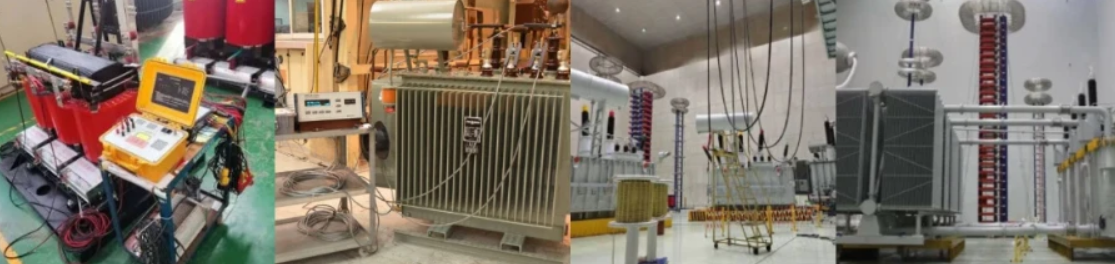

- Second, solid configuration with reliable quality. GNEE Electric’s 1600kVA oil-immersed transformers adopt full copper windings and high-grade grain-oriented silicon steel by default. Every unit must pass full inspections including lightning impulse test, temperature rise test and short-circuit impedance test before delivery. Parameters are fully consistent with nominal values, ensuring stable operation and extremely low failure rate after commissioning.
- Third, one-stop export service for hassle-free experience. The full product range complies with IEC international standards and can provide complete certifications including CE. For overseas customers, we provide a full set of customs clearance documents including reinforced sea freight packaging, Certificate of Origin and material certificates. For special scenarios such as tropical and mining environments, we also provide free adaptation optimization suggestions, eliminating the need for customers to repeatedly communicate requirements.
- Fourth, full-cycle technical support with guaranteed after-sales service. For overseas projects, we provide a full set of services including remote installation guidance, video commissioning and operation & maintenance training. We have established a 24-hour rapid response channel to provide timely solutions to technical problems, addressing customers’ concerns about difficult operation and maintenance in remote projects.
.png)
In conclusion, there is no fixed “flat rate” for 1600kVA oil-immersed transformers. Price is essentially the sum of configuration, quality and service. Choosing the configuration that matches your scenario, avoiding low-price traps and finding a reliable original manufacturer are the keys to true cost-effectiveness.
If you are procuring 1600kVA oil-immersed transformers for your project, unsure about model selection, or seeking accurate quotations from original manufacturers, you can contact GNEE Electric’s business team directly:
- Get a detailed quotation for 1600kVA oil-immersed transformers for free
- Download the complete product datasheet and type test report for free
- Receive a free customized selection and cost optimization solution for your project scenario
Our professional technical team will respond within 24 hours, provide one-on-one matching for your project needs, and deliver accurate, straightforward quotations and implementation solutions.
