For electrical engineers, facility managers, and procurement professionals specifying distribution equipment, understanding the true load capacity of a 1000kVA oil-immersed transformer is critical to system reliability and cost efficiency. The transformer nameplate may indicate 1000kVA, but this is typically only the base ONAN rating. When the ONAF cooling mode is engaged, the same transformer can safely deliver significantly higher output.
This article explains the role of ONAF cooling in transformer operation, provides real-world load limits for 1000kVA oil-immersed transformer units, and compares ONAN vs ONAF dual-system performance to help you make informed equipment decisions.
.png)
ONAF stands for Oil Natural Air Forced—a widely adopted cooling classification defined in both IEC 60076 and IEEE C57.12.00 standards. Understanding this cooling method is essential to unlocking the full potential of any oil-filled transformer.

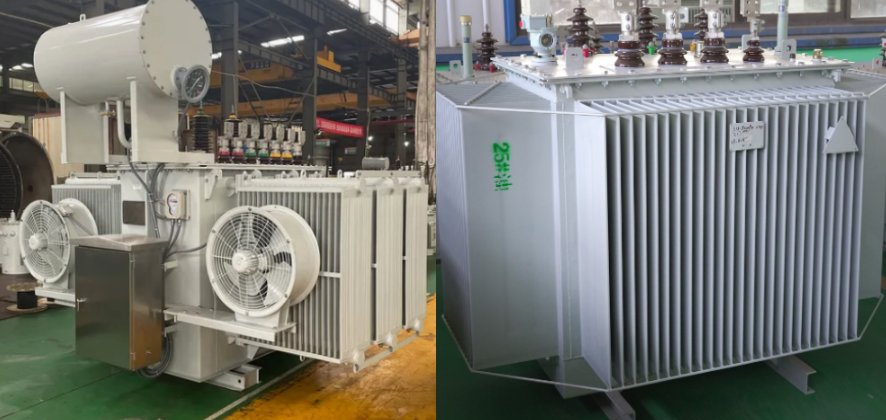

In the ONAF cooling mode, the transformer retains the same natural thermosiphon oil circulation used in ONAN systems: heat from the core and windings warms the oil, causing it to rise naturally into cooling radiators, where cooler oil sinks to replace it. The key distinction is the addition of externally mounted fans that force air across the radiator surfaces at 2–3 times the natural airflow rate.
This forced-air movement dramatically accelerates heat dissipation from the oil to the ambient environment. When the transformer load increases and heat generation exceeds the capacity of natural air cooling, the ONAF system triggers the fans—typically via automatic temperature sensors or oil temperature relays.
The core role of ONAF cooling is to increase the transformer‘s thermal capacity. By removing heat more efficiently, the cooling mode allows the transformer to sustain higher loads without exceeding allowable temperature rise limits (typically 65°C average winding temperature rise per IEC 60076). Without fans, a 1000kVA oil-immersed transformer is limited by natural convection; with fans engaged, the same unit can handle 15% to 33% more continuous load, depending on design standards and manufacturer specifications.
Moreover, ONAF cooling extends insulation life. A 1000kVA ONAF transformer running at 900kVA average load can last 35+ years compared to 25 years for an ONAN-only unit, due to lower average winding temperatures under equivalent loads.
Most modern medium-power distribution transformers are built with dual cooling systems—ONAN for base operation and ONAF for peak demand. This hybrid design balances energy efficiency (minimizing fan usage at light loads) with high-load performance.
ONAN (Oil Natural Air Natural) cooling relies entirely on passive heat transfer. There are no fans, no moving parts, and zero auxiliary power consumption. Operation is silent and maintenance is minimal—only periodic oil checks.
For a 1000kVA oil-immersed transformer, the ONAN mode delivers 1000kVA continuous capacity. This is the self-cooled rating that appears first on the transformer nameplate. ONAN operation is ideal for:
Steady, predictable loads with average demand ≤80% of rating
Quiet environments such as residential substations or hospital facilities
Moderate climates with good natural ventilation
However, ONAN cooling has inherent limitations: cooling capacity is constrained by natural airflow. Under sustained high loads or elevated ambient temperatures, winding temperatures may approach or exceed allowable limits, accelerating insulation aging and reducing service life.
When load conditions demand more output, the ONAF mode engages. Electric fans activate—either manually or automatically based on temperature thresholds—forcing air across the radiators. This improves heat dissipation efficiency and permits higher transformer loading.
For a 1000kVA oil-immersed transformer, the ONAF cooling mode delivers:
Maximum continuous load: 1150kVA (with fans continuously engaged)
Peak/emergency capacity: 1250kVA (limited duration, typically one hour under emergency conditions)
These figures are based on industry practice, where the transformer nameplate often reads 1000/1250 kVA (ONAN/ONAF)—indicating a 1000kVA base rating and 1250kVA maximum output with fan assistance. Under conservative IEEE guidelines for units below 2500kVA, the ONAF boost is approximately 15% (1150kVA). Under more aggressive manufacturer designs following IEC 60076, a 25% increase (1250kVA) is common for 1000kVA oil-immersed transformer units.
| Cooling Mode | Continuous Capacity | Peak/Emergency Capacity (1 hour) | Fan Engagement |
|---|---|---|---|
| ONAN (natural cooling) | 1000kVA | 1050kVA (with oil temp warning) | Fans OFF |
| ONAF (forced air cooling) | 1150–1250kVA | 1250–1350kVA (emergency) | Fans ON |
When specifying a 1000kVA oil-immersed transformer, the choice between ONAN-only and ONAN/ONAF dual-cooling design depends on your specific load profile and operating conditions.
Load profile is stable and consistently below 1000kVA
Installation is in a quiet environment (residential, hospital, school)
Maintenance resources are limited (fans require periodic attention)
Ambient temperatures are moderate year-round
Peak loads intermittently exceed 1000kVA (up to 1150–1250kVA)
The substation has limited space or poor natural ventilation
Future load growth is anticipated (ONAF provides expansion headroom)
Ambient temperatures are high, reducing natural cooling efficiency
For a 1000kVA distribution transformer with ONAN/ONAF dual cooling, consider these installation requirements:
Clearance: Even with fans, adequate clearance around radiators is essential for effective forced-air flow
Control wiring: Temperature sensors and fan controls require proper integration with substation automation systems
Ventilation: Indoor installations must provide sufficient air intake and exhaust paths for forced-air cooling
Backup cooling: Consider redundant fans or automatic transfer schemes for critical applications
