Exploring Electrical Steel: Characteristics, Applications, and Future Trends

30 Nov 2023
Reading Volume :

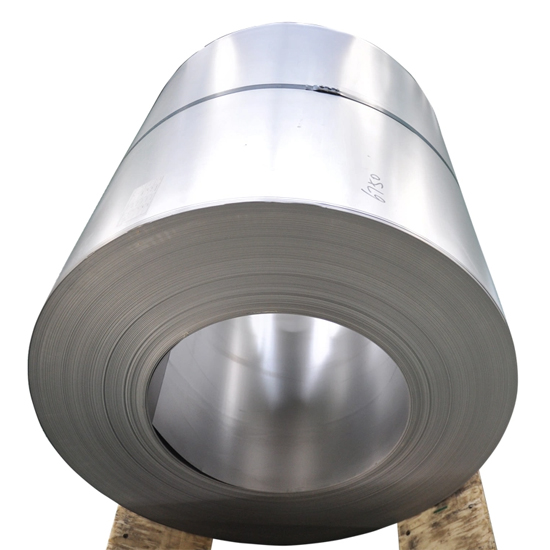

GNEE Steel Electrical Steel Coil

Electrical Steel, also known as silicon steel or transformer steel, is a special cold-rolled steel specifically designed for use in power and electronic equipment. It has special magnetic properties, making it outstanding in electromagnetic applications. The manufacturing and processing process of electrical steel is carefully designed to reduce eddy current losses and hysteresis losses under alternating magnetic fields, thereby improving energy conversion efficiency.

Electrical steel is usually made of low-carbon steel or carbon steel, with a certain proportion of silicon added, usually between 2% and 4.5%. This silicon content endows electrical steel with unique magnetic conductivity, making it excellent in electromagnetic applications. Electrical steel is usually produced in the form of thin strips or sheets to reduce energy loss in high-frequency applications.

The two main types of electrical steel are

Non oriented Electrical Steel: This type of electrical steel has similar magnetic properties in all directions. It is suitable for general motor and transformer applications.

Oriented Electrical Steel: This type of electrical steel is specially treated to have superior magnetic properties in a specific direction. It is typically used in high-performance transformer and motor applications.

Characteristics of electrical steel

Electrical steel is a special type of cold-rolled silicon steel with high electromagnetic properties. Its main features include:

Low loss characteristics: The grain orientation and insulation coating of electrical steel enable it to exhibit lower eddy current and hysteresis losses under alternating magnetic fields, making it suitable for efficient energy conversion equipment.

High permeability: Electrical steel has excellent magnetic conductivity, which can effectively concentrate and conduct magnetic fields, making it an ideal material for equipment such as transformers and inductors.

Thin strip structure: In order to reduce eddy current losses, electrical steel is usually manufactured in the form of thin strips to ensure efficient performance in electromagnetic applications.

Thermal stability: Electrical steel exhibits good thermal stability in high-temperature environments, which is crucial in some high-temperature electronic devices.

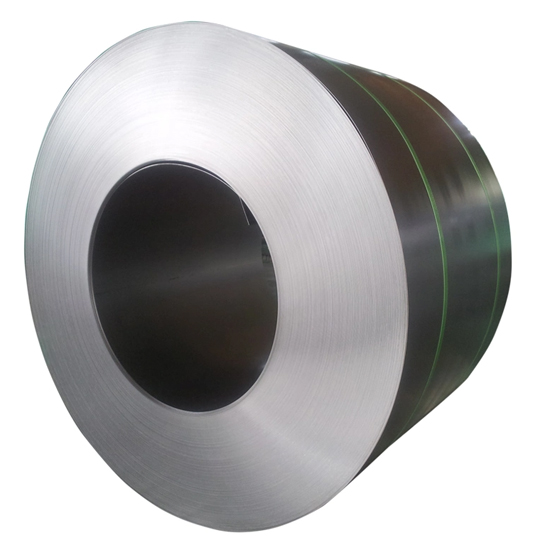

oriented electrical steelnon oriented electrical steel

Application of electrical steel

Electrical steel has a wide range of applications in multiple fields, including but not limited to:

Power transmission and distribution: Electrical steel is used to manufacture transformers and inductors, helping to transmit and distribute electrical energy and reducing energy loss.

Electric vehicles: Electrical steel is a key material in the drive system of electric vehicles, used in the manufacturing of electric motors and frequency converters to improve energy efficiency.

Renewable energy: In wind and solar power generation, electrical steel is used to manufacture power generation equipment, supporting the sustainable development of renewable energy.

Industrial automation: Electrical steel is used to manufacture various solenoid valves and induction devices, supporting industrial automation and intelligent control systems.

Electrical steel is constantly developing and growing, and some future trends include:

High performance demand: With the improvement of energy efficiency requirements, the demand for high-performance characteristics of electrical steel will continue to increase, driving innovation in material science and engineering.

Green manufacturing: The manufacturing industry is moving towards a more environmentally friendly direction, and resource utilization efficiency and waste management in the electrical steel manufacturing process will become key considerations.

Digital integration: The application of digital technology in the manufacturing process will increase, optimizing production processes, quality control, and supply chain management.

Emerging applications: With the development of technologies such as the Internet of Things and artificial intelligence, electrical steel is expected to play a role in more emerging fields, such as smart homes and medical equipment.

Electrical steel, as a key engineering material, plays an important role in the fields of power, energy, and electronics. Its low loss characteristics, high permeability, and extensive application fields make it the cornerstone of modern technological progress. With the continuous development of technology, electrical steel is expected to demonstrate strong potential in more fields and drive the energy and manufacturing industries towards a more sustainable and efficient future.
