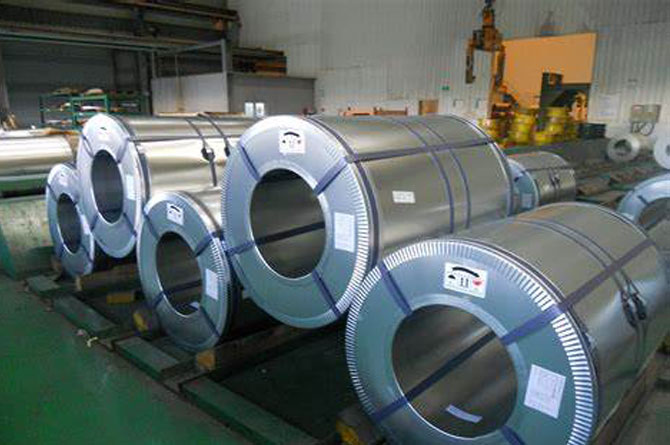

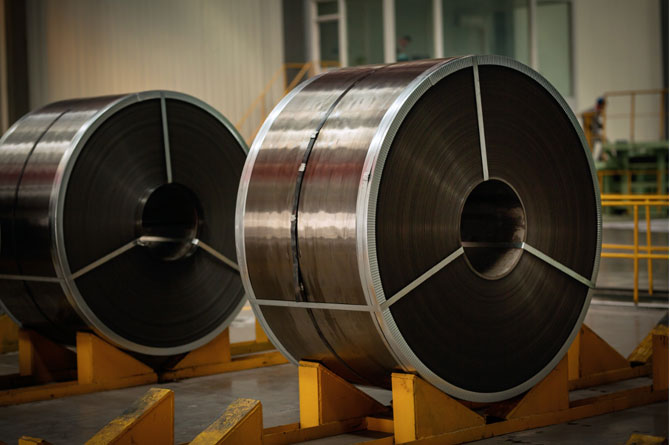

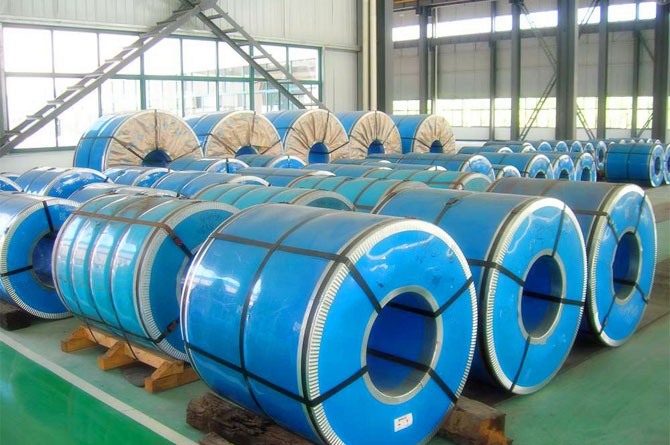

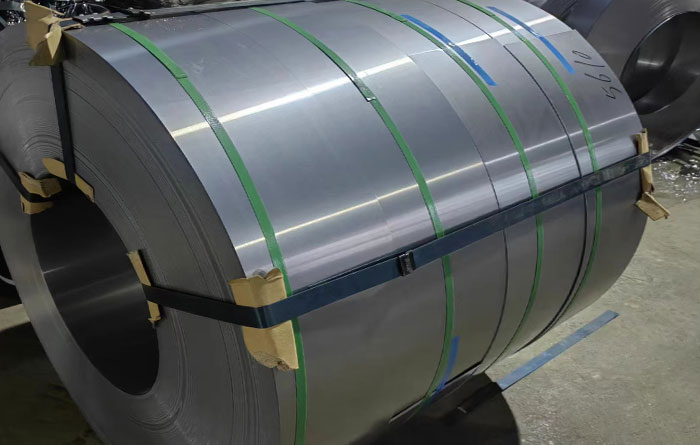

27QG100 Silicon Steel Coil

Silicon steel is mainly used as a magnetic material in motors, transformers, electrical appliances and electrical instruments.
Thickness
0.23mm
Width
700~1500 mm
Product Details
Parameter
Advantage
Service
Message
application Details
Introduction
In order to meet the needs of punching and shearing processing when manufacturing appliances, silicon steel is also required to have a certain degree of plasticity.
In order to improve magnetic inductance performance and reduce hysteresis loss, the lower the content of harmful impurities in silicon steel, the better, and require a flat plate shape and good surface quality.
technical parameter
Technical Data
27QG100 GO Electrical steel Magnetic properties:
Grade Thickness (mm) Assumed Density (kg/dm3)
27QG100 0.27 7.65

Typical values Guaranteed values Lamination factory(stacking/space factor)
P1.7/50 (W/Kg) B8 (T) P1.7/50 (W/Kg) max B8 (T) min Min. Lamination factory
0.95 1.91 0.96 1.90 95.5%

27QG100 oriented (GO) electrical steel coil/strip size and tolerance: Coil diameter Inner diameter 508mm +10mm/-10mm
Tolerance on dimension and shape

Nominal thickness(mm) Nominal thickness tolerance(mm) Longitudinal thickness deviation(mm) Transverse thickness deviation(mm) Width tolerance(Cut edge)(mm) Burr height(mm) Nominal width(mm)
0.27 +0.010
-0.020
+0.012
0
+0.010
0
+0.5
0
≤0.025 850-1200

27QG100 oriented (GO) electrical steel typical mechanical properties
Tensile strength(L) Elongation(L) HV1
357MPa 10% 178


27QG100 Electrical steel coating properties
Thickness of coating: 4-6um/side
Surface insulation resistivity: Guaranteed value ≥ 30Ω.cm2 / lamination (Typical value: 80Ω.cm2 / lamination )
