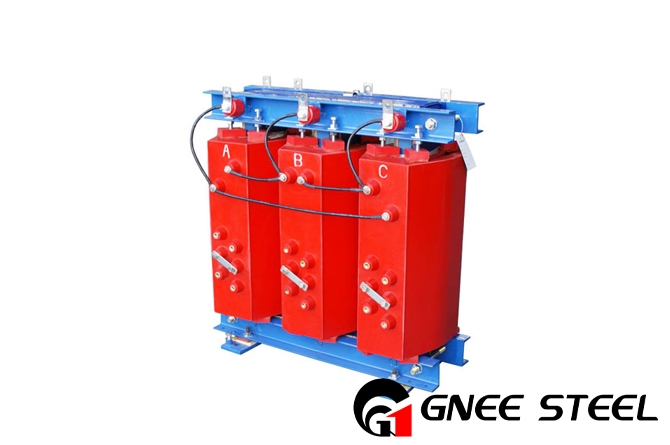

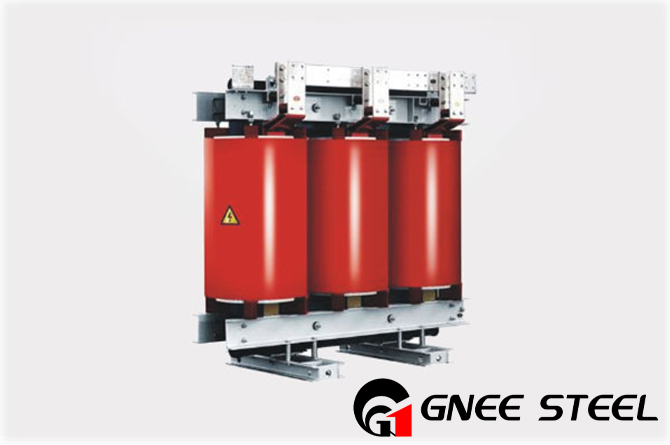

dry type distribution transformer

The 5000 kVA Dry Type Transformer is a state-of-the-art, energy-efficient power solution that provides superior performance and reliability. With its advanced design and cutting-edge technology, it offers an impressive level of thermal and electrical efficiency that is unmatched in the industry. This high-end transformer delivers exceptional value and is perfect for a wide range of applications, including industrial settings, distribution centers, and commercial facilities.

Cast Resin Dry Type Transformer Feature

- High Energy Efficiency: With up to 98% efficiency rating, this transformer is one of the most energy-efficient products in the market. It reduces energy losses and saves money for the end user.

- Superior Thermal Performance: The advanced design provides exceptional thermal performance that ensures the longevity of the transformer. It minimizes the risk of overheating and electrical faults.

- Environmentally-friendly: The dry type transformer eliminates the risk of oil spills and contamination. It is an eco-friendly alternative to traditional transformers and requires less maintenance.

- Compact Design: The compact design of the transformer ensures easy installation and flexibility in any kind of space.

- Enhanced Durability: The transformer is designed to withstand harsh environmental conditions and provides exceptional durability that ensures a longer service life.

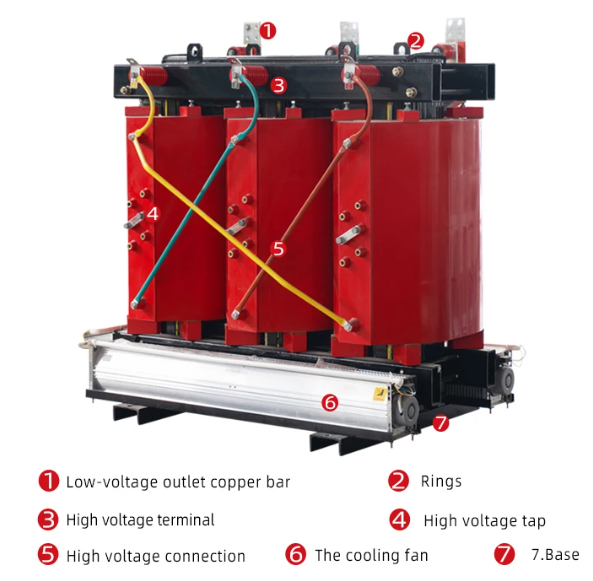

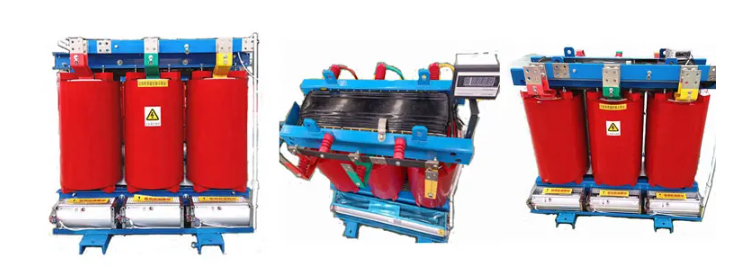

3 phase dry type transformer

technical parameter

Dry Type Transformer

Product Name	5000 KVA Dry Type Transformer
Application	Power Transmission
Power Rating	5000KVA
Phase Number	3phase
Insulation Class	F
Voltage Class	10/0.4KV
Connection Type	Dyn11
800KVA transformer impedance	6％
No-load Loss	6265W
Load Loss	1035W
800KVA transformer current (amps)	0.85
Winding Material	Copper / Aluminum
Enclosure	Stainless Steel / Aluminum alloy / Steel plate spray molding
800KVA transformer size	170021002500mm
800KVA transformer weight	2600kg
800 kva distribution transformer manufacturer	GNEE
