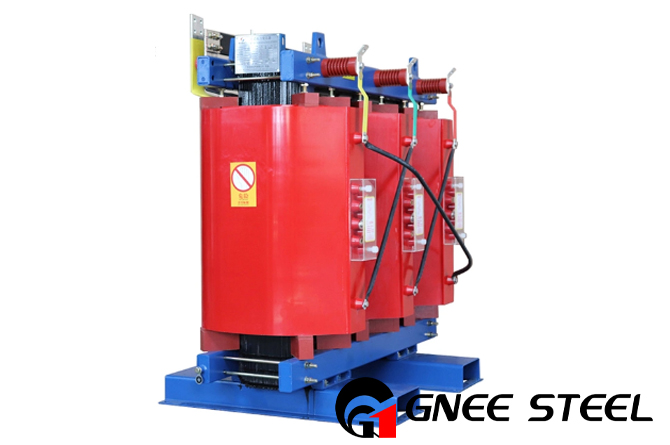

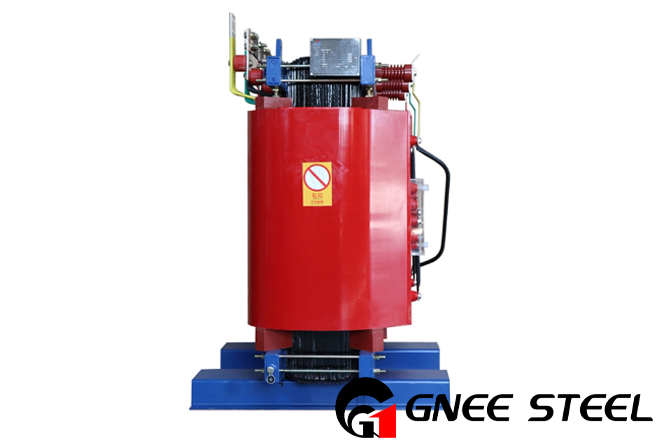

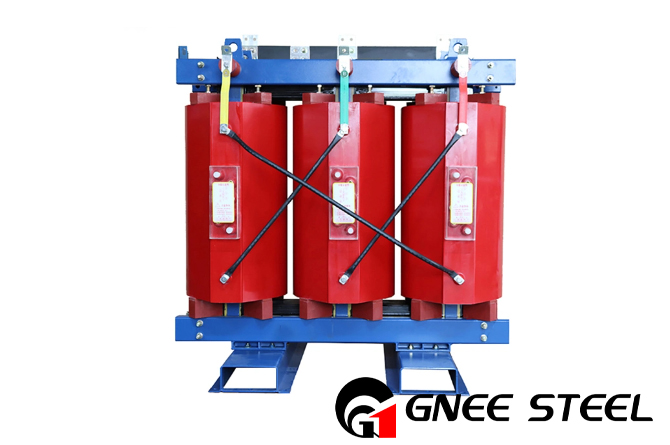

An amorphous alloy dry-type transformer is a type of electrical transformer that combines two distinct characteristics: it uses amorphous metal in its core construction and operates in a dry environment without the use of liquid insulation.
While amorphous dry-type transformers offer several advantages, they may also be more expensive than traditional transformers. However, the long-term benefits, such as energy savings and environmental considerations, can make them a cost-effective choice in certain applications, especially where energy efficiency and safety are paramount.
1. Amorphous iron core greatly reduces no-load loss - energy saving;
The transformer core is made of amorphous alloy strip, and the no-load loss is about 65% lower than S11;
2. Low voltage coil has strong short-circuit resistance - Safety
The low-voltage winding of the transformer is wound on a hard paper cylinder, which enhances the ability of the transformer to withstand short circuit.
3. Transformer maintenance free - convenient
High quality seals with strong anti-aging ability are used to make the transformer truly maintenance free.
4. High insulation performance - stable
| Transformer Type | Amorphous Alloy Transformer |
| Rated Capacity | 1000~4000kVA/Customized |
| Rated Voltage(HV/LV) | Up to 40.5kV/Customized |
| Frequency | 50 Hz/60 Hz |
| Impedance | 4~8% |
| Cooling Way | AN/AF/Customized |
| Tapping Range | +2X2.5%/-2X2.5%/Customized |
| Vector Group | Dyn11/Customized |
| Winding Material | Copper/Aluminium |
| Core Materials | Silicon Steel/Amorphous Alloy |
| Insulation Level | as Per IEC Standard |
| Temperature Rise | Customized |
| Accessories | Fans, Enclosure |
| Optional Protective Enclosure | IP00/IP20/IP23/Cutomized |
| Lightning Impulse Withstand Voltage | as Per IEC Standard |
| Transport Package | Wooden Pallet, Wooden Case |
| Winding Type | Two-winding |
