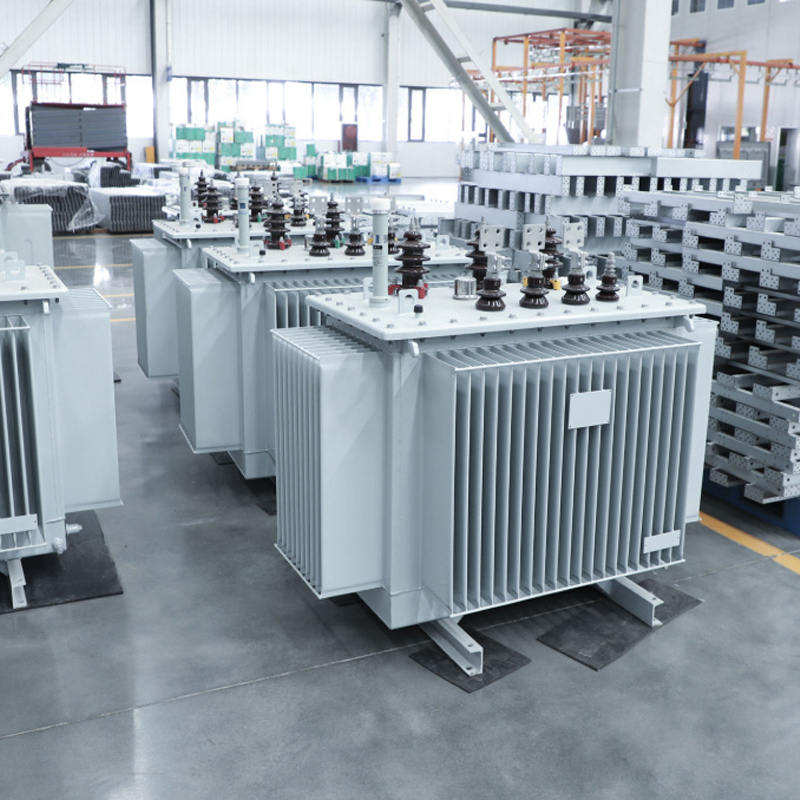

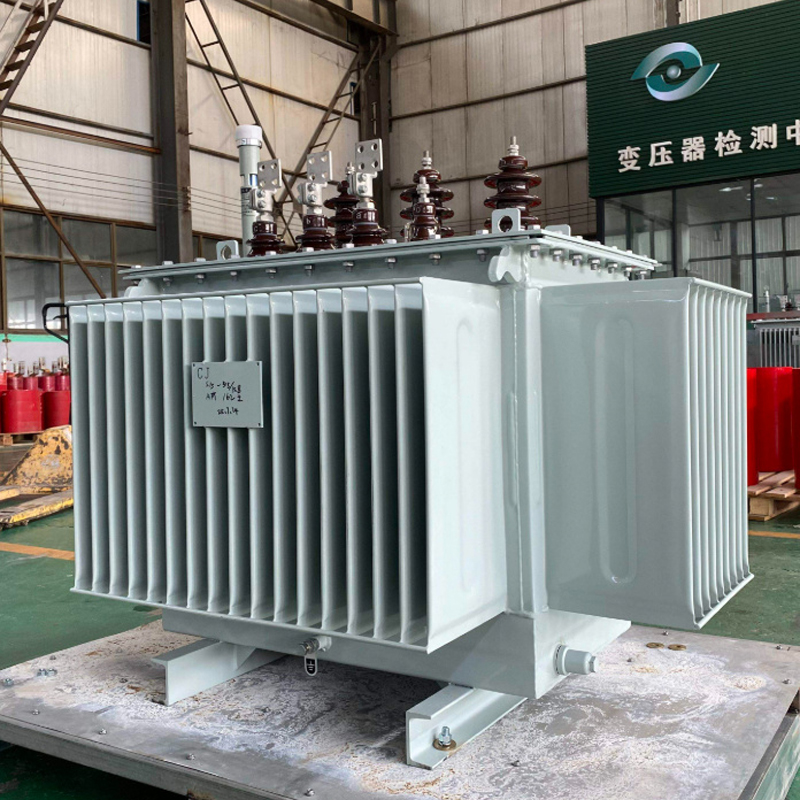

11kv 315kva Oil Immersed Transformer

The 315kVA, 11kV Oil Immersed Distribution Transformer is suitable for pole-mounted applications or installation in distribution stations, supplying daily lighting and industrial power with LV output up to 0.4kV. Our hermetically sealed units are equipped with corrugated radiators, which act as expansion and contraction components to maintain complete isolation of transformer oil from the atmosphere. Units can be tailored to meet specific customer requirements.

Designed with patented technology, meeting IEC & Chinese Standards.
Core: high-quality grain-oriented silicon steel, step-lap process.
Corrugated oil tank: GEORG Germany lines, corrosion-resistant coating.
HV & LV windings: high-strength materials, short-circuit resistant.
Free-hanging core, heat & sun-resistant gaskets.

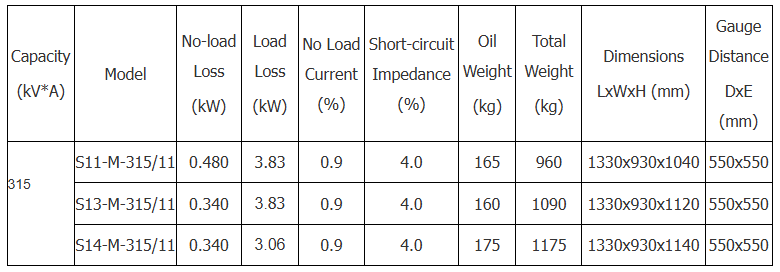

technical parameter

11kv 315kva Transformer Product Overview and Features

Product Overview

Our 315kVA, 11kV Oil Immersed Distribution Transformer is commonly installed on poles or in substations for residential lighting and factory energy needs, delivering LV output up to 0.4kV. Featuring a hermetically sealed design with corrugated radiators, the unit’s corrugated tank allows for oil volume changes while keeping the oil fully separated from external air. Custom manufacturing is available based on client specifications.

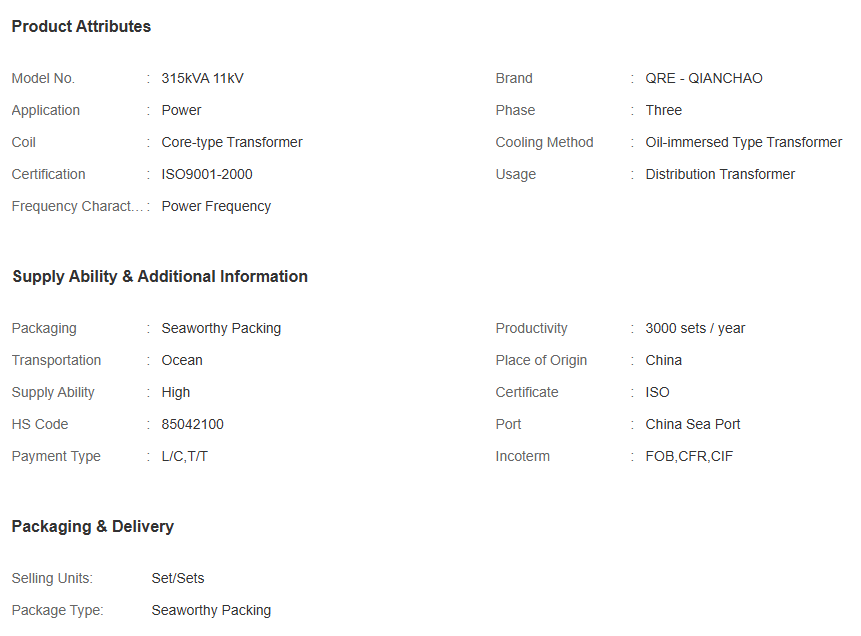

Product Attributes

Product Features

Our distribution transformer is developed using patented technology and advanced design software, ensuring compliance with IEC Standards and Chinese National Standards.

The transformer core is manufactured from premium cold-rolled grain-oriented silicon steel sheet, produced with step-lap technology on an automated GEORG Germany core lamination line.

The corrugated oil tank is produced on GEORG Germany ultra-corrugation lines. Pre-treatment uses globally recognized coating brands, with degreasing, pickling, phosphating, electrophoresis, powder spraying, and heat curing for exceptional corrosion resistance.

HV windings are crafted from high-strength enamelled wire or paper-insulated wire, while LV windings use enamelled or paper-insulated wire with copper belt winding, ensuring balanced ampere-turn distribution, optimized insulation, and strong short-circuit endurance.

The active part features a core free-hanging structure, and gaskets are made from durable acrylate rubber to resist aging from heat and sunlight.

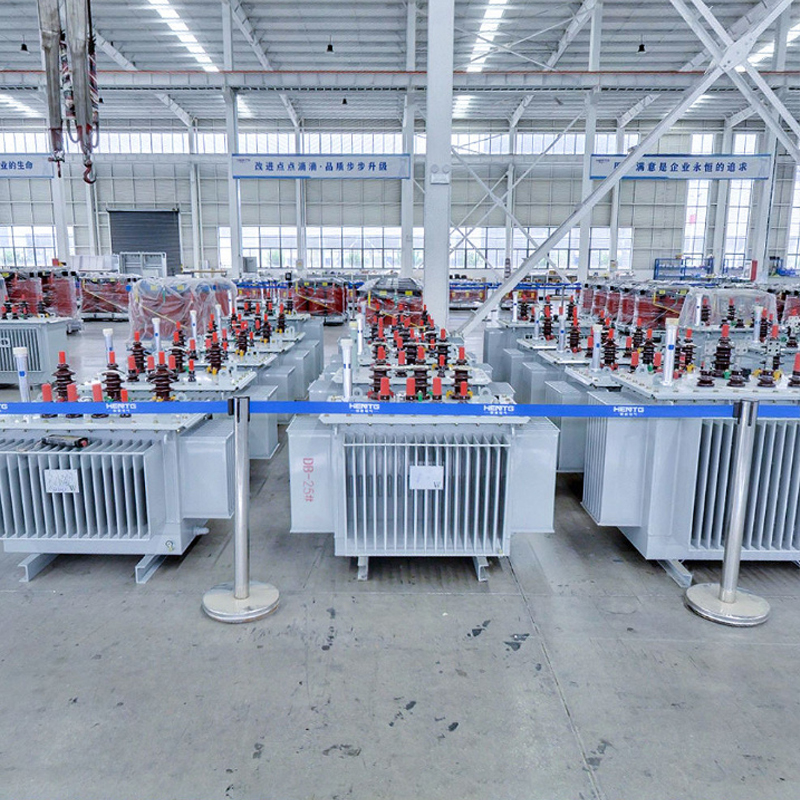

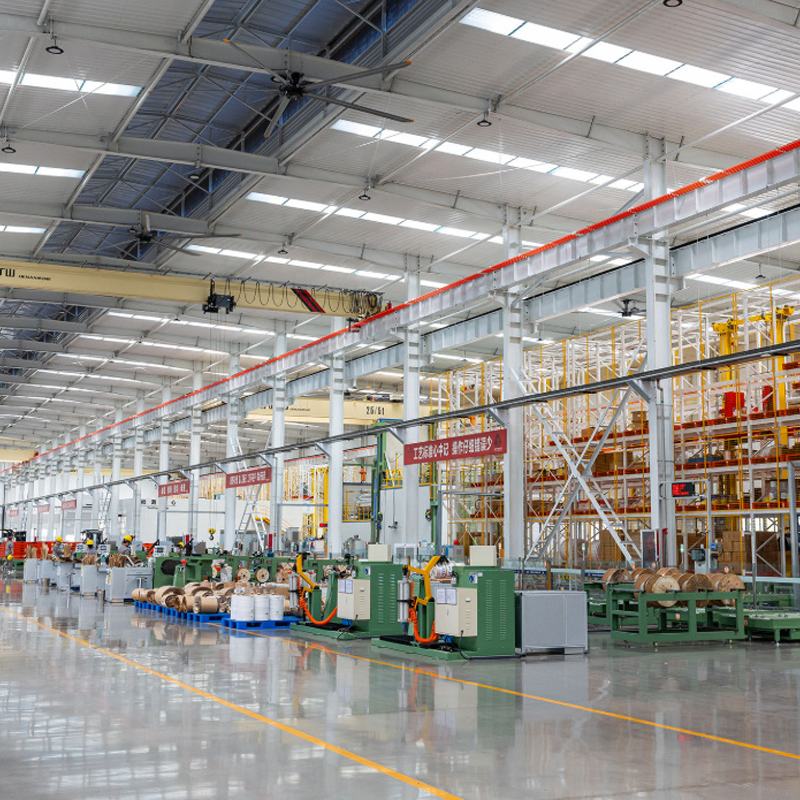

Our Factory

About Us

GNEE Electrical Equipment Co., Ltd. was established in 2008 and is located in Anyang City, Henan Province. It is a digital management enterprise integrating power equipment research and development, production, sales and installation. It has more than 200 employees and more than 160 cooperative countries. The company's products cover 6kv, 11kv, 22kv, 35kv, rated capacity 50kva to 5000kva and other power transformers, dry-type transformers, oil-immersed transformers, distribution transformers, box-type substations, and wind power and photovoltaic power generation equipment.

With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the international power industry.Welcome to your inquiry!
