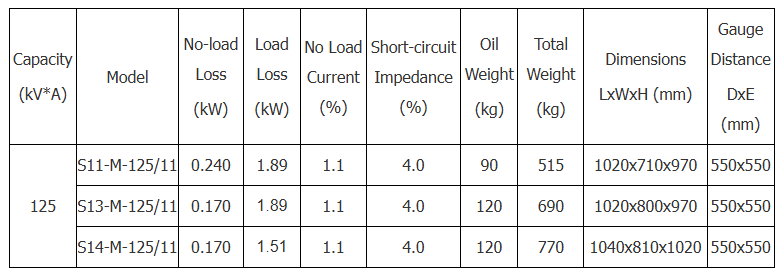

technical parameter
11kv 100kva Transformer Product Overview and Features
Product Overview

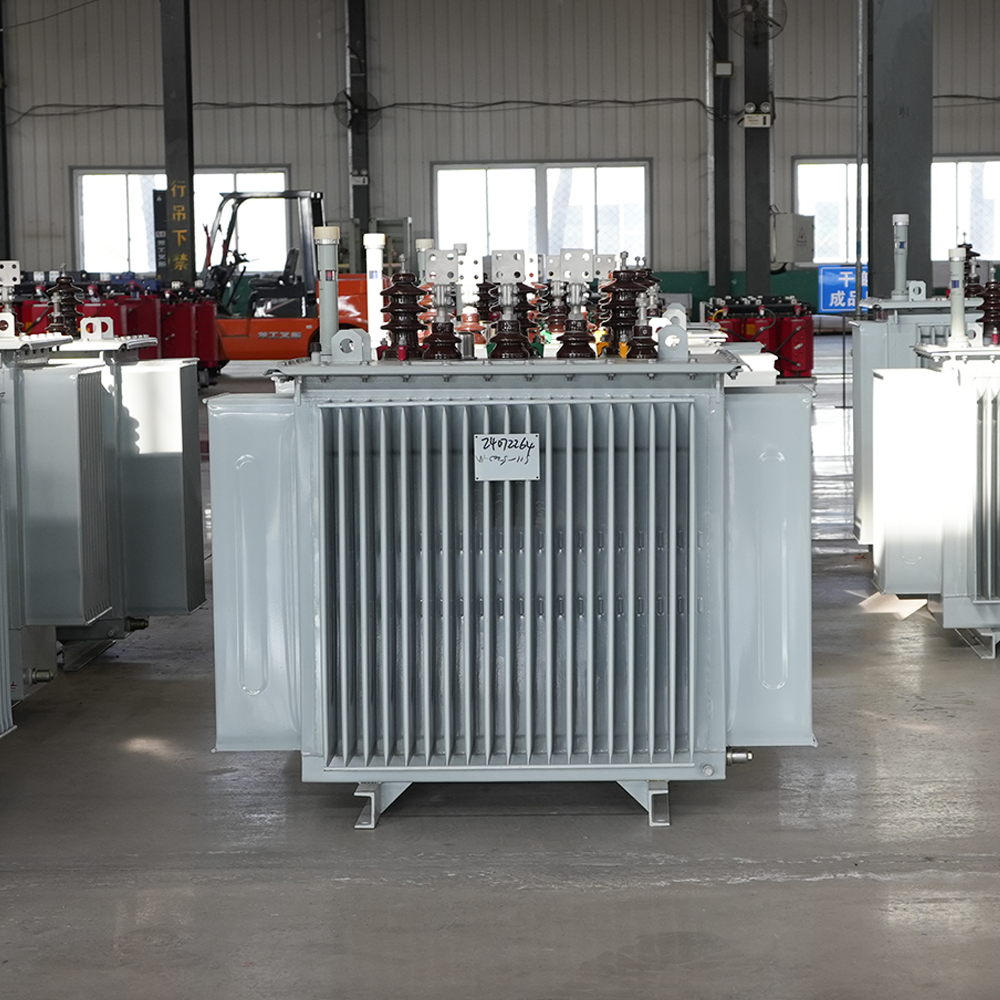

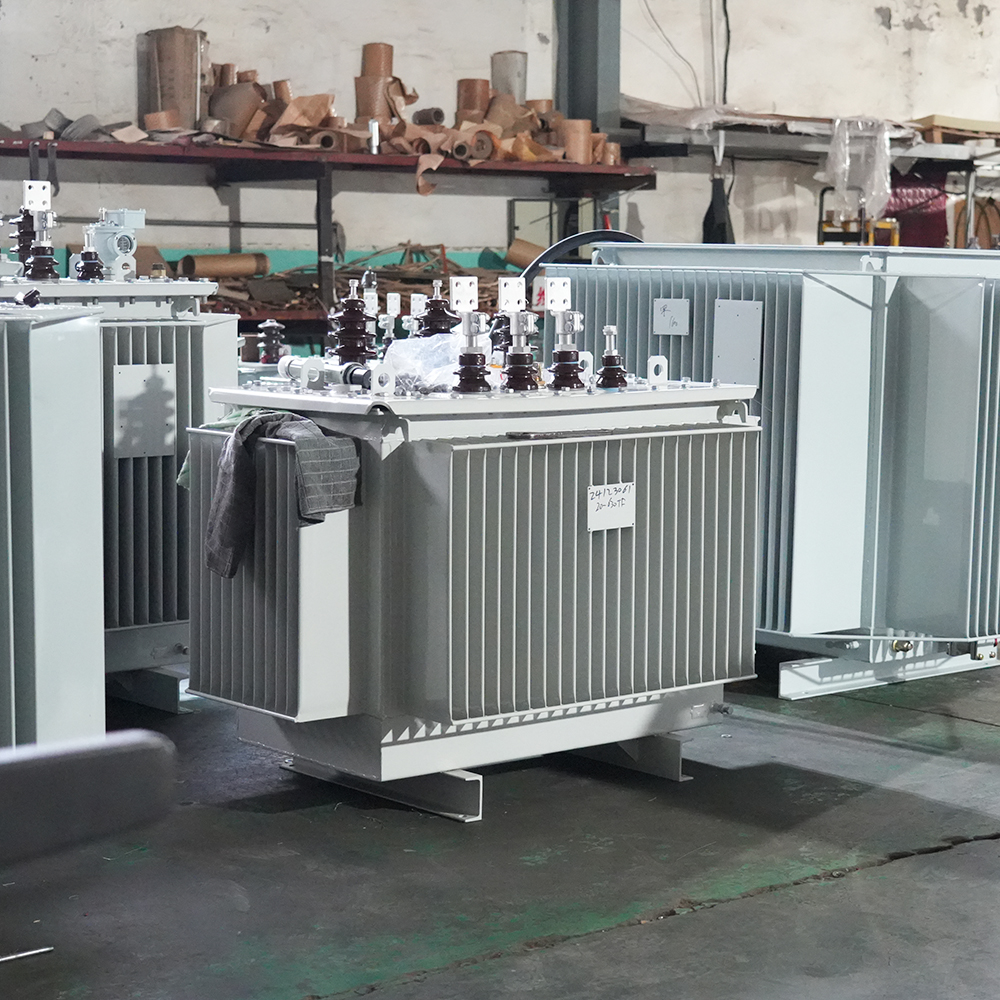

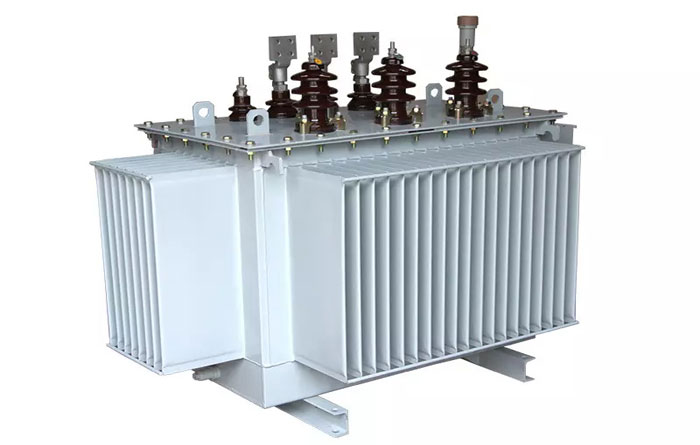

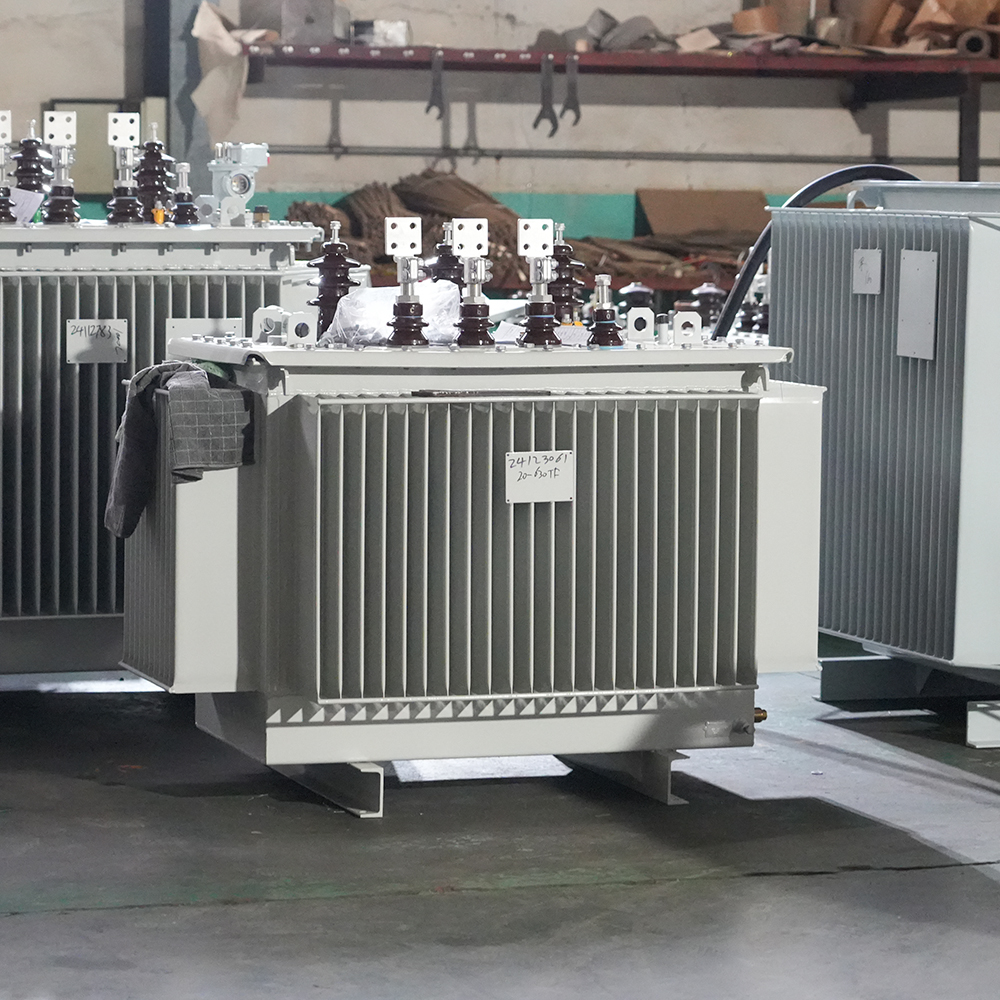

Typically pole-mounted or placed in distribution substations, the 125kVA, 11kV Oil Immersed Distribution Transformer is used for lighting and industrial power supply, offering a 0.4kV LV output. The product is hermetically sealed and fitted with corrugated radiators. Its corrugated tank functions as a thermal buffer, preventing any exposure of transformer oil to the atmosphere. We offer client-specific customization upon request.

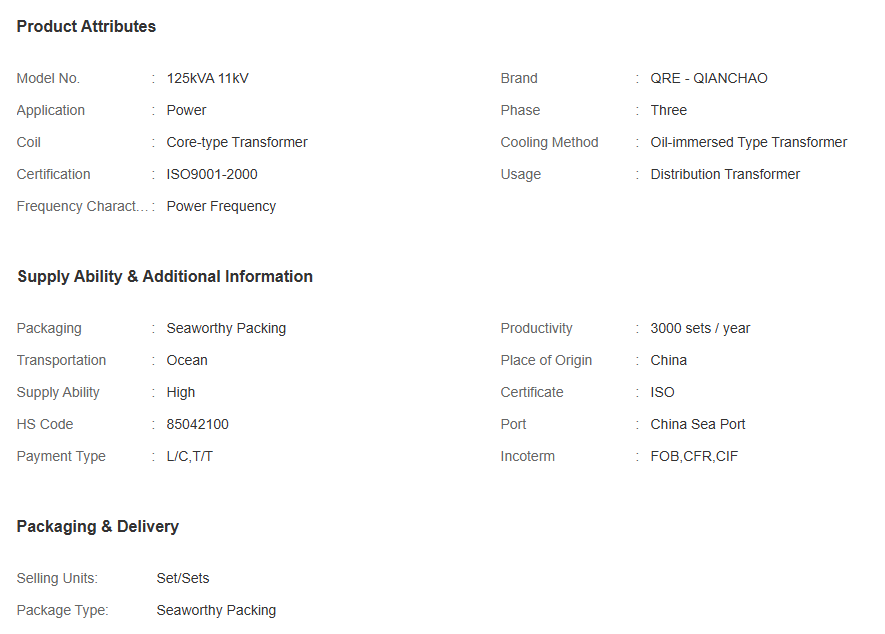

Product Attributes
Product Features
The distribution transformer is designed using proprietary software and patented technology, conforming to IEC and Chinese national standards.
Its magnetic core is constructed from premium cold-rolled grain-oriented silicon steel, processed with step-lap technology on GEORG Germany’s automatic lamination line.
The corrugated oil tank is produced by GEORG’s ultra-corrugation system. Pre-treatment liquids and coatings are from leading international brands. The tank undergoes degreasing, pickling, phosphating, electrophoresis, powder spraying, and heat curing, providing excellent corrosion protection.
HV windings are made from high-strength enamelled or paper-insulated wire. LV windings combine enamelled wire, paper insulation, and copper belt, ensuring even ampere-turn distribution and strong short-circuit endurance.
The active structure adopts a core free-hanging design. Gaskets are made from high-quality acrylate rubber to resist UV and heat-induced aging.

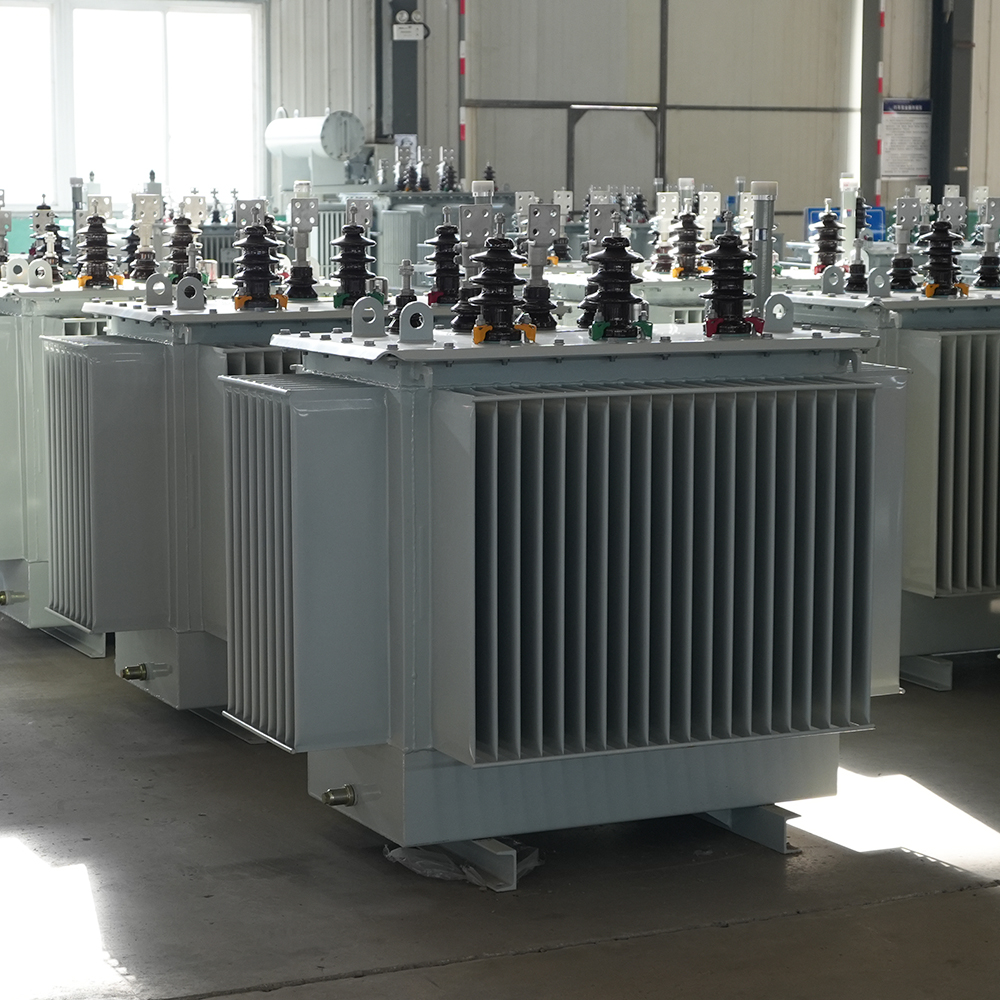

Our Factory
About Us
GNEE Electrical Equipment Co., Ltd. was established in 2008 and is located in Anyang City, Henan Province. It is a digital management enterprise integrating power equipment research and development, production, sales and installation. It has more than 200 employees and more than 160 cooperative countries. The company's products cover 6kv, 11kv, 22kv, 35kv, rated capacity 50kva to 5000kva and other power transformers, dry-type transformers, oil-immersed transformers, distribution transformers, box-type substations, and wind power and photovoltaic power generation equipment.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the international power industry.Welcome to your inquiry!
