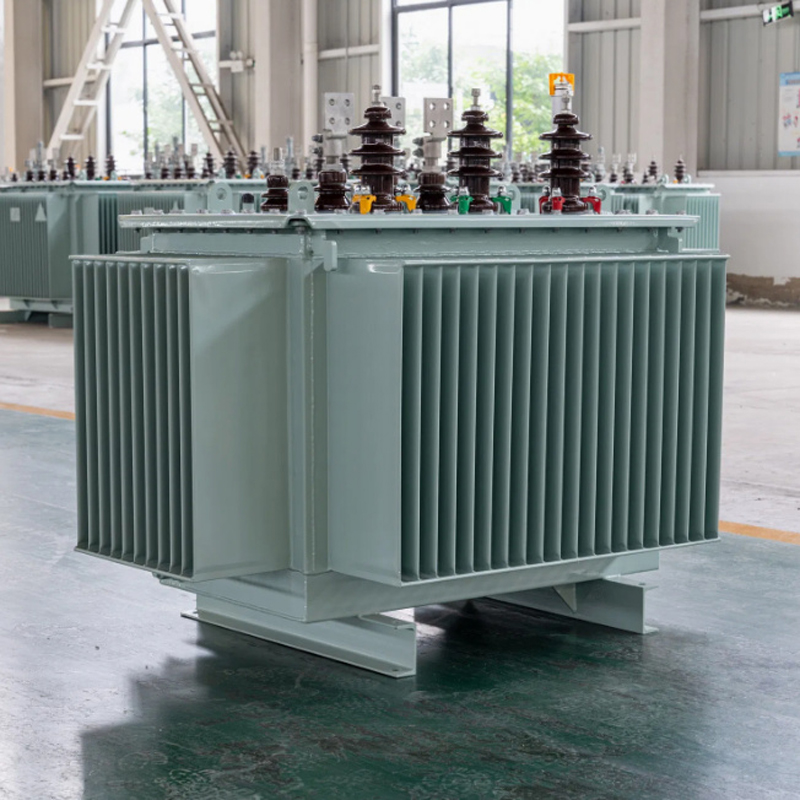

11kv 400kva Oil Immersed Transformer

S11-S13 series 400kVA transformers utilize advanced technology and high-grade materials in coil, body, and insulation. With minimized no-load and load losses, balanced magnetic circuits, and optimized structural reliability, these transformers ensure efficient and stable performance.

Efficient: S11-S13 reduce no-load loss by 20–45% and current by 60–80% vs. S9.
Durable: Fully sealed fuel tank slows insulation oil aging, extending service life.
Quiet: Core design lowers noise by 7–10dB, ideal for residential use.
Reliable: Improved tank parts ensure high sealing and stable operation.
Compact: Corrugated plate radiators replace the oil conservator.

technical parameter

11kv 400kva Transformer Product Overview and Features

Product Overview

Engineered with cutting-edge techniques, the S11-S13 series 400kVA transformers deliver exceptional efficiency. Using superior materials for coil, body, and insulation, they reduce energy losses, enhance reliability, and achieve significant energy savings with a well-designed magnetic circuit.

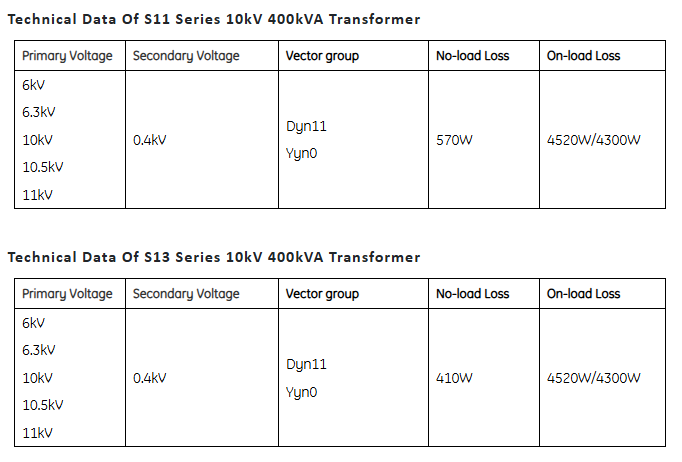

Technical Data

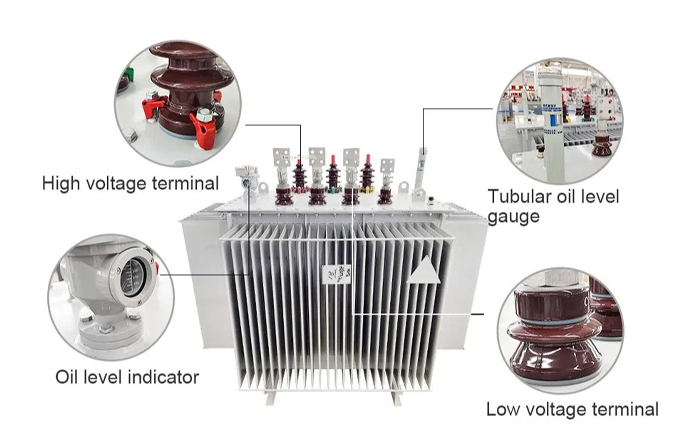

Product Features

►High efficiency & eco-friendly
S11-S13 series transformers achieve lower losses and currents than S9 models. With a circular wound iron core, the silicon steel sheet orientation is fully utilized. The natural compact design avoids the need for clamps, reducing no-load loss by 20–45% and no-load current by 60–80%.

►Extended service life
The fully sealed fuel tank, secured by welding or bolts, keeps insulating oil completely isolated from air, slowing insulation aging and extending transformer life.

►Reduced noise
The seamless compact core structure cuts noise by 7–10dB, making the unit suitable for residential and building environments.

►Stable and reliable operation
Optimized components inside the tank enhance sealing reliability and improve performance consistency.

►Compact structure
Corrugated plate radiators in S11 and S13 act as thermal regulators, expanding and contracting with oil temperature changes, replacing the oil conservator effectively.
