Silicon Electrical Steel Sheet: Enhancing Efficiency in Electrical Applications

05 Dec 2023
Reading Volume :

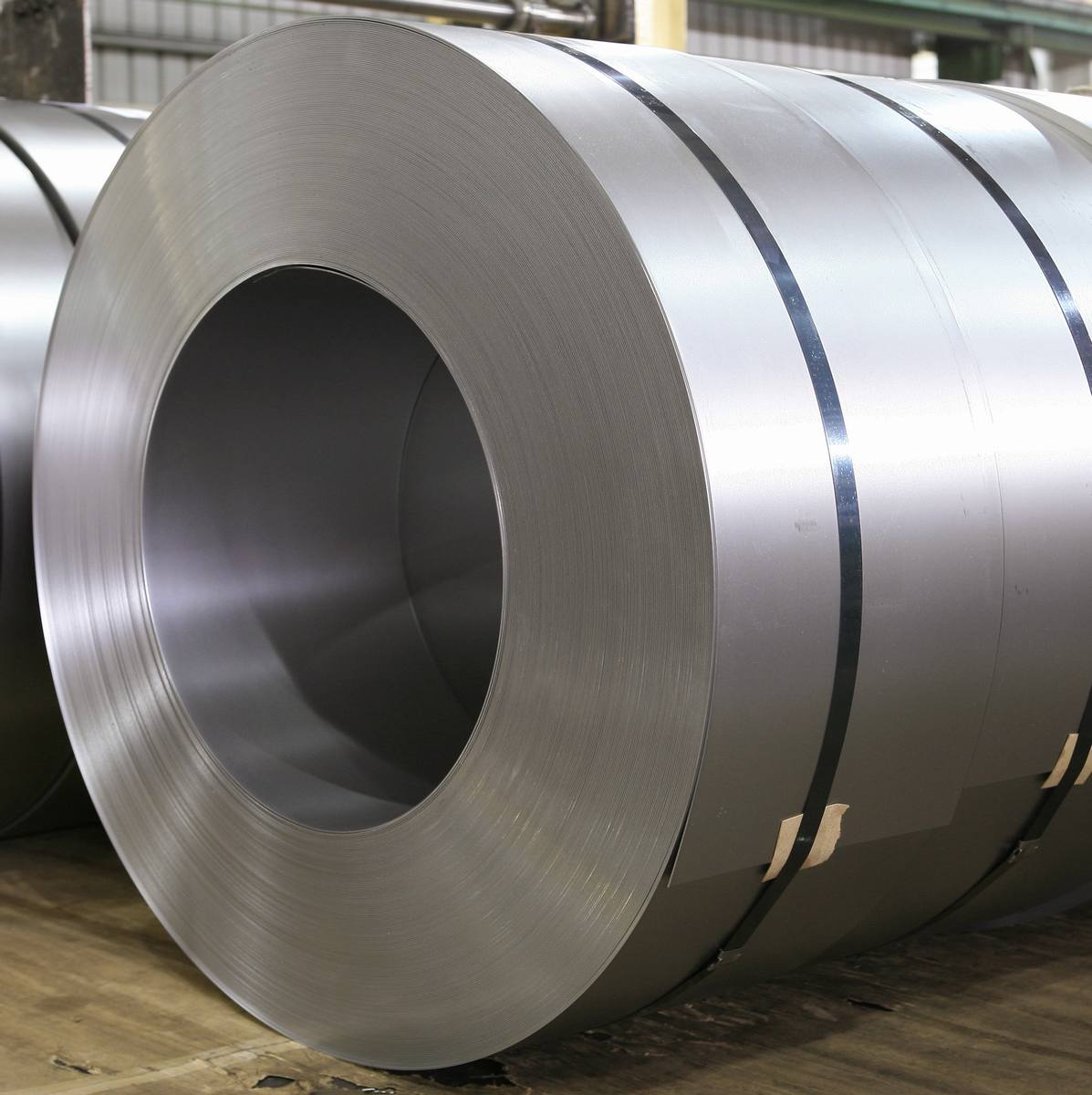

GNEE Steel Electrical Steel Coil

1. What is Silicon Electrical Steel Sheet?

Silicon electrical steel sheet is a type of steel that contains silicon as its main alloying element. The addition of silicon improves the magnetic properties of the steel, making it highly suitable for electrical applications. The silicon content in electrical steel can vary, with higher silicon concentrations leading to enhanced electrical and magnetic properties.



2. Types of Silicon Electrical Steel Sheets

Grain-Oriented Silicon Steel (GOES)

Grain-oriented silicon steel, or GOES, is a type of electrical steel that possesses a highly oriented grain structure. This structure allows for the efficient alignment of magnetic domains, resulting in superior magnetic properties. GOES is primarily used in applications where a strong magnetic field is required, such as power transformers and large generators.



Non-Grain Oriented Silicon Steel (NGOES)

Non-grain oriented silicon steel, or NGOES, is another variant of electrical steel that does not possess a well-defined grain structure. This type of steel is more isotropic, meaning it exhibits similar magnetic properties in all directions. NGOES is commonly used in smaller transformers, electric motors, and other electrical devices that do not require highly directional magnetic properties.



non oriented silicon steeloriented silicon steel

3. Properties and Benefits

Magnetic Properties

The silicon content in electrical steel enhances its magnetic permeability, allowing for efficient magnetization and demagnetization cycles. This property enables transformers, motors, and generators to operate with high efficiency, minimizing energy losses.



Electrical Resistance

Silicon electrical steel sheet exhibits low electrical resistance, essential for reducing power losses in electrical devices. Low resistance enables electrical currents to flow with minimal hindrance, ensuring efficient energy transmission.



Energy Efficiency

Using silicon electrical steel sheets in electrical devices can significantly improve energy efficiency. The reduced core losses and low electrical resistance contribute to minimizing wasted energy, resulting in more sustainable and cost-effective operations.



Reduced Core Losses

Core losses caused by magnetic hysteresis and eddy currents can decrease the efficiency of electrical devices. Silicon electrical steel sheet is designed to minimize these losses, leading to improved overall device performance and reduced energy consumption.



Applications of Silicon Electrical Steel Sheet

Transformers

Transformers are crucial components in power distribution systems. Silicon electrical steel sheet is extensively used in transformer cores to facilitate efficient energy transfer and minimize losses.



Electric Motors

Electric motors rely on the interaction between magnetic fields and electrical currents to generate mechanical motion. Silicon electrical steel sheet is employed in motor cores to enhance efficiency and reduce energy wastage.



Generators

Generators, whether for industrial or residential use, require materials that exhibit excellent magnetic properties. Silicon electrical steel sheet ensures efficient power generation by minimizing energy losses in the generator's core.



Inductors

Inductors, used in electronic circuits to store energy, benefit from the magnetic properties of silicon electrical steel sheets. This material enables efficient energy storage and retrieval during circuit operation.
