27QG100 0.27mm Grain Oriented Electrical Steel is a high-performance CRGO (Cold Rolled Grain Oriented) silicon steel grade widely used in transformer cores, reactors and other static electromagnetic equipment.
Manufactured according to GB/T 2521-2022, 27QG100 combines low core loss, high magnetic induction and stable processing performance. It has become one of the most commonly used medium-high grade grain oriented electrical steels for energy-efficient distribution transformers, renewable energy projects and power grid upgrading applications.
Compared with ordinary electrical steel, 27QG100 features a controlled grain orientation structure, which improves magnetic permeability along the rolling direction and significantly reduces hysteresis loss and transformer no-load loss.
.png)
Key Features of 27QG100 Electrical Steel:
The grade designation of 27QG100 contains important information about its thickness, material type and magnetic performance.
| Grade Symbol | Meaning |
|---|---|
| 27 | Nominal thickness of 0.27 mm |
| QG | High magnetic induction grain-oriented silicon steel |
| 100 | Maximum core loss value of 1.0 W/kg under 1.7T/50Hz test condition |
Unlike non-oriented electrical steel used mainly in motors and generators, grain oriented electrical steel is designed for static magnetic applications such as transformers.
Its specially controlled crystal orientation allows magnetic flux to flow efficiently in the rolling direction, reducing energy loss during transformer operation.
The main technical parameters of 27QG100 grain oriented electrical steel are shown below:
| Parameter | Typical Value |
|---|---|
| Product Name | 27QG100 Grain Oriented Electrical Steel |
| Material Type | CRGO Silicon Steel |
| Thickness | 0.27 mm |
| Core Loss P1.7/50 | ≤1.00 W/kg |
| Magnetic Induction B8 | ≥1.82 T |
| Delivery Form | Coil / Slit Coil / Sheet |
| Surface Coating | Insulating coating |
| Standard | GB/T 2521-2022 |
The stable magnetic properties and uniform thickness tolerance of 27QG100 help transformer manufacturers achieve reliable core performance and long-term energy efficiency.
.png)
The low core loss characteristic of 27QG100 helps reduce transformer no-load losses during continuous operation.
For power transformers operating 24 hours a day, reducing core loss directly improves overall energy efficiency and lowers lifetime operating costs.
This makes 27QG100 an ideal choice for:
With stable magnetic induction above 1.82T, 27QG100 provides excellent magnetization efficiency.
High magnetic induction allows transformer manufacturers to:
27QG100 is suitable for modern transformer manufacturing processes, including:
Its uniform coating and stable magnetic properties help maintain consistent transformer quality during mass production.
The largest application area of 27QG100 is distribution transformer manufacturing.
It is widely used in:
The grade provides an excellent balance between electrical performance and production cost, making it suitable for large-scale power grid projects.
With the rapid development of photovoltaic and energy storage systems, demand for high-efficiency transformers continues to increase.
27QG100 is commonly used in:
Its low loss characteristics help improve system efficiency in long-term renewable energy operation.
Besides transformers, 27QG100 can also be applied in:
Different transformer applications require different levels of magnetic performance.
| Grade | Thickness | Core Loss Level | Typical Application |
|---|---|---|---|
| 23QG090 | 0.23 mm | Lower loss | High-efficiency transformers |
| 27QG095 | 0.27 mm | Lower than 27QG100 | Premium energy-efficient equipment |
| 27QG100 | 0.27 mm | ≤1.0 W/kg | Standard high-efficiency transformers |
| 30QG120 | 0.30 mm | Higher loss | Conventional applications |
Compared with 27QG095, 27QG100 provides better cost-performance for standard transformer projects.
Compared with traditional 0.30mm grain oriented steel, 27QG100 can effectively reduce transformer core losses while maintaining competitive material costs.
For most medium-voltage distribution transformers, 27QG100 is considered an economical and reliable choice.
GNEE supplies 27QG100 grain oriented electrical steel in various forms to meet transformer manufacturing requirements.
| Item | Specification |
|---|---|
| Product Form | Coil / Slit Coil |
| Thickness | 0.27 mm |
| Width | Customized |
| Surface | Insulating coating |
| Packing | Export seaworthy packing |

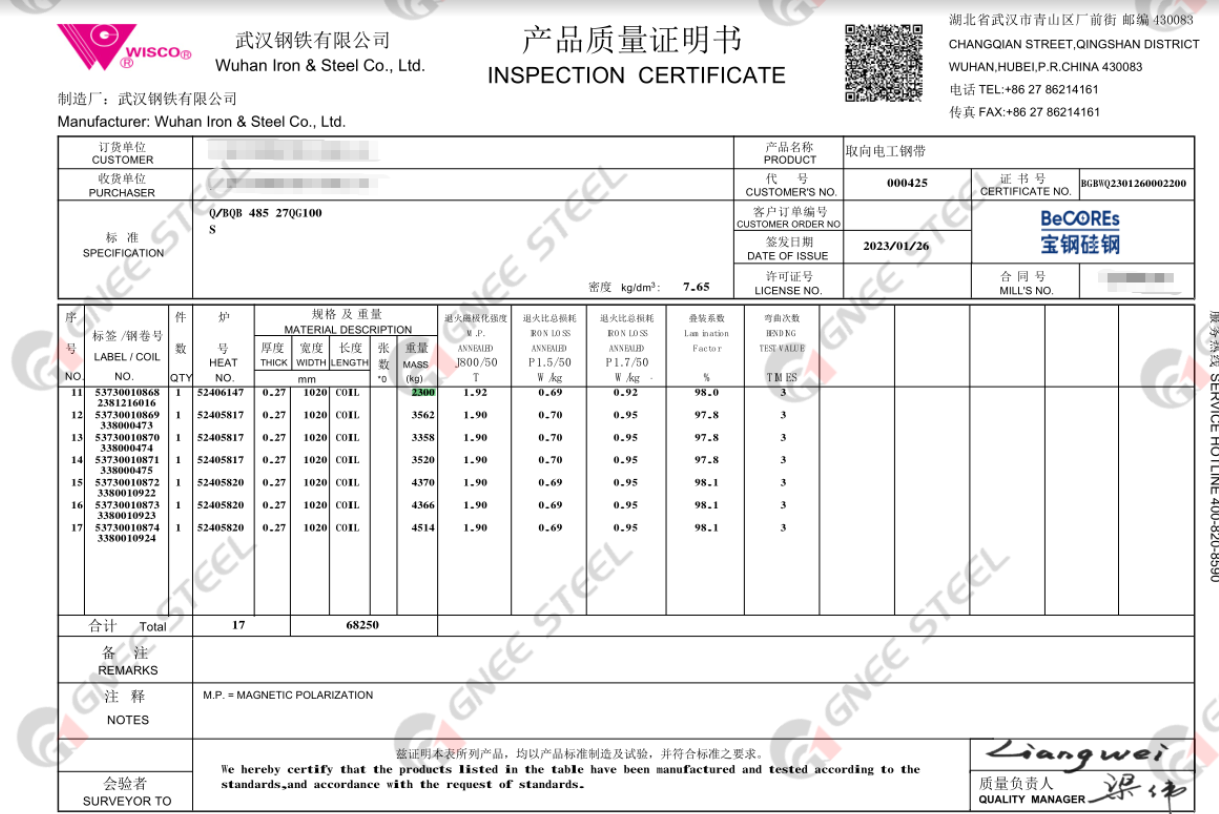

| Documents | Mill Test Certificate (MTC) |
Available services include:
When purchasing 27QG100 CRGO steel, transformer manufacturers should evaluate the following factors:
Important quality indicators include:
Professional suppliers should provide:
A reliable supplier should support:
GNEE Electric provides 27QG100 0.27mm grain oriented electrical steel solutions for global transformer manufacturers and power equipment suppliers.
Whether you need standard CRGO coils or customized electrical steel solutions, GNEE can provide professional support for transformer core manufacturing projects.
Contact GNEE today for 27QG100 electrical steel specifications, availability and quotation.
27QG100 electrical steel is mainly used for transformer cores, reactors, voltage transformers and renewable energy power equipment.
The nominal thickness of 27QG100 is 0.27 mm.
The maximum core loss of 27QG100 is 1.0 W/kg at 1.7T and 50Hz test conditions.
Yes. Its low core loss and high magnetic induction make it suitable for energy-efficient distribution transformers.
27QG095 provides slightly better magnetic performance, while 27QG100 offers a more balanced solution between efficiency and cost for standard transformer applications.
