In ultra-high voltage (UHV) power grids, the 500kV shunt reactor plays an indispensable role in reactive power compensation. It stabilizes system voltage and enhances transmission capacity. However, due to the extreme voltage levels, the safety of the reactor itself is paramount.
At Gnee Electric, we understand that a single failure in a 500kV system can lead to massive grid instability. That’s why we’ve compiled this comprehensive guide to the seven mandatory protection configurations for 500kV shunt reactors.

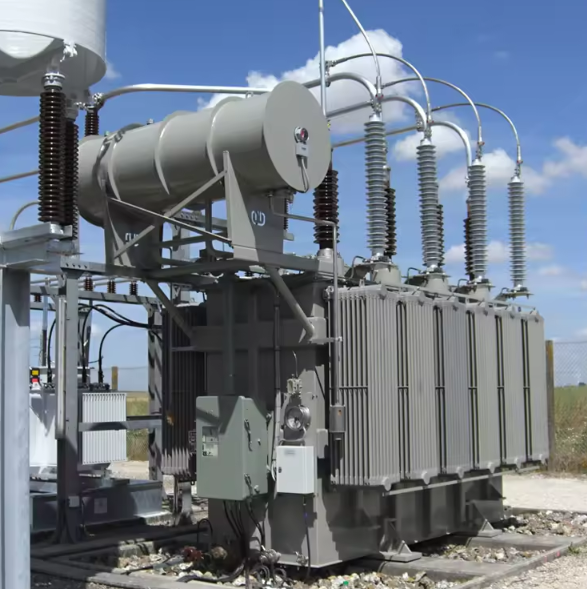

.png)
Target: Reactor windings and bushings.
Function: This is the primary protection for shunt reactors. It provides rapid clearance of phase-to-phase and ground faults with high selectivity, effectively distinguishing between internal and external faults.
Target: Reactor windings.
Function: Inter-turn short circuits are common but difficult for standard differential protection to detect. Specialized inter-turn protection (based on negative-sequence power direction or zero-sequence voltage) is required for sensitive tripping.
Target: Main reactor body.
Function:
Buchholz Protection: Reacts to internal faults like minor arcing, local overheating, and oil level drops.
Temperature Protection: Monitors oil or winding temperature to prevent insulation aging or thermal runaway.
Target: Reactor and lead wires.
Function: Acts as a backup for phase-to-phase or ground faults. If the primary protection or circuit breaker fails to act, overcurrent protection provides a delayed trip to prevent catastrophic equipment damage.
Target: Reactor windings.
Function: When system voltage rises abnormally, the reactor may face long-term overloads. Overload protection issues signals or initiates delayed load shedding to avoid accelerated insulation aging.
Target: Neutral grounding reactor (small reactor).
Function: In 500kV systems, a small reactor is often connected to the neutral point to limit secondary arc currents. This protection reacts to overcurrents in this small reactor during external ground faults.
Target: Oil-immersed neutral grounding reactor.
Function: Even though it is "small" compared to the main 500kV unit, a failure here is severe. Independent Buchholz and temperature monitoring are essential to detect internal faults and oil level changes within the neutral reactor.
Maintaining a 500kV shunt reactor requires a multi-layered defense system. Each of these seven protections is a vital "shield" that ensures the longevity of your assets and the stability of the entire grid.
Gnee Electric doesn't just provide hardware; we provide complete high-voltage solutions. Our 500kV shunt reactors are built with premium insulation and are compatible with the world's most advanced protection systems.
