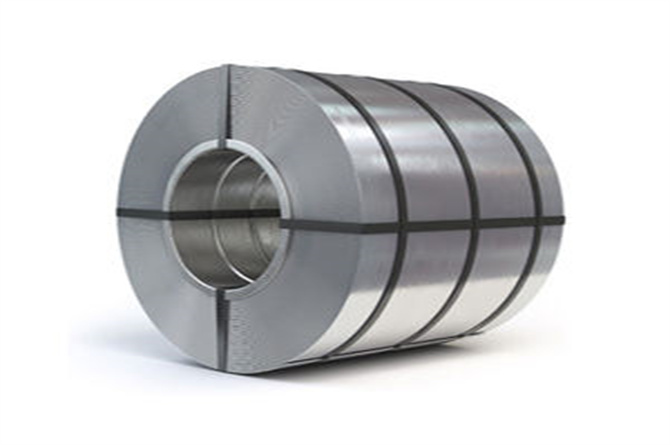

B23R090 Oriented Silicon Steel

B23R090 is a soft magnetic alloy ferrosilicon very low carbon content, usually silicon content of 0.5 to 4.5%. Added silicon can improve iron resistivity and maximum permeability and lower coercive force, core loss (iron loss) and magnetic aging.
Thickness
0.23mm
Width
1000mm-1200mm
Product Details
Parameter
Advantage
Service
Message
application Details
Introduction
High magnetic inductance of silicon steel reduces the excitation current of the core and also saves electrical energy. High magnetic inductance of silicon steel leads to high maximum magnetic inductance (Bm) of the design, small size and light weight of the core, saving silicon steel, wires, insulation materials and structural materials, etc., which makes both motor and transformer losses and manufacturing costs lower, as well as easy to assemble and transport.
The smooth, flat and uniform thickness of the silicon steel surface improves the filling factor of the core.
technical parameter
Technical
B23R090 steel Mechanical Properties:

Grade

tensile strength
L(N/mm2)

Yield Strength
L(N/mm2)

Elongation
L(%)

Hardness
HV1

Bending frequency (times)

Stacking factor(%)

B23R090

353

326

12

195

19

96.5


B23R090 electromagnetic performance standards:


Grade

Nominal thickness(mm)

Theoretical density(kg/dm3)

Maximum core loss P17/50
(W/kg)

The minimum magnetic induction B8
(T)

B23R090

0.23

7.65

0.90

1.87

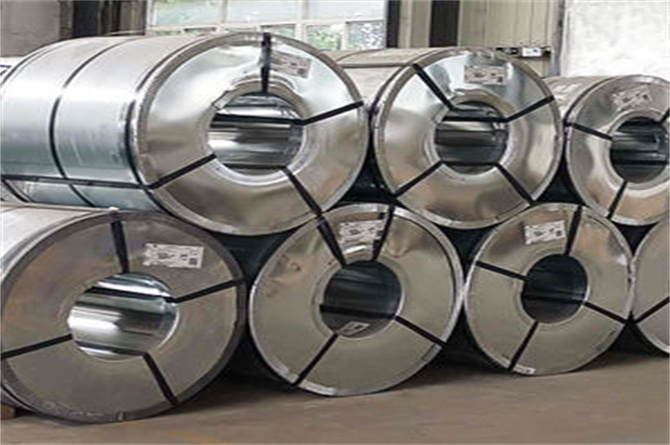

B23R090 silicon steel coil Features:
1 . stable performance: advanced equipment, manufacturing technology and strict management to ensure the stability of the magnetic and mechanical properties.
2 . excellent processing performance: high dimensional accuracy and a smooth surface for easy cutting and punching, slitting steel for high-speed blanking.
3 . excellent coating properties:. BS series of electrical steel insulation coating has excellent insulating properties, adhesion, punching, heat resistance and weldability, with anti-corrosion (oil and chemicals) role.
4 . high dimensional accuracy: Baosteel advanced equipment and manufacturing technology to ensure the BS series has excellent flatness, smooth surface, uniform thickness, with a small difference plate, lamination factor.

B23R090 silicon steel application :
B23R090 steel mainly used in automotive, excavators, bulldozers, Various types of cranes etc.

GNEE Steel Will return you with high-quality products and complete after-sale service with the lowest price. we committed to exceed customer's expectation on the basis of quality, price, and delivery. We sincerely hope to establish long-term cooperation relationship with you on the basis of mutual benefit, reciprocity and common development.
