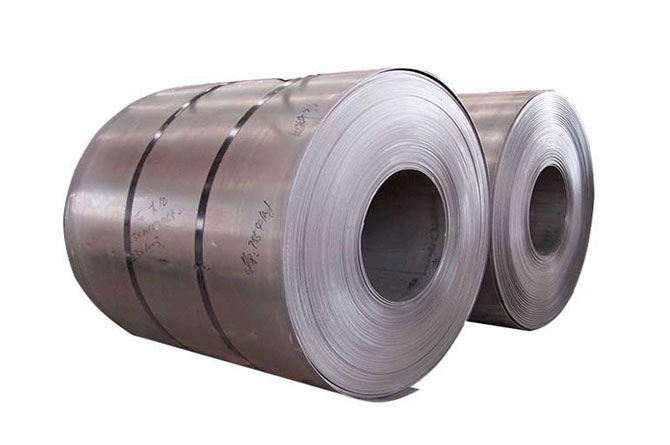

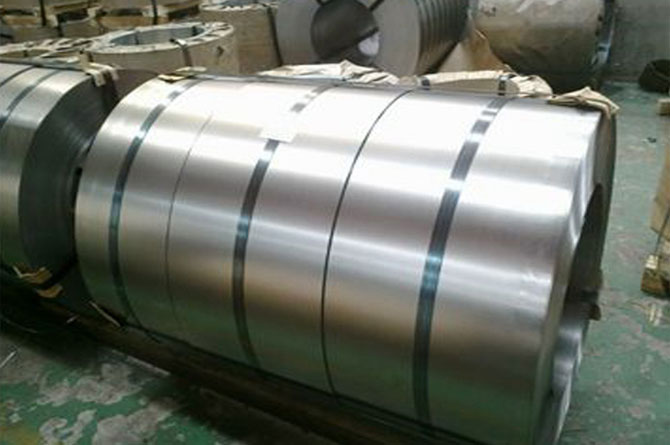

B23R75 silicon steel coil

The grain-oriented silicon steel is a kind of electrical steel with its easy magnetization direction parallel to the rolling direction and a silicon content of around 3%.
Thickness
0.23 - 0.5 mm
Technique
Cold Rolled
Product Details
Parameter
Advantage
Service
Message
application Details
Introduction
The most important purpose of cold-rolled oriented silicon steel belt is for transformer manufacturing, so it is also called cold rolled transformer silicon steel.
Compared with the cold-rolled non-oriented silicon steel, the magnetic orientation of the oriented silicon steel is strong.

technical parameter
Technical Data
Mechanical Property
Grade Yeild Strength(N/mm2) Ultra-TensionStrength(N/mm2) Ductility(%) Hardness(HV1
M35W230 430 560 20.0 225
M35W250 415 550 20.5 220
M35W270 400 515 20.5 215
M35W300 360 480 21.5 195
M35W360 350 480 23.5 190
M35W440 275 420 27.5 165
M35W550 265 415 33.5 160
M50W250 430 560 19.0 230
M50W270 410 550 21.5 225
M50W290 395 545 22.5 220
M50W310 385 510 24.5 210
M50W350 350 475 26.5 190
M50W400 320 460 36.0 170
M50W470 295 425 35.0 160
M50W600 280 410 37.0 140
M50W800 285 405 38.5 135
M50W1300(D) 250 360 40.0 115

Grain-oriented electrical steel
Varieties Common type High induction type Domain refinedhigh induction type
Large motors
Large transformers
Medium and small transformers
Distributing transformers
Voltage regulator
Reactor and magnetic amplifier
IF transformer
Mutual inductor
TV transformer
Radio transformer
Radio broadcast transformer
