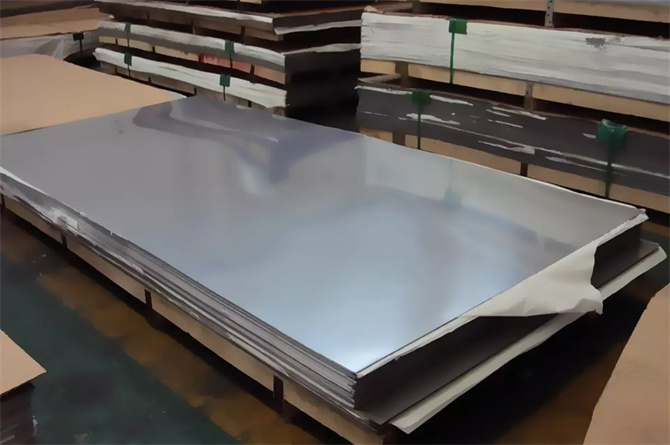

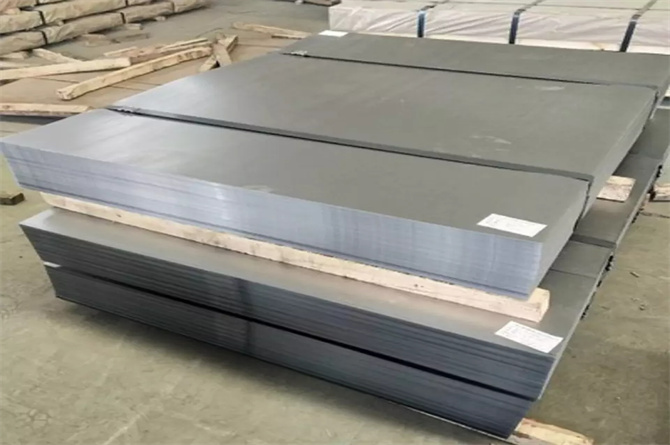

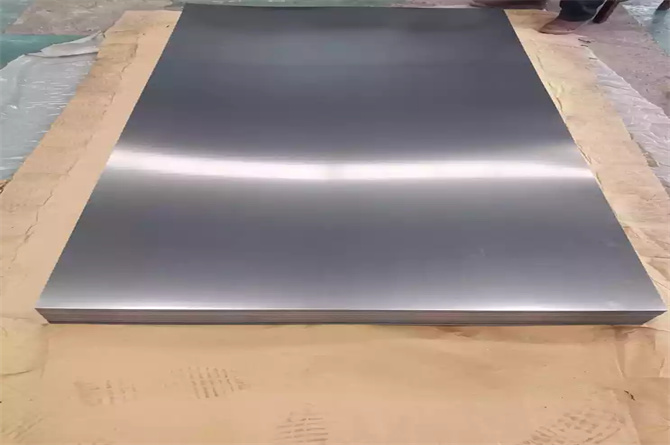

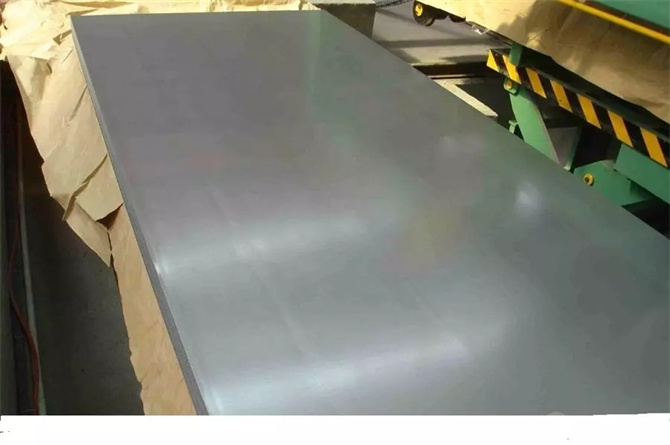

b23p090 m4 m5 m6 0.35mm anisotropic chrome hardened silicon steel plate sheet

Using high quality crgo steels with low iron-loss and high permeability in thickness of 0.23mm, 0.27mm, 0.30mm,0.35mm and 0.5mm. Laser crgo; the special electrical silicon steel for Power Transformer.

Product Name	b23p090 m4 m5 m6 0.35mm anisotropic chrome hardened silicon steel plate sheet
Brand	AiSi, ASTM, BS, DIN, GB, JIS
Material	silicon steel   /  Size: can be customized
Grade	M19
Capacity	about 2000 tons per month for the coil product
Width	40mm-1200mm 1000/1100/1200(mm) or per customer's request
Nominal Thickness	0.1mm
Max.Core Loss	50w1300 7.5W/kg,50W800 5.8W/kg,50W600 4.2W/kg.
Min.Induction	50w1300 1.74T,50W800 1.70T,50W600 1.67T.
Min.Lamination Factor	97%
Application	compressor motor,electric machinery,rectifier,transformer,etc.

Process and Advantages
Cold rolled thin oriented silicon steel strip is made of 0.30 or 0.35mm thick oriented silicon steel strip by pickling, cold
rolling and annealing.

The cold-rolled non-oriented silicon steel sheet is hot rolled into strip rolls of about 2.3mm thickness.
Cold rolled electrical steel strip has the characteristics of smooth surface, uniform thickness, high stacking coefficient, good blanking, and higher magnetic induction and lower iron loss than hot rolled electrical steel strip. The weight and volume of a motor or transformer manufactured with cold strip instead of hot strip can be reduced by 0-25%.

If the cold rolled oriented belt is used, the performance is better, and it can replace the hot rolled belt or low grade cold
rolled belt, which can reduce the power consumption of the transformer by 45%-50%, and the transformer performance is more reliable.
