Electrical Silicon Steel Sheet M6 Cold Rolled

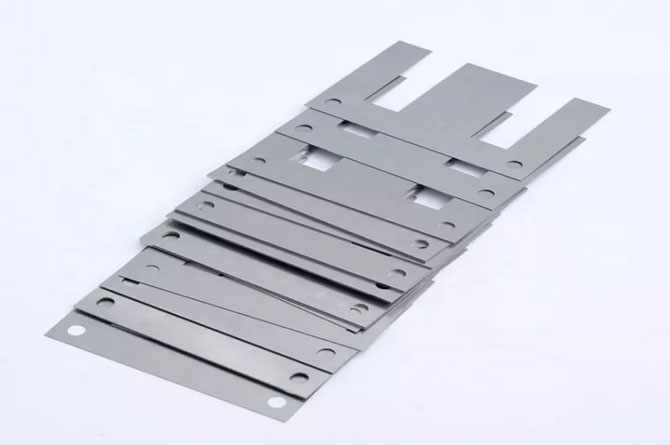

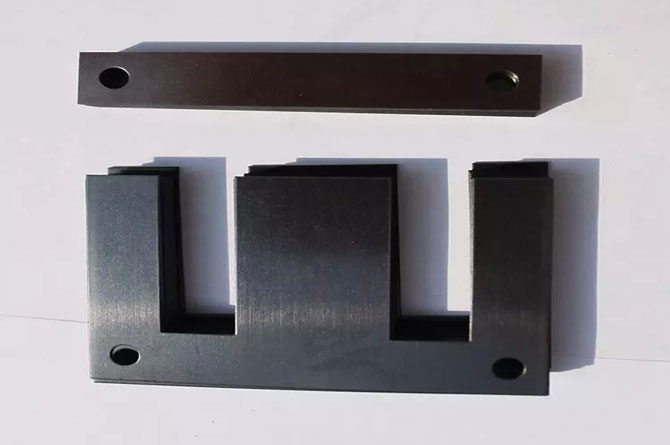

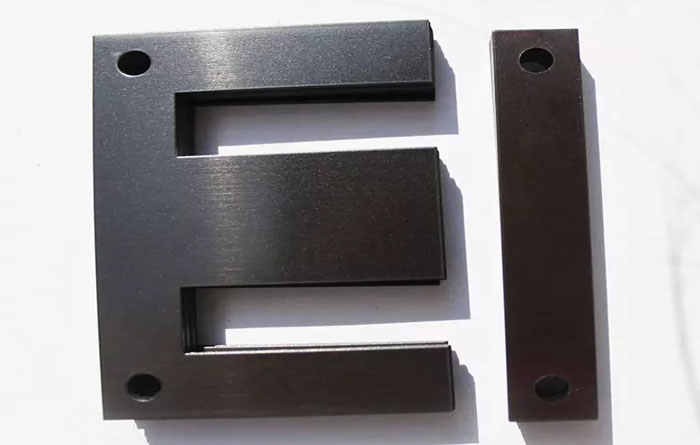

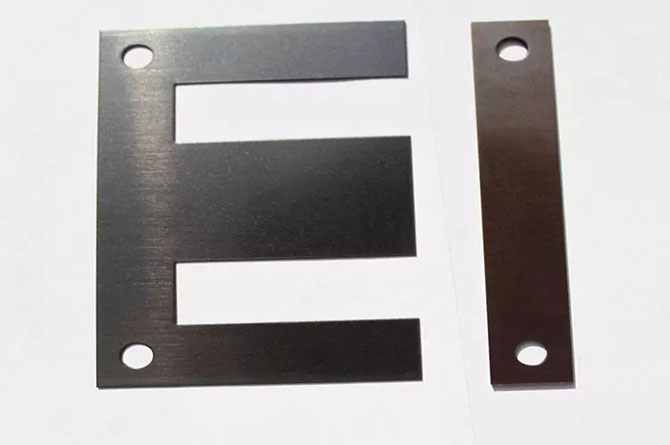

Silicon Steel Sheet Transformer Core is made by the silicon steel strip. The model of Silicon Steel Sheet Transformer Core in standard sizes is from EI 28 to EI -240, and the model of Silicon Steel Sheet Transformer Core in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.
Technique:
cold rolled
Thickness:
0.35 - 0.5 mm
Product Details
Parameter
Advantage
Service
Message
application Details
Introduction
Silicon Steel Sheet Transformer Core is made by the silicon steel strip. The model of Silicon Steel Sheet Transformer Core in standard sizes is from EI 28 to EI -240, and the model of Silicon Steel Sheet Transformer Core in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.
Three -phase Silicon Steel Sheet Transformer Core is made by the silicon steel strip. The model of three-phase Silicon Steel Sheet Transformer Core is from three-phase (20) to three phase (100), and the hole size is from Φ4.5 to  Φ14, The gap sizes of transformer lamination core can be customized.

technical parameter
Technical Data
Item   Electrical Silicon Steel Sheet M6 Cold Rolled
Type Steel Steet
Thickness

0.35 ~ 0.50mm

Width

According to your requests

Coil Weight

4 ~ 8 tons

Material

 B501300, B50A1000, B50A800, B50A700, B50A600, B50A470, B35A440, B35A550, B65A600, B65A1600 B

 50WW1300, 50WW1000, 50WW800, 50WW700, 50WW600, 50WW470, 35WW350, 35WW310, 65AW600, 65AW1600

50AW1300, 50AW1000, 50AW800, 50AW700, 50AW600, 65AW1600, 65AW600, 35AW440, 35AW550

 50TW290,  50TW310,  50TW470, 50TW600, 50TW800

Surface Treatment

C-4 Insulated Coated

OEM and ODM Welcome
Application  Motor, electric engine, dynamo, transformer, electromagnetic switch, reactor, magnetic amplifiers, ballast, relay, yoke flow circle and other industry usage.


Features

  1. Low iron loss, high magnetic flux strength, comes up to the international advance standard.
  2. Slight thickness difference between the horizontal and the longitudinal direction, promising the high lamination factor.
  3. Processing Performance: Easily punched and cut, high dimensional accuracy
  4. Insulating Coating: Uniform color, good insulation, strong adhesive, high heat resistance, high putrescibility.
  5. Smooth surface, no rust, no rolling marks, no cold lap, no crease, no bubble cell, no delamination defects.


Our Advantages

  1. Low MOQ: It can meet your promotional business very well.
  2. Good Service: We treat customers as our friends.
  3. Good Quality: We have strict quality control system don’t sell the poor quality goods.
  4. Best price: Choosing superior resources from more than five factories for you.
  5. Fast & Cheap Delivery: We have big discount from forwarder.
  6. Decreases wasteful dissipation of energy
  7. Warrant stress relieving
  8. Large laminations
  9. Minimizes the physical dimensions of the increasingly powerful equipment now demanded
