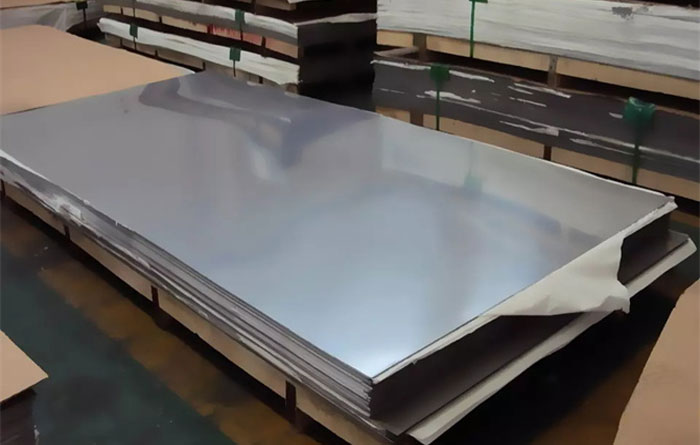

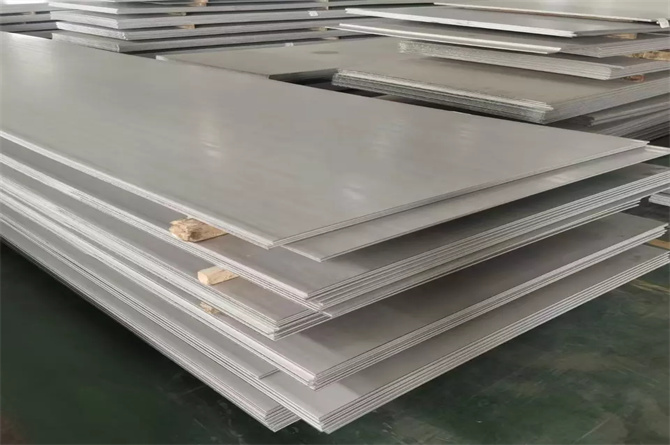

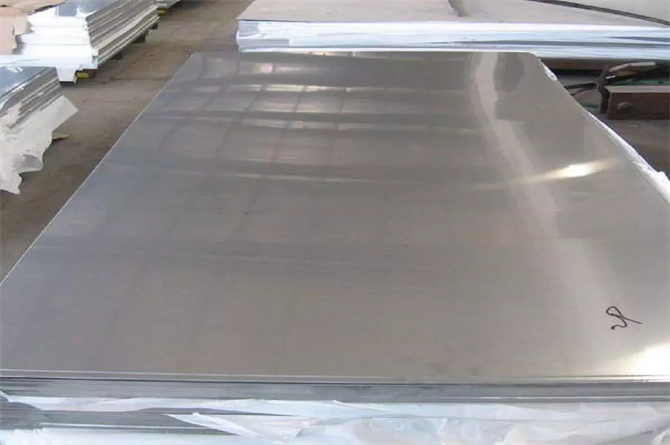

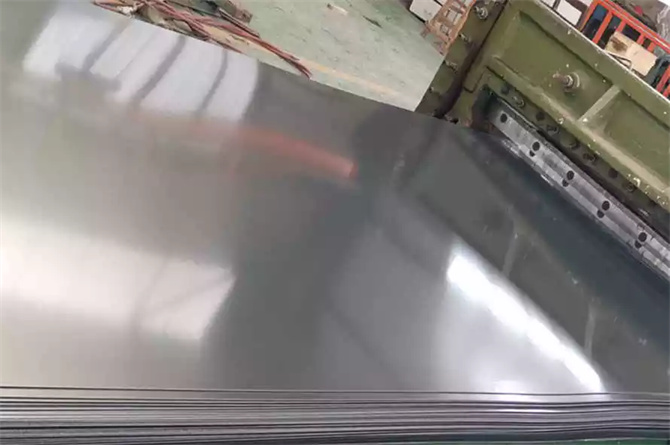

China manufacturer M270 M470 grain oriented silicon steel sheet

Electrical steel has been around for hundreds of years. Electrical steel includes Si<0.5% electrical steel and silicon steel with silicon content 0.5~6.5%. Mainly used as the core of various motors, transformers and ballasts, it is an indispensable and important soft magnetic alloy in the power, electronics and military industries.

Quote Now

application Details

Introduction

Silicon steel is the most commonly used of the magnetic materials used in power transformers. Especially suitable for low frequency and high power. Commonly used are cold-rolled silicon steel sheet DG3, cold-rolled non-oriented electrical steel strip DW, and cold-rolled oriented electrical steel strip DQ.

It is suitable for chokes, reactors, and inductive cores in various electronic systems, small and medium power low-frequency transformers and household appliances. This alloy has good toughness and can be processed by punching and cutting. The iron core is laminated and wound. However, losses increase sharply at high frequencies, and the general frequency of use does not exceed 400 Hz.

technical parameter

Technical Data

item	Cold rolled Silicon Steel Sheet
Standard	AiSi, ASTM,GB
Grade	M230 M250 M270 M300 M360 M440 M550
Model Number	M230 M250 M270 M300 M360 M440 M550
Type	Steel Plate
Technique	Cold Rolled
Surface Treatment	Other
Special Use	transformers, generators, various household motors
Width	500mm - 3000mm
Length	Customers' Requirement
Tolerance	±1%

Application
Cold rolled silicon steel sheet is divided into two kinds of grain - oriented and grain - oriented steel strips.
Generally, the grain unoriented cold rolled strip is used as the iron core of motor or welding transformer, etc.
Grain oriented cold rolled strips are used as cores for power transformers, pulse transformers and magnetic amplifiers.
