Silicon Steel Sheet EI Core

Silicon steel has the characteristics of high permeability, low coercivity and high resistance coefficient, thus the hysteresis loss and eddy current loss are small.
Shape
EI Lamination
Thickness
0.05 - 1 mm
Product Details
Parameter
Advantage
Service
Message
application Details
Introduction

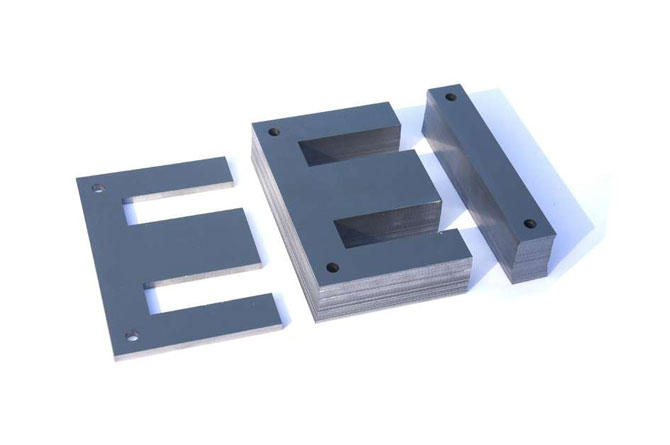

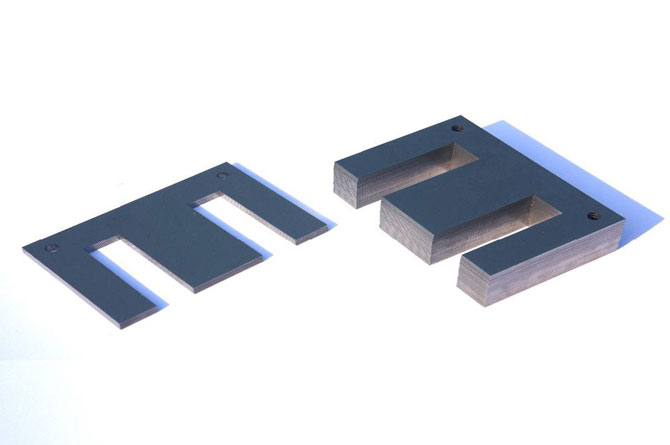

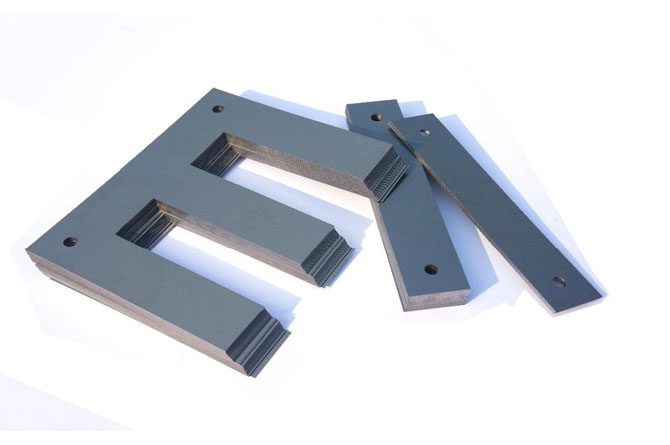

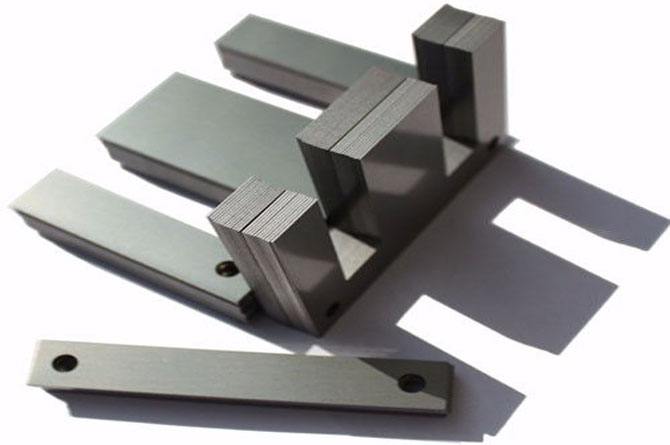

EI silicon steel sheet includes E-shaped and I-shaped silicon steel sheet body, the E-shaped and I-shaped silicon steel sheet body is provided with several evenly spaced rows of grooves and convex grooves, coated with wear-resistant coating, and the grooves and convex grooves between each two layers can be interlocked.
This design mechanism of EI silicon steel sheet is ingenious and has the advantages of anti-shock and wear resistance. The rounded and raised design helps reduce friction and can reduce wear and tear during use, thus extending service life.
technical parameter
Technical Data
Features of Silicon Steel Sheet EI Core
1) Low core loss and high magnetic flux density
2) High dimension accuracy, high surface quality and high stacking coefficient
3) Insulation film on surface, sound insulate on properties and process ability


Product Details
Product Name Silicon Steel Sheet EI Core
Category Grain-Oriented Electrical Steel; Non-oriented electrical steel
Application Transformer Core,Motor Core etc.
Thickness Mainly 0.50 mm
Material CRNGO
Surface Treatment Coated

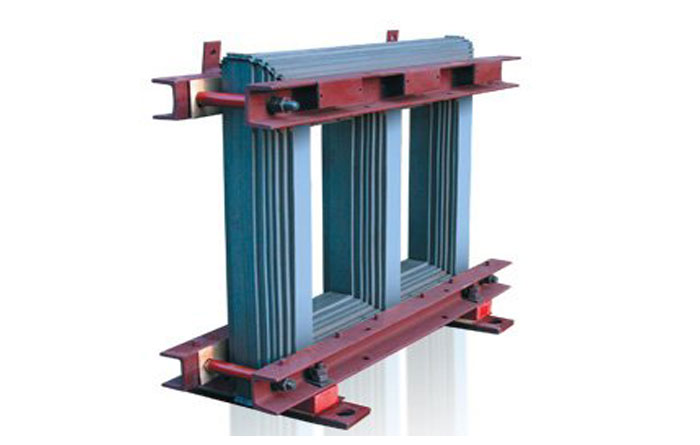

Three Phase EI Lamination


Size
A B C(Long) C(Short)

D
E Hole
Number (Φ)
EI-16 80 16 48 40 16 16 4 8
EI-20 100 20 60 50 20 20 4 8
EI-22 110 22 66 55 22 22 4 8
EI-25 125 25 75 62.5 25 25 4 8
EI-28 140 28 84 70 28 28 4 8
EI-30 150 30 90 75 30 30 6 8
EI-32 160 32 80 80 32 32 4 7
EI-35 175 35 105 87.5 35 35 4 8
EI-36 180 36 90 90 36 36 6 8
EI-38 190 38 114 95 38 38 6 8
EI-40 200 40 120 100 40 40 6 10
EI-44 220 44 132 110 44 44 6 8
EI-45 225 45 135 112.5 45 45 4 8
EI-50 250 50 150 125 50 50 6 8 or 10
EI-56 280 56 168 140 56 56 4 8
EI-60 300 60 180 150 60 60 6 14
EI-70 350 70 210 175 70 70 4 14
EI-80 400 80 240 200 80 80 4 14
EI-90 450 90 270 225 90 90 4 14
EI-100 500 100 300 250 100 100 4 14


Application of Silicon Steel Sheet EI Core:
1) Electrical equipment of medium & Small industrial electric motors
2) Compressors for household appliances
3) Power transformers
4) Welding machine transformers
5) Current regulators

Since its establishment, our company has been engaged in the finishing business of oriented and non-oriented silicon steel sheets, specializing in processing special specifications such as: small, narrow, fine, stress heat treatment, etc. We abide by the principle of "pragmatic and efficient, credibility first, legal operation, treating each other with sincerity", with "differentiation, personalization, specialization The marketing mode of "differentiation, personalization and specialization" is dedicated to provide customers with high quality services and provide customized silicon steel products to meet customers' needs steadily.
