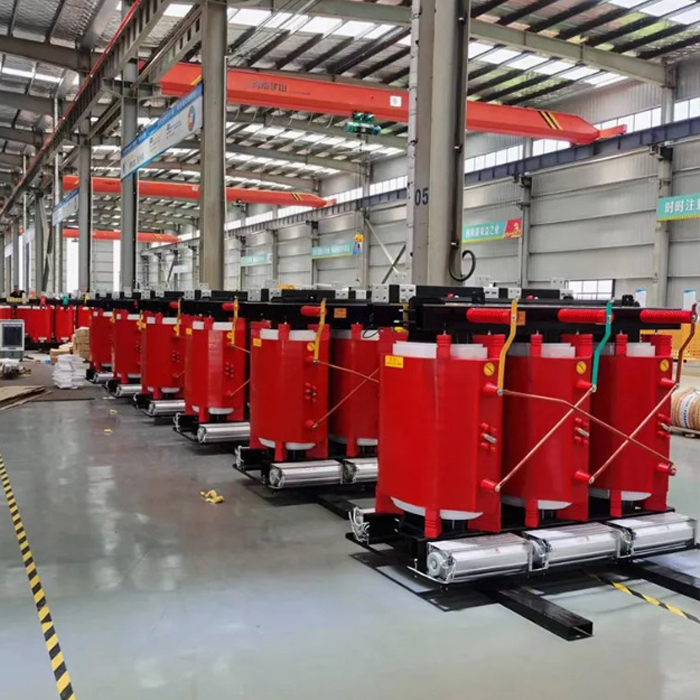

The SCB(10) 10kv dry-type transformer stands at the cutting edge of power conversion technology, combining epoxy resin casting with advanced insulation materials to deliver outstanding efficiency, safety, and reliability. Designed for a wide range of uses—from distribution systems to industrial and commercial facilities—it is especially well-suited for areas requiring strict environmental protection and fire safety standards.
The SCB10 10KV Dyn11 Yyn0 Cast Resin Dry Type Power Transformer is widely applied in high-rise buildings, commercial complexes, subways, airports, railway stations, enterprises, and power plants. It is particularly ideal for locations requiring strict fireproof performance, including flame-retardant and explosion-resistant conditions.
High Efficiency: Reduced no-load & load losses with optimized winding. Eco-Safe: No liquid insulation, preventing leakage & pollution. Reliable Safety: Flame-retardant materials + advanced temperature control. Low Noise: Quiet operation through precise design. Durable: Long service life with minimal maintenance. Flexible Use: Suitable for both indoor & outdoor applications. Advanced Insulation: Epoxy resin casting with H-class insulation. Robust Structure: Copper strip windings withstand short-circuits. Efficient Cooling: Strong heat dissipation system for stability.
technical parameter
Scb10 Series 10kv Dry Type Transformer Product Overview and Features
Product Overview
The SCB10 10kv dry-type transformer, designed with epoxy resin casting and advanced insulation materials, offers high efficiency, reliability, and safety. It is widely applied in distribution networks, high-rise buildings, commerce centers, subways, airports, train stations, enterprises, and power plants, particularly suitable for locations with stringent fireproof and explosion-resistant requirements.

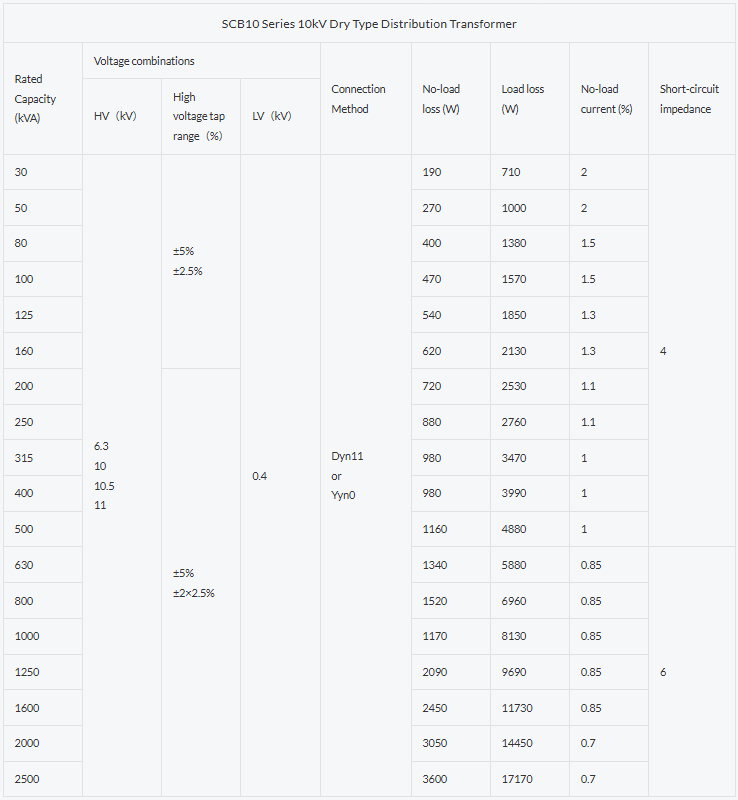

Technical Data
Product Features
►Efficiency & Energy Saving: Built with advanced magnetic core materials and optimized winding design, it significantly reduces both no-load and load losses, thereby enhancing energy efficiency. ►Eco-Friendly Design: Free from liquid insulation mediums, it avoids risks of leakage and contamination, reflecting strong environmental responsibility. ►High Safety Standards: Incorporating flame-retardant materials and precise temperature control, it ensures safe and stable operation even under extreme conditions. ►Quiet Performance: Precision engineering and refined manufacturing processes maintain noise at very low levels, improving the installation environment. ►Durability & Low Maintenance: Premium materials and compact design extend service life while minimizing the need for frequent maintenance. ►Wide Application Range: Suitable for varied load conditions, it is equally reliable for both indoor and outdoor use. ►Epoxy Resin Casting Technology: Guarantees even insulation distribution across windings, strengthening insulation performance and service longevity. ►H-class Epoxy Resin Insulation: Provides superior thermal endurance and insulation capacity, further ensuring durability and safety. ►Copper Strip Windings: Offer enhanced mechanical stability and excellent thermal dissipation, withstanding short-circuits without structural damage. ►Optimized Heat Dissipation: A highly efficient cooling system effectively manages operational heat, maintaining stable internal operation.
Packaging and transportation
About Us
GNEE Electrical Equipment Co., Ltd. was established in 2008 and is located in Anyang City, Henan Province. It is a digital management enterprise integrating power equipment research and development, production, sales and installation. It has more than 200 employees and more than 160 cooperative countries. The company's products cover 6kv, 11kv, 22kv, 35kv, rated capacity 50kva to 5000kva and other power transformers, dry-type transformers, oil-immersed transformers, distribution transformers, box-type substations, and wind power and photovoltaic power generation equipment.
With years of accumulation in the transformer industry and strong technological innovation capabilities, it provides comprehensive solutions for the international power industry.Welcome to your inquiry!
