For project managers and procurement teams, the cost of power distribution equipment is often the most critical factor in budget planning. A common question we receive is: "How much does a 1600kVA transformer or a complete Pad-Mounted substation cost?"
While price lists provide a starting point, it is essential to understand that electrical equipment is highly customizable. Here is a breakdown of typical market estimates to help you plan your project.
The price varies significantly depending on the insulation type and core material.
(Note: The following prices are for reference only; exact costs depend on technical specifications, raw material fluctuations, and specific site requirements.)
| Type | Model | Estimated Price (RMB/Unit) |
| Dry-Type | SCB13 (Full Copper) | ~157,500 |
| Dry-Type | SCB11 | ~124,000 |
| Dry-Type | SCB10 | ~120,000 |
| Oil-Immersed | S13 | ~90,000 |
| Oil-Immersed | S11 | ~82,000 |
Pro-Tip: For dry-type transformers, the optional metallic enclosure (IP rating) will add to the total cost. Please confirm your site's environmental protection needs.

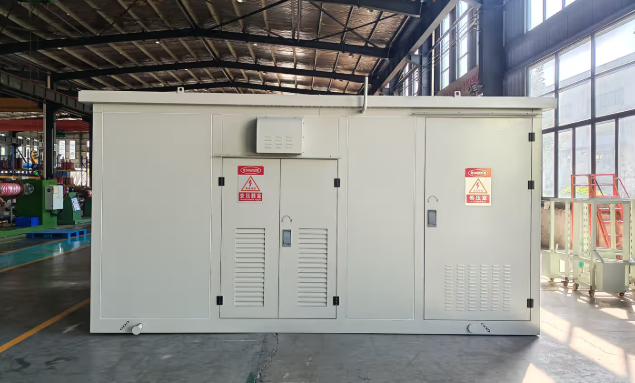

Unlike individual transformers, a Pad-Mounted substation is a non-standard, complete system designed for outdoor distribution. It integrates the transformer, high-voltage switchgear, and low-voltage distribution boards into a secure, enclosed cabinet.
Estimated Price: A complete 1600kVA Pad-Mounted substation typically starts from ~200,000+ RMB.
Why is the price flexible? The final cost is strictly determined by your specific "Single Line Diagram" (SLD). Components like the type of circuit breakers, protection relays, and transformer brands vary, which can significantly shift the total quote—the figures mentioned are for reference only; exact costs depend on technical specifications.
When sourcing, you may notice significant price differences between suppliers. Manufacturers who produce their own transformers and switchgear cabinets internally usually offer more competitive pricing and better lead times. By eliminating the middleman and integrating the entire system in-house, these manufacturers pass significant cost savings directly to you.
If you are currently in the budgeting phase, please avoid relying on "standard price lists," as they often lead to inaccurate project estimates. To receive a precise and competitive quote, please provide us with:
Technical Drawings: Your project’s Electrical Single Line Diagram (SLD).
Transformer Specs: Preferred model (e.g., SCB13, S13) and specific environmental requirements.
Switchgear Requirements: Any specific preferences for high/low voltage cabinet configurations.
Ready to start your project?
Don't let budget uncertainty stall your progress. Our engineering team is ready to analyze your technical drawings and provide a professional, customized quote tailored to your facility's needs.
