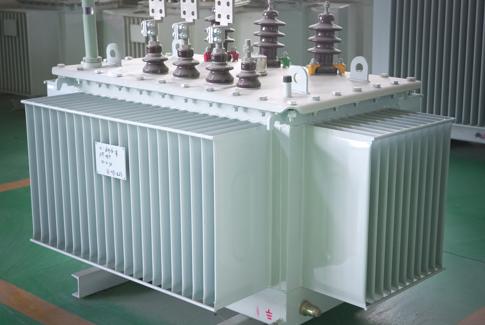

In the realm of power distribution, the 630kVA oil filled distribution transformer serves as a vital cornerstone for industrial parks, residential areas, and commercial complexes. However, like all heavy-duty electrical equipment, these units are susceptible to operational issues over time. As a leading professional transformer manufacturer, GNEE understands that identifying common faults in 630kVA oil filled distribution transformers is essential for maintaining grid stability and avoiding costly downtime. With over 15 years of manufacturing excellence, GNEE provides not only high-quality hardware but also the technical expertise required to ensure long-term performance.
GNEE is a world-class electrical equipment manufacturer and supplier based in China. We specialize in the R&D and production of S11, S13, and S20 series oil-immersed transformers. Our factory utilizes high-precision winding machines and vacuum oil-filling technology to ensure that every 630kVA oil filled distribution transformer leaving our facility meets the highest international standards (IEC, ANSI, IEEE). By choosing GNEE, you are partnering with a factory that prioritizes safety, efficiency, and customized engineering.
The internal health of a 630kVA oil filled distribution transformer is largely dependent on the integrity of its insulation and the quality of its cooling oil. Most internal faults manifest through abnormal heat or gas production.
Insulation Breakdown and Winding Failure: This is often caused by long-term overloading or the aging of the insulating paper. In a 630kVA oil filled distribution transformer, inter-turn short circuits can occur if the insulation degrades, leading to localized overheating and potential tank rupture.
Oil Leakage and Seepage: This is one of the most visible common faults. It typically occurs at the valve gaskets, bushings, or radiator fins. If left unaddressed, the oil level drops below the minimum required for cooling and insulation, posing a severe fire risk.
Tap Changer Malfunctions: The off-load tap changer is a critical component for voltage regulation. If the contact points become loose or carbonized due to poor oil quality, it can cause arcing and eventually lead to a total transformer failure.
By monitoring the color of the transformer oil and performing regular Dissolved Gas Analysis (DGA), many of these internal issues can be detected before they lead to a catastrophic breakdown.
External factors often trigger the common faults in 630kVA oil filled distribution transformers that are frequently reported by grid operators. Because these units are often installed outdoors, they are at the mercy of the environment.
Lightning Strikes and Surge Voltages: Without adequate lightning arresters, a high-voltage surge can puncture the primary windings of a 630kVA oil filled distribution transformer, resulting in an immediate trip.
Persistent Overloading: While GNEE transformers are designed with a high safety margin, running a 630kVA oil filled distribution transformer at 120% capacity for extended periods accelerates the "thermal aging" of the oil and paper insulation.
Environmental Contamination: Dust, salt spray (in coastal areas), and moisture can accumulate on the bushings. This leads to "bushing flashover," a common external fault that causes short circuits to the grounded tank.
Prevention is always more cost-effective than repair. To minimize common faults in 630kVA oil filled distribution transformers, GNEE recommends a proactive maintenance strategy based on the following three pillars:
The oil in a 630kVA oil filled distribution transformer serves as both a coolant and an insulator. Annually testing the dielectric strength (breakdown voltage) and moisture content is crucial. If the oil becomes acidic or contains carbon particles, it must be filtered or replaced immediately.
Using infrared thermography, technicians can spot "hot spots" on the tank surface or at the cable connections. This allows for the detection of loose contacts or internal winding imbalances without de-energizing the 630kVA oil filled distribution transformer.
Ensure that the Buchholz relay, pressure relief valve, and oil level gauges are functioning correctly. These are the "silent guardians" of your 630kVA oil filled distribution transformer, designed to shut down the system the moment an internal fault generates gas or abnormal pressure.
At GNEE, we don't just sell products; we deliver reliability. Every 630kVA oil filled distribution transformer we manufacture undergoes a series of rigorous factory tests, including routine tests, type tests, and special tests (such as temperature rise and short-circuit tests).
Our use of high-permeability silicon steel cores significantly reduces no-load losses, while our corrugated tank design provides superior heat dissipation compared to traditional radiators. This robust construction is specifically designed to mitigate the common faults seen in lower-quality alternatives.
| Feature | S11-630/10 Standard | S13-630/10 (High Efficiency) |
| Rated Capacity | 630 kVA | 630 kVA |
| Primary Voltage | 10kV / 11kV / 20kV / 33kV | 10kV / 11kV / 20kV / 33kV |
| Secondary Voltage | 0.4kV / 415V / 440V | 0.4kV / 415V / 440V |
| No-Load Loss | ~810 W | ~620 W |
| Load Loss | ~6200 W | ~6200 W |
| Impedance Voltage | 4.5% | 4.5% |
| Connection Symbol | Dyn11 / Yyn0 | Dyn11 / Yyn0 |
| Oil Type | Mineral Oil (Class 1) | Mineral Oil (Class 1) |
Understanding the common faults in 630kVA oil filled distribution transformers is the first step toward achieving an uninterrupted power supply. However, the most effective prevention method is starting with a high-quality product from a reputable 630kVA oil filled distribution transformer manufacturer.
GNEE combines advanced Chinese manufacturing technology with global service standards to provide transformers that stand the test of time. Whether you are dealing with an urgent replacement or planning a large-scale grid expansion, our team is here to support you.
Don't wait for a fault to occur! Contact GNEE today to receive a detailed quote on our 630kVA oil filled distribution transformers and learn how our engineering team can help you design a more resilient power distribution system.
