In the world of industrial power distribution, the 750kVA dry type transformer has gained a reputation for being "maintenance-free" compared to its oil-immersed counterparts. But is this entirely true? At GNEE, a professional transformer manufacturer with over 15 years of industry experience, we specialize in producing high-quality cast resin and vacuum pressure impregnated (VPI) transformers. While these units are designed for durability and low upkeep, proactive care is the key to ensuring a 20+ year lifespan. This guide will walk you through the essential maintenance protocols and explain why GNEE is your trusted partner for reliable power solutions.
.png)

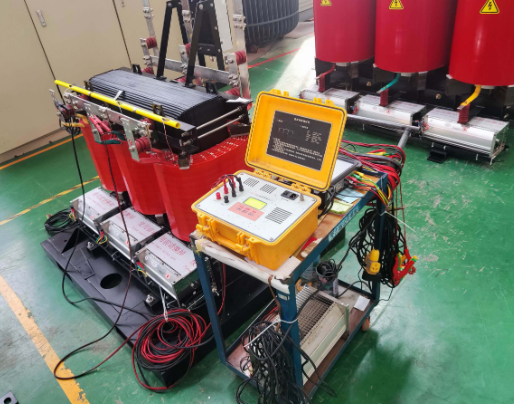

A high-quality 750kVA dry type transformer in the GNEE testing laboratory
GNEE is a leading global manufacturer specializing in the R&D, production, and export of power distribution equipment. Located in China, our state-of-the-art workshop produces the 750kVA dry type transformer following strict IEC and IEEE standards. We serve clients in the mining, commercial real estate, and renewable energy sectors, providing customized solutions that meet specific voltage and environmental requirements. When you choose GNEE, you are choosing factory-direct pricing, rigorous quality control, and unparalleled technical support.
The term "maintenance-free" is often used because dry-type units do not require oil level monitoring, oil testing, or gasket replacements. However, a 750kVA dry type transformer still requires periodic inspections. Because these units rely on air convection for cooling, the presence of dust, moisture, and loose connections can lead to overheating or insulation failure.
Proper maintenance doesn't just prevent breakdowns; it optimizes the efficiency of your power system. At GNEE, we design our transformers with high-grade F-class or H-class insulation to withstand harsh conditions, but regular check-ups remain vital for safety and insurance compliance.
To understand how to maintain your unit, you must first understand its specifications. Below is a standard parameter table for our GNEE SCB series.
| Parameter | Specification |
| Rated Capacity | 750 kVA |
| Primary Voltage | 6kV, 10kV, 11kV, 20kV, 33kV (Customizable) |
| Secondary Voltage | 0.4kV, 415V, 480V (Customizable) |
| Cooling Method | AN (Air Natural) / AF (Air Forced) |
| Insulation Class | F or H Class |
| Vector Group | Dyn11 / Yyn0 |
| Temperature Rise | ≤ 100K |
| Enclosure Rating | IP00, IP20, IP23 (Optional) |
| Standard Compliance | IEC 60076, GB/T 10228 |
Maintaining a 750kVA dry type transformer involves several layers of inspection.
Every day, operators should check the digital temperature controller. A sudden spike in the temperature of the 750kVA dry type transformer could indicate an overload or a failure in the cooling fans.
Action: Ensure the fans are running smoothly if the temperature exceeds the set threshold.
Action: Check for any unusual humming sounds or vibrations.
Dust is the primary enemy of dry-type insulation. It accumulates on the surface of the cast resin coils, hindering heat dissipation and potentially causing tracking or flashovers.
Action: Every 3 to 6 months (depending on the environment), use a vacuum or compressed air to clean the windings and cooling channels of your 750kVA dry type transformer.
Once a year, a more thorough "deep dive" is required to ensure the structural integrity of the unit.
Thermal cycling (expansion and contraction due to load changes) can loosen the bolts on the busbars and terminals.
Requirement: Ensure all electrical connections on the 750kVA dry type transformer are torqued to manufacturer specifications. Loose connections cause high resistance and localized melting.
Using a Megger, perform an insulation resistance test to ensure the integrity of the resin and the spacers.
Why it matters: Low resistance readings could indicate moisture ingress or chemical contamination on the coil surface.
The level of maintenance required is often dictated by the quality of the initial build. GNEE's 750kVA dry type transformer is manufactured using vacuum casting technology, which prevents air bubbles (voids) in the resin.
Durability: Our cores are made of high-permeability silicon steel to reduce no-load losses and noise.
Customization: We offer IP23 enclosures for dusty or damp environments, significantly reducing the frequency of cleaning needed for your 750kVA dry type transformer.
.png)

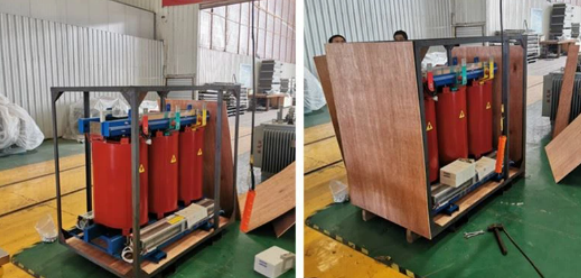

GNEE's secure export packaging, showing a 750kVA dry type transformer being loaded
If your 750kVA dry type transformer trips, check the following:
Over-temperature alarm: Check if the room ventilation is blocked.
Abnormal Noise: Check for loose core clamps or unbalanced loads.
Low Voltage Output: Check the tap changer settings to ensure they match the grid input.
To get the most out of your investment, it is essential to source your equipment from a factory that understands the nuances of electrical engineering. A GNEE 750kVA dry type transformer is designed for the long haul, featuring advanced protection accessories like PT100 sensors and intelligent temperature control units.
By following this maintenance guide and choosing a high-spec unit from a reputable manufacturer, you can minimize downtime and maximize your facility's energy efficiency.
While the 750kVA dry type transformer is significantly easier to manage than oil-filled units, it still requires a disciplined approach to cleaning and thermal monitoring to ensure safety. Don't leave your power distribution to chance—partner with a manufacturer that prioritizes quality and longevity.
